Dongfeng 4x2 bitumen distributor with 8cbm capacity for sale
- 500 Set / Sets per Month
- Usually Shanghai port or any other ports in China as your request
- T/T L/C D/P D/A Credit Card PayPal
-
Perkins/CAT Engine 246B 248B 262B 277B Skid Loader 62KW/2500RPM
-
Advanced Portable Water Well Drilling Rig 760kg Mud Drilling Capability
-
Water Well Drilling Machine With 150 Meters Depth And Large Hole Diameter
-
220V / 380V Water Well Drilling Machine / HZ 200 M Mine Borehole Rock Drill Rig
-
High Efficiency Water Well Drilling Rig XY-3 300m Depth For Geothermal Exploration
-
Auto Balancing Turnover Spreader Beam for Car Frame/Chassis/Trailer/Flatbed Turning
Product Details
Place of Origin: | Hubei, China | Brand Name: | Dongfeng | Model Number: | CLW5161GLQT4 |
After-sales Service Provided: | Overseas service center available |
Product Description

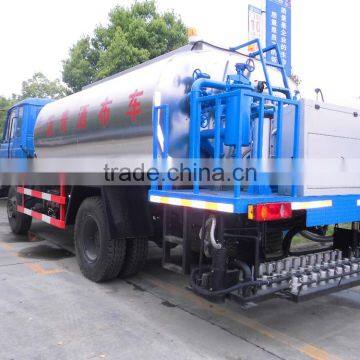

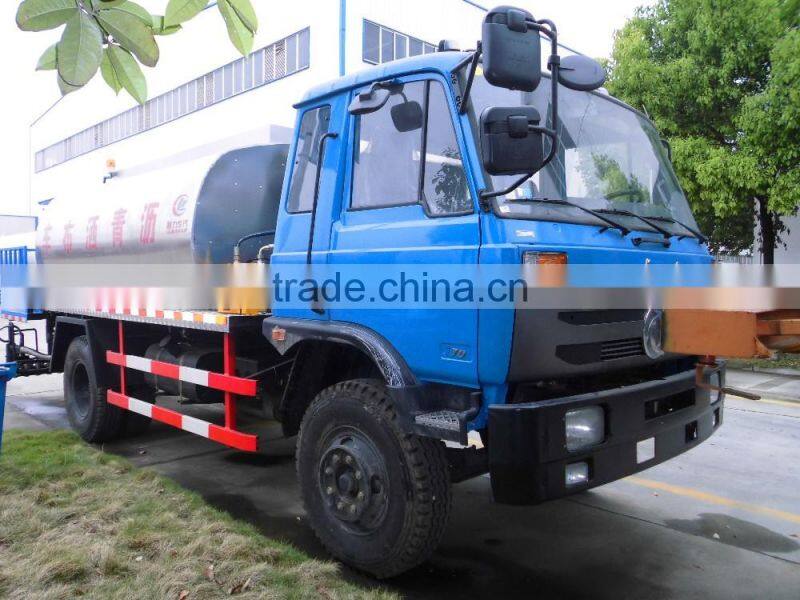

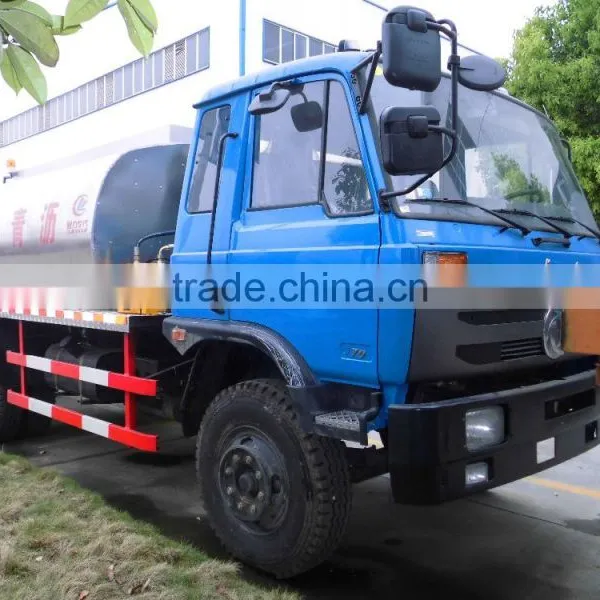

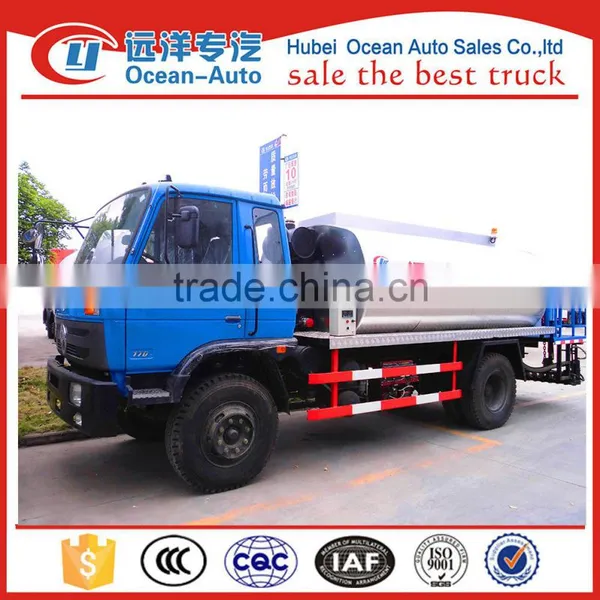

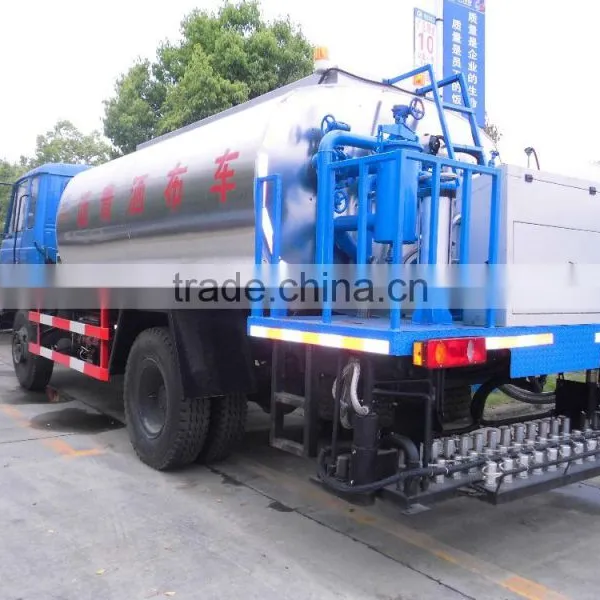

Dongfeng 4x2 bitumen distributor with 8cbm capacity for sale
Truck introduction & Function:
The bitumen distributor truck consist of chassis, asphalt tank, asphalt pump , spray system, hot oil heating system, hydraulic system, burning system, control system, pneumatic system and operational platform. It is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It is widely used in highway, urban road, airport and wharf.
No. | Name | Technical specification | Remarks |
1 | Chassis | EQ1160GKJ1 | Dongfeng |
2 | Engine | ISB170 40 | Dongfeng |
3 | Displacement / Power | 5900ml/125kw |
|
4 | Emission standard | Euro III |
|
5 | Fuel type | Diesel |
|
6 | Wheelbase | 3950mm |
|
7 | Tire specification | 9.00-20 |
|
8 | Gross weight | 15990 kg |
|
9 | Payload | 7300 kg |
|
10 | Curb weight | 8495 kg |
|
11 | Asphalt Tank volume | 8000 L |
|
12 | Hydraulic pump | CBQ550-L | Made in China |
13 | Asphalt pump hydraulic drive pump | 05-110-BD31 | Made in China |
14 | relief valve , reversing valves | Made in China | Made in China |
15 | proportional valve | EFBG-03-160-HF | Made in Taiwan |
16 | Asphalt pump | QGB950 ( max displacement 950L/min) | Made in China |
17 | Burner | G20 | Made in Italy |
18 | Heat-transfer oil pump | 40-25-160
| Made in China |
19 | Control system | Semi intelligent control(Manual:one operation two) |
|
20 | Generator | 6 KW( gasoline generator ) | Honda |
