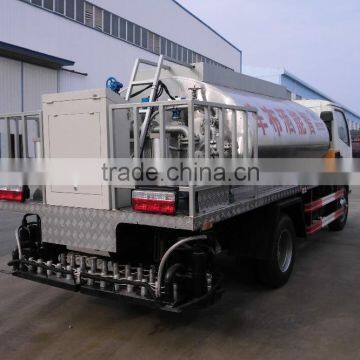

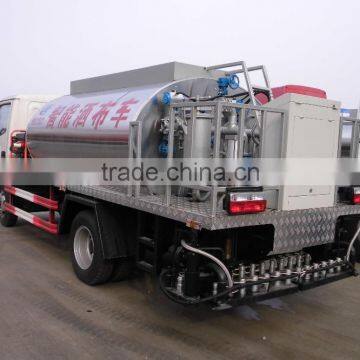

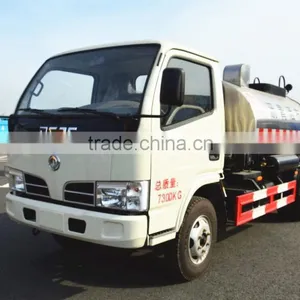

Dongfeng mini 4000liters asphalt distribution truck for sale
Truck introduction & Function:
The bitumen distributor truck consist of chassis, asphalt tank, asphalt pump , spray system, hot oil heating system, hydraulic system, burning system, control system, pneumatic system and operational platform. It is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It is widely used in highway, urban road, airport and wharf.
No. | Name | Technical specification | Remarks |
1 | Chassis | EQ1060TJ20D3 | Dongfeng |
2 | Engine | CY4102-C3F | Dongfeng |
3 | Displacement / Power | 3856ml/70kw |
|
4 | Emission standard | Euro III |
|
5 | Fuel type | Diesel |
|
6 | Wheelbase | 3300mm |
|
7 | Tire specification | 7.00R16 |
|
8 | Gross weight | 6495 kg |
|
9 | Payload | 3000 kg |
|
10 | Curb weight | 3365 kg |
|
11 | Asphalt Tank volume | 4000 L | CLW |
12 | Hydraulic pump | CBQ540-L | Made in China |
13 | Asphalt pump hydraulic drive pump | 05-110-BD31 | Made in China |
14 | relief valve , reversing valves | Made in China | Made in China |
15 | proportional valve | EFBG-03-160-HF | Made in Taiwan |
16 | Asphalt pump | QGB450 ( max displacement 450L/min) | Made in China |
17 | Burner | G10 | Made in Italy |
18 | Heat-transfer oil pump | 40-25-160 | Made in China |
19 | Control system | CLW-39-01 | SIEMENS |

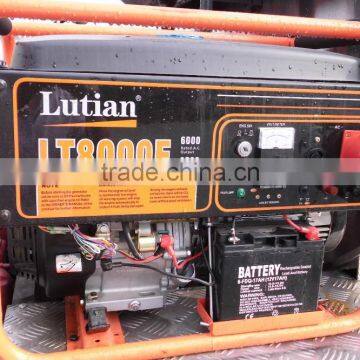

20 | generator | 5.5KW( gasoline generator ) | Honda |
