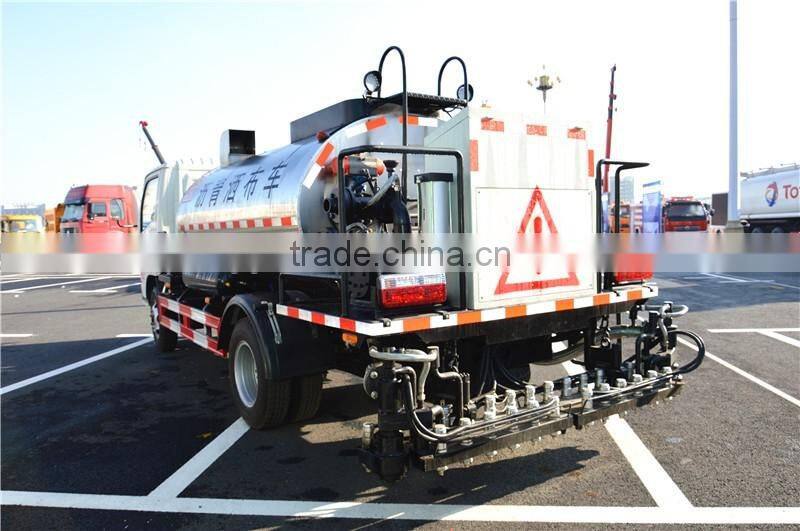

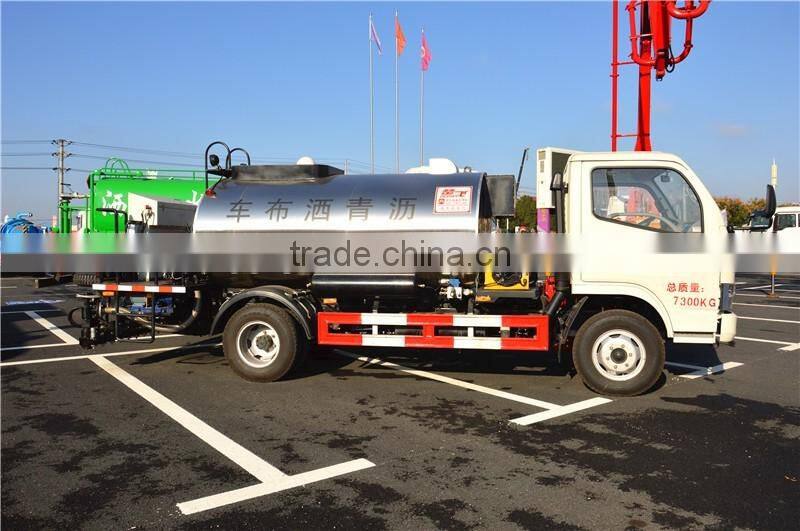

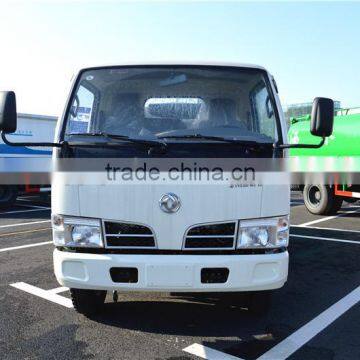

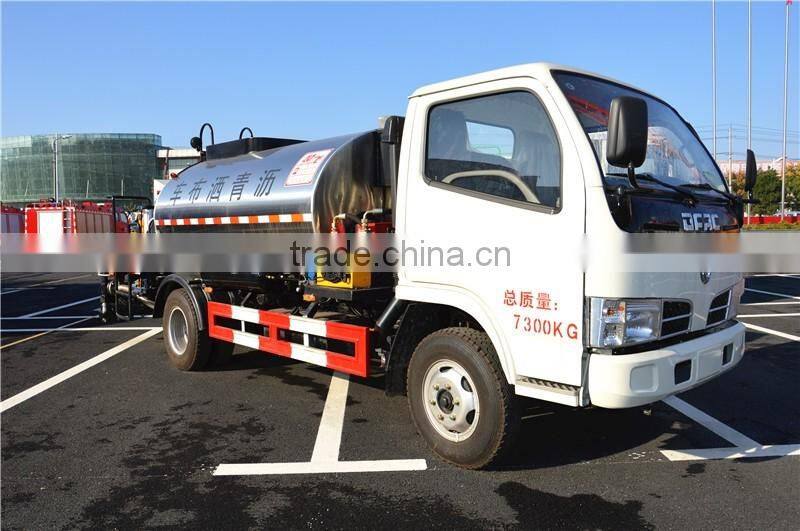

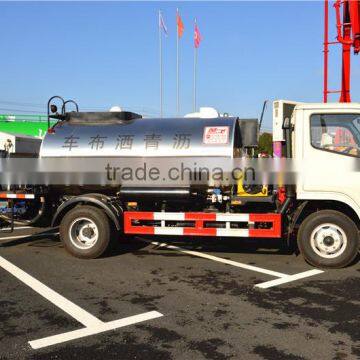

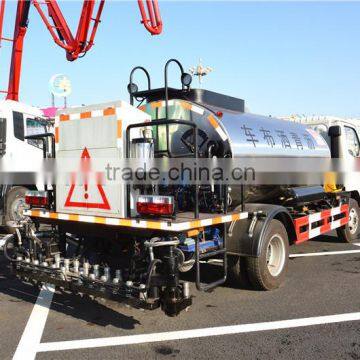

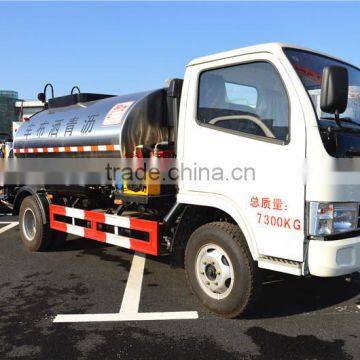

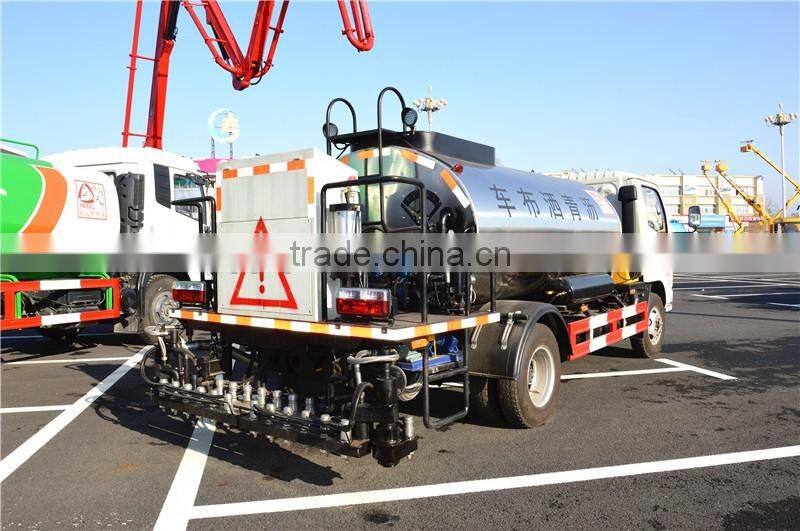

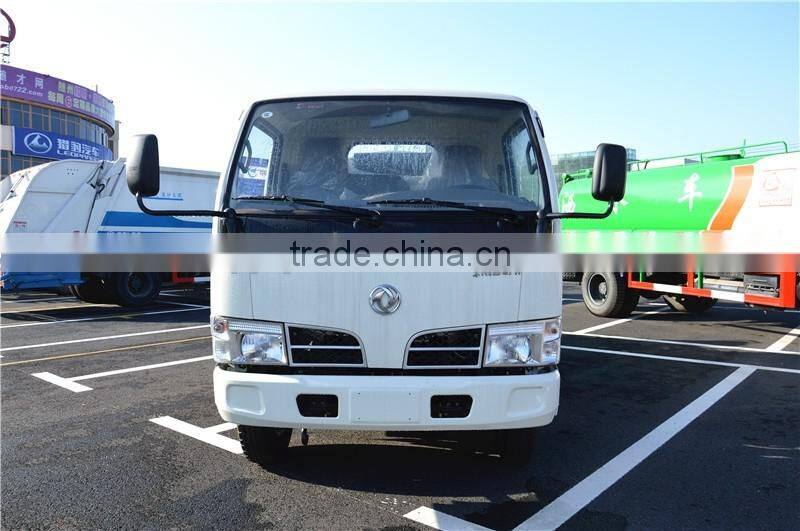

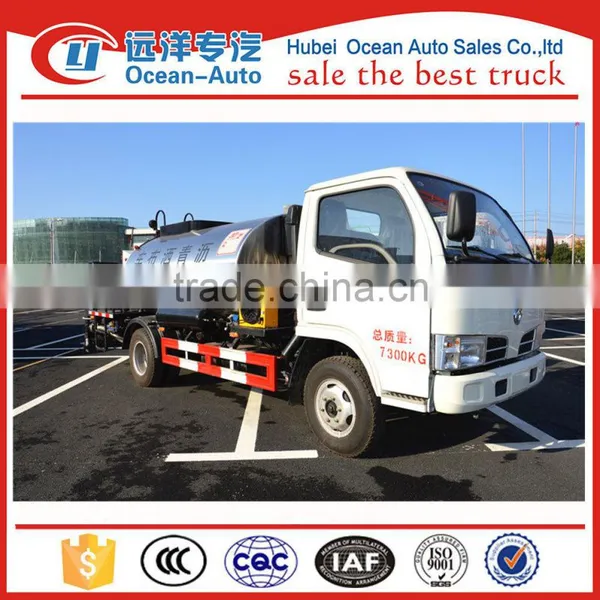

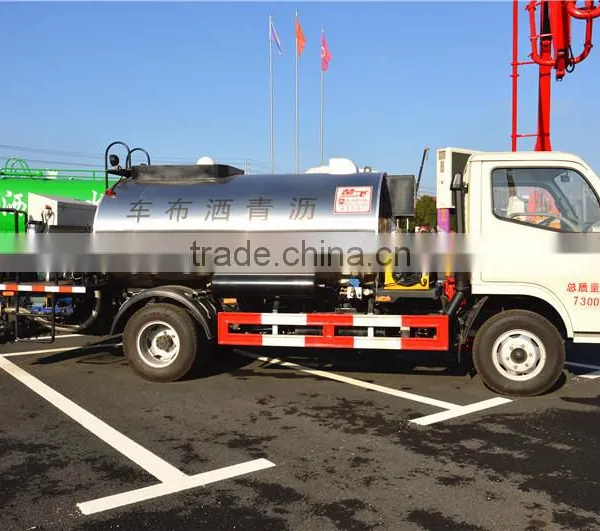

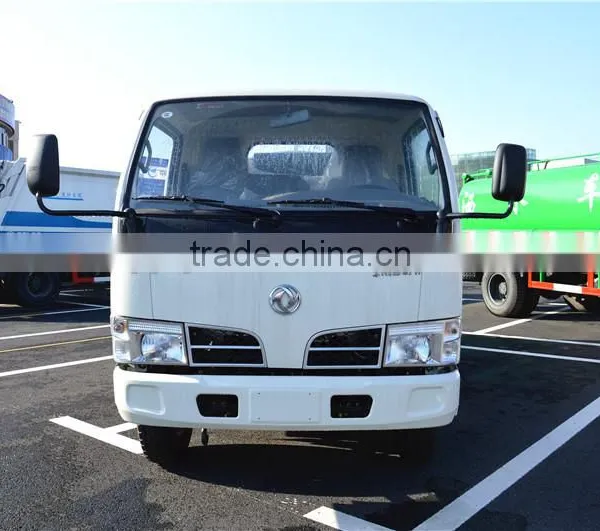

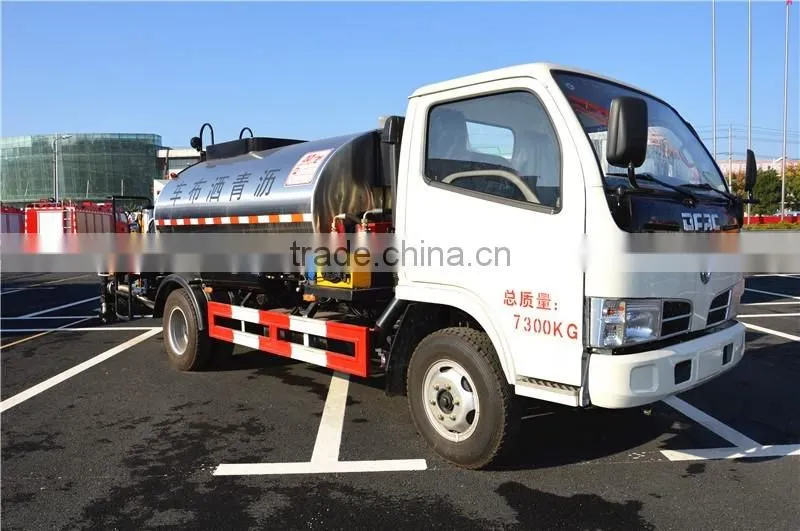

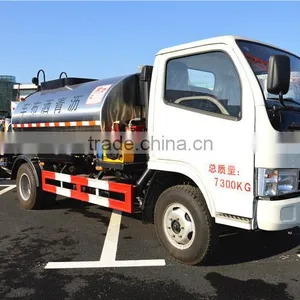

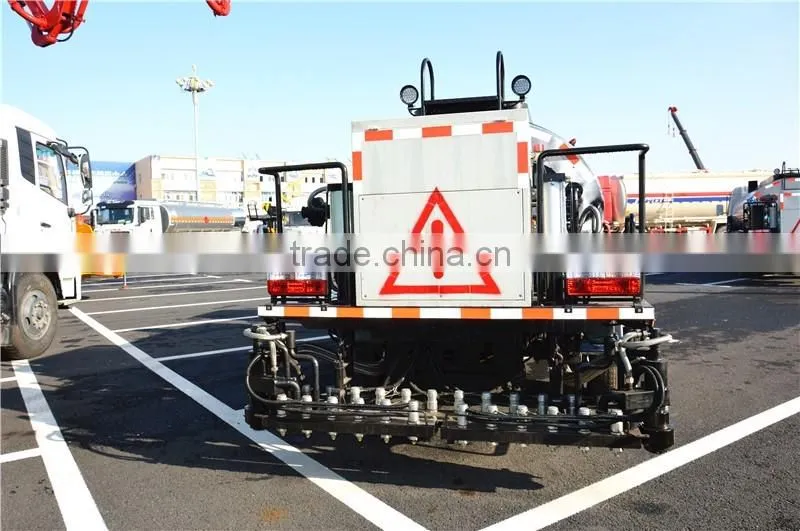

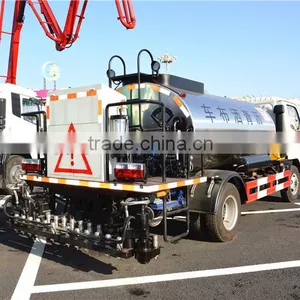

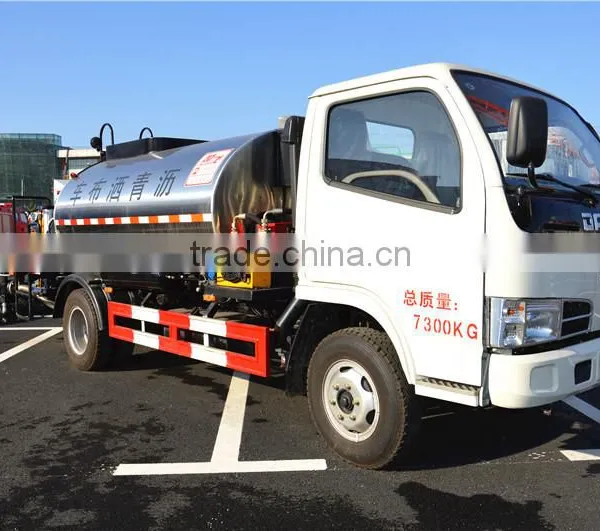

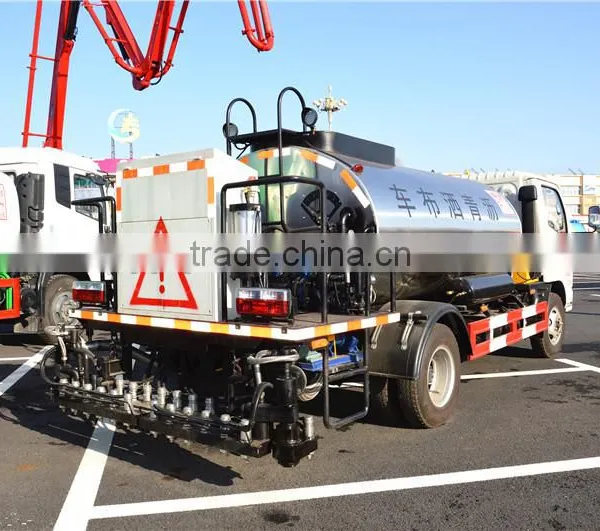

High Quality Dongfeng 4000L Asphalt Spray Truck Made in Factory

Name: High Quality Dongfeng 4000L Asphalt Spray Truck Made in Factory
Brand: Dongfeng
SKU: 140781618
Availability: InStock

Hubei Ocean Special Automobile Co., Ltd.

US$ 43,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Production Capacity:

0.15~2.5L/m2

Power(W):

5.5kw

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or other port of china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Production Capacity 0.15~2.5L/m2

Power(W) 5.5kw

Max. Paving Thickness 220-300mm

Paving Width 4500-6000

Place of Origin Hubei, China

Brand Name Dongfeng

Model Number CLW5060GLQ3

Dimension(L*W*H) 6390*1980*2650mm

Weight 6495

Certification ISO9001-2008

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

High quality dongfeng 4000L asphalt spray truck made in factory

Product Description

The technical specification of CLW5060GLQ3 asphalt spray truck

No.	Name	Technical specification	Remarks
1	Chassis	EQ1060TJ20D3	Dongfeng
2	Engine	CY4102-C3F	Dongfeng
3	Displacement / Power	3856ml/70kw
4	Emission standard	Euro III
5	Fuel type	Diesel
6	Wheelbase	3300mm
7	Tire specification	7.00R16
8	Gross weight	6495 kg
9	Payload	3000 kg
10	Curb weight	3365 kg
11	Asphalt Tank volume	4000 L	CLW
12	Hydraulic pump	CBQ540-L	Made in China
13	Asphalt pump hydraulic drive pump	05-110-BD31	Made in China
14	relief valve , reversing valves	Made in China	Made in China
15	proportional valve	EFBG-03-160-HF	Made in Taiwan
16	Asphalt pump	QGB450 ( max displacement 450L/min)	Made in China
17	Burner	G10	Made in Italy
18	Heat-transfer oil pump	40-25-160	Made in China
19	Control system	CLW-39-01	SIEMENS
20	generator	5.5KW( gasoline generator )	Honda
