Dongfeng mini 4000liters bitumen emulsion sprayer truck for sale
- 500 Set / Sets per Month
- Usually Shanghai port or any other ports in China as your request
- T/T L/C D/P D/A Credit Card PayPal
-
CAT 1873875 187-3875 TRANSFORMER GP Seal-O-Ring C7 3508 3512 Caterpillar Spare parts
-
Wheeled Trailer Hydraulic Water Well Drilling Rig/Rock Core Drilling Rig(300m-600m)
-
Small Hydraulic Portable Soil Sampling Core Drilling Rig
-
Small Portable Geotechnical Gasoline Core Drilling Rig (XY-50A)
-
Geological Engineering Exploration Backpack Portable Gasoline Core Drilling Rig
-
Small Portable Soil Sample Investigation Core Drilling Equipment (XY-30)
Product Details
| Place of Origin: | Hubei, China | Brand Name: | Dongfeng(DFAC) | Model Number: | CLW5060GLQ3 |
| After-sales Service Provided: | Overseas service center available |
Product Description

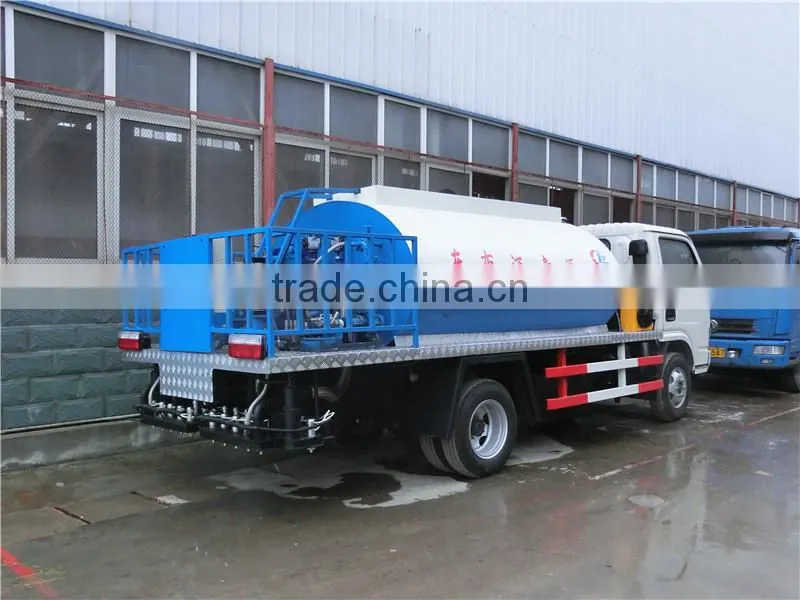

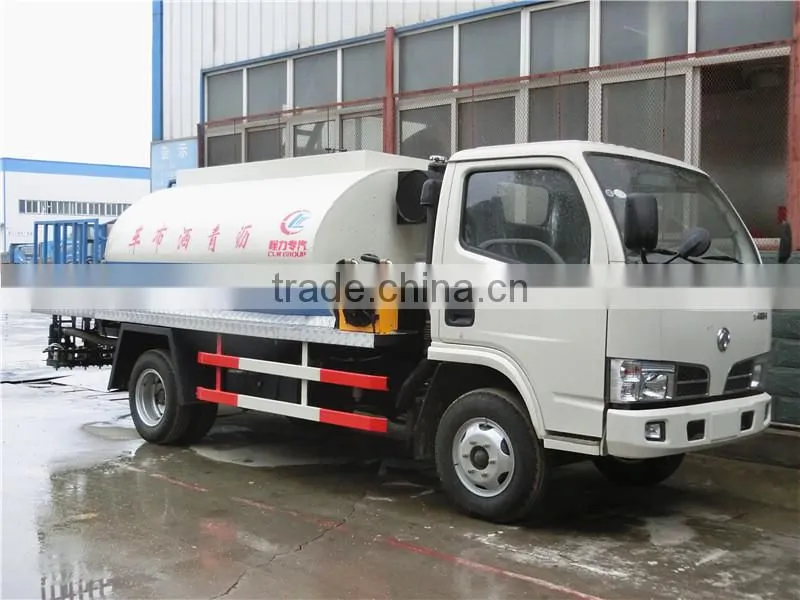

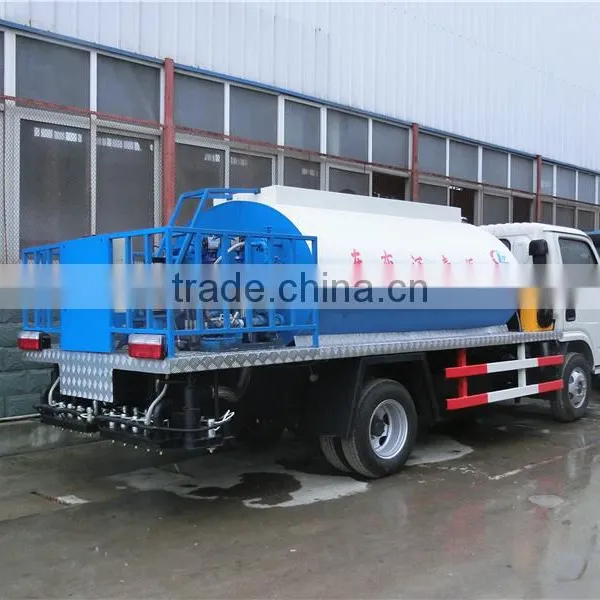

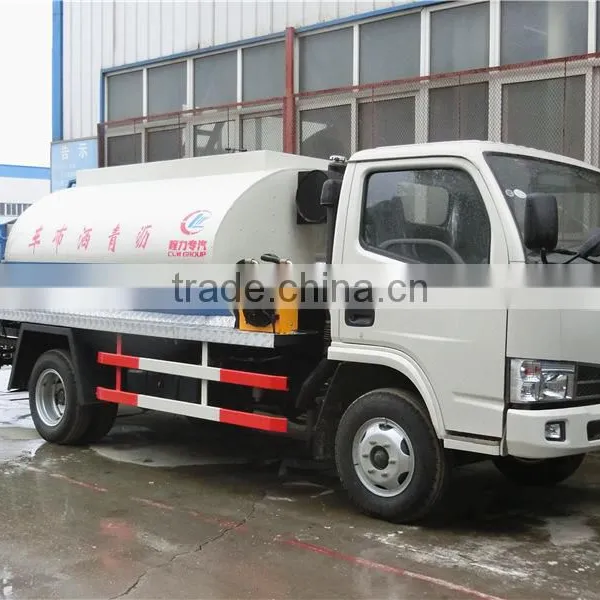

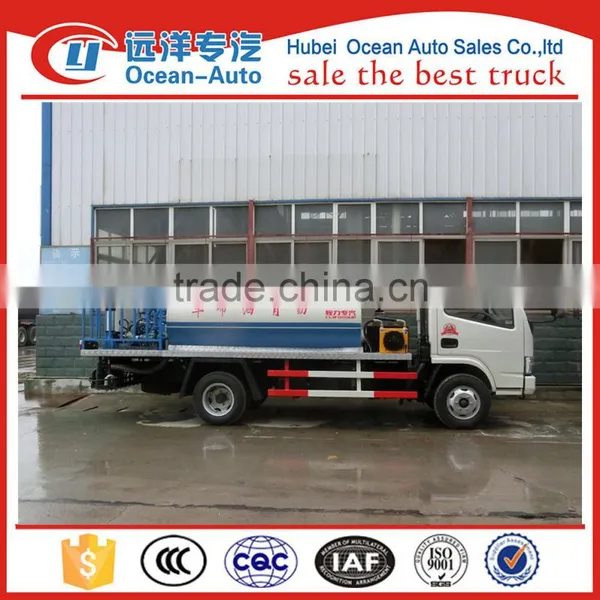

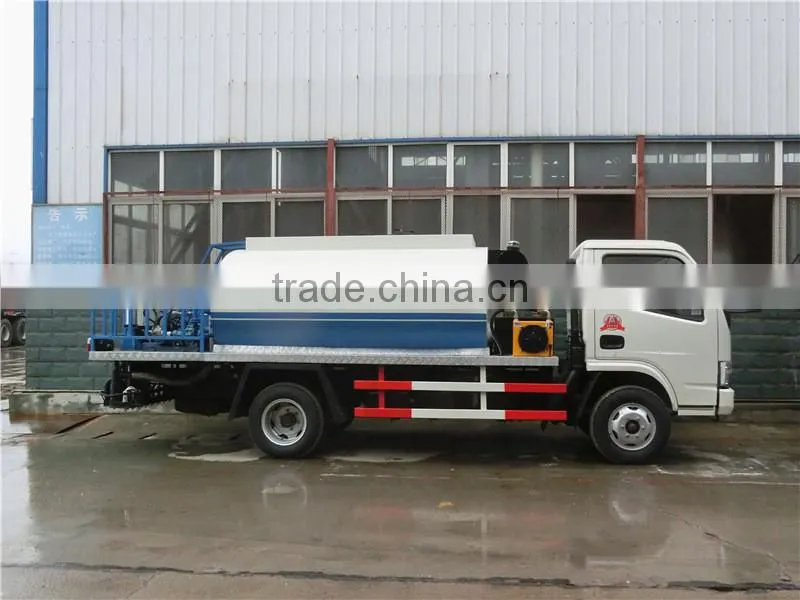

Dongfeng mini 4000liters bitumen emulsion sprayer truck for sale
Truck introduction & Function:

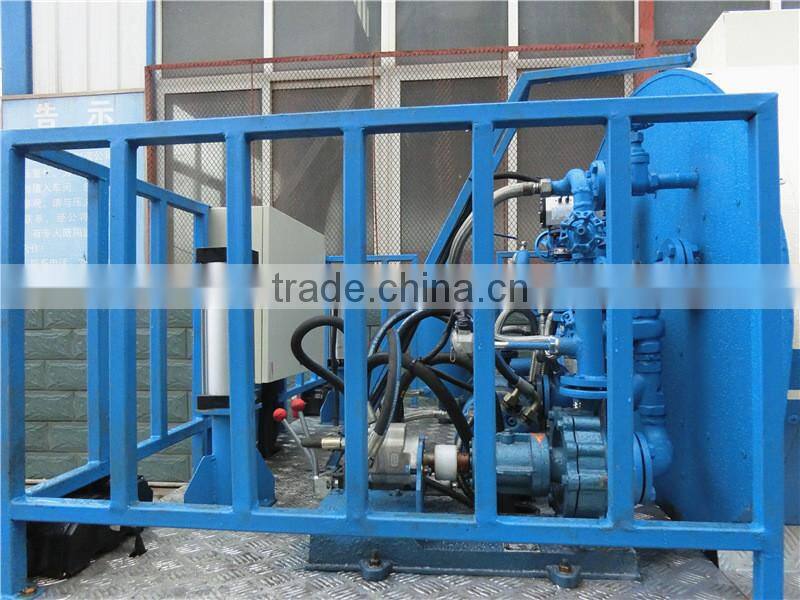

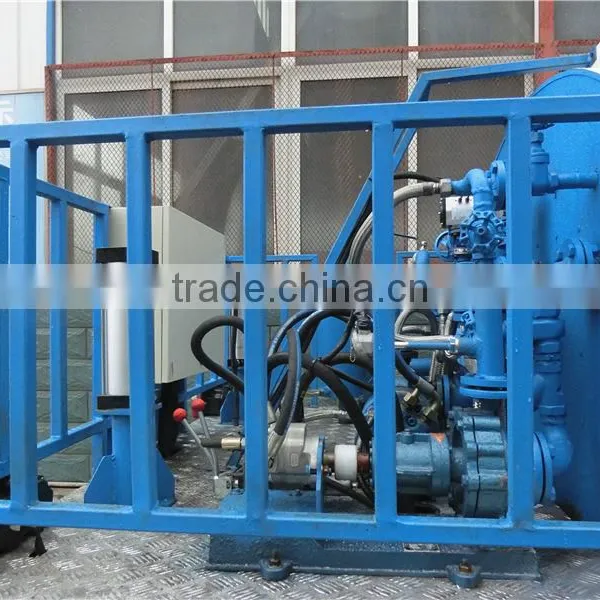

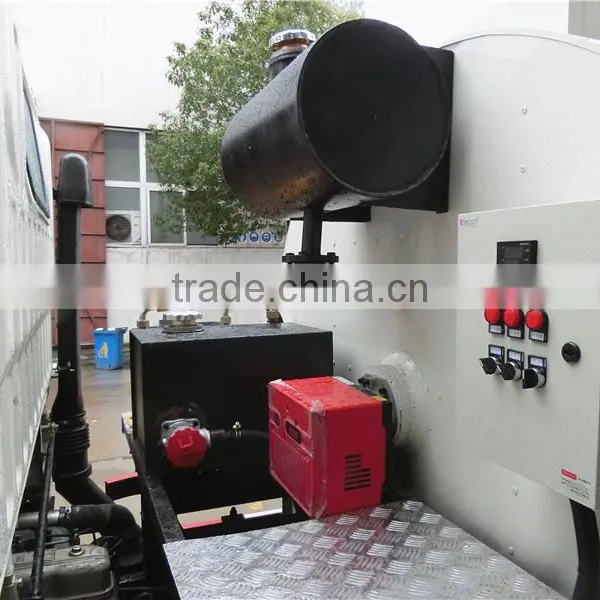

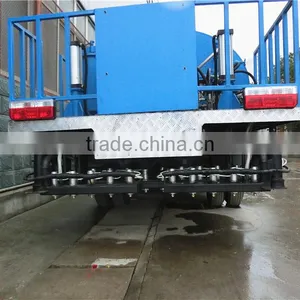

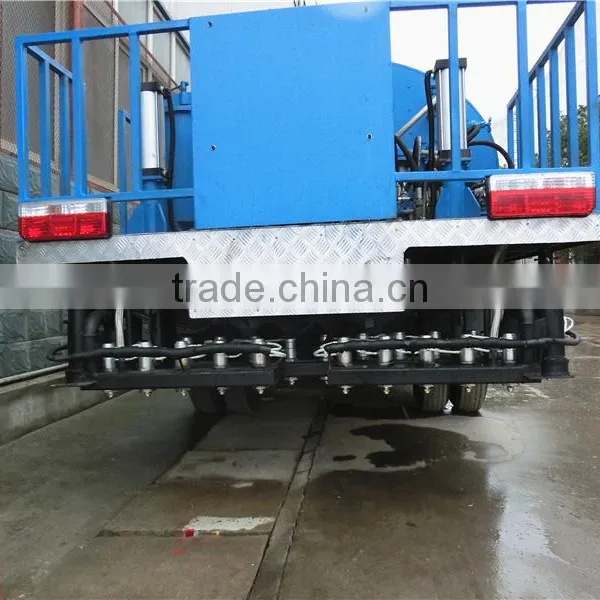

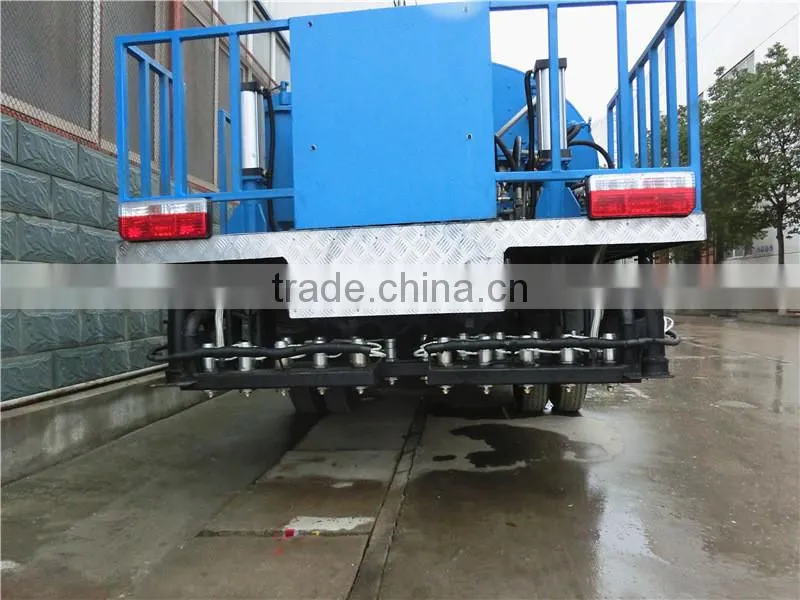

The bitumen distributor truck consist of chassis, asphalt tank, asphalt pump , spray system, hot oil heating system, hydraulic system, burning system, control system, pneumatic system and operational platform. It is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It is widely used in highway, urban road, airport and wharf.
No. | Name | Technical specification | Remarks |
1 | Chassis | EQ1060TJ20D3 | Dongfeng |
2 | Engine | CY4102-C3F | Dongfeng |
3 | Displacement / Power | 3856ml/70kw |
|
4 | Emission standard | Euro III |
|
5 | Fuel type | Diesel |
|
6 | Wheelbase | 3300mm |
|
7 | Tire specification | 7.00R16 |
|
8 | Gross weight | 6495 kg |
|
9 | Payload | 3000 kg |
|
10 | Curb weight | 3365 kg |
|
11 | Asphalt Tank volume | 4000 L | CLW |
12 | Hydraulic pump | CBQ540-L | Made in China |
13 | Asphalt pump hydraulic drive pump | 05-110-BD31 | Made in China |
14 | relief valve , reversing valves | Made in China | Made in China |
15 | proportional valve | EFBG-03-160-HF | Made in Taiwan |
16 | Asphalt pump | QGB450 ( max displacement 450L/min) | Made in China |
17 | Burner | G10 | Made in Italy |
18 | Heat-transfer oil pump | 40-25-160 | Made in China |
19 | Control system | CLW-39-01 | SIEMENS |
20 | generator | 5.5KW( gasoline generator ) | Honda |
| A.Delivery time | ||||||||
| Usually within 10 to 25 days after getting your deposit. And the accurate time depends on your QTY. | ||||||||
| B.Terms of payment | ||||||||
| 30% of contract amount must be paid by T/T before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment. | ||||||||
| C.After-sales warranty to solve our clients’ worries when purchasing | ||||||||
| The warranty period is one year or 25000KM that drove under normal operation and control since our clients get the trucks. And we can supply maintenance for the whole life. |
Hubei Chengli Ocean Auto Sales Co.,Ltd
ADD: Capital of Special Purpose Vehicle, Suizhou City, Hubei Province,China.
Web: /www.clyyqc.en.china.cn
Contact person : Shirley
Mobile : +86-13872869793
Tel: +86-722-3819709
Fax: +86-722-3819809
Skype:shirley201212
Whatsapp ID:(0086)15826736977
Wechat(QQ ) ID:810226289
