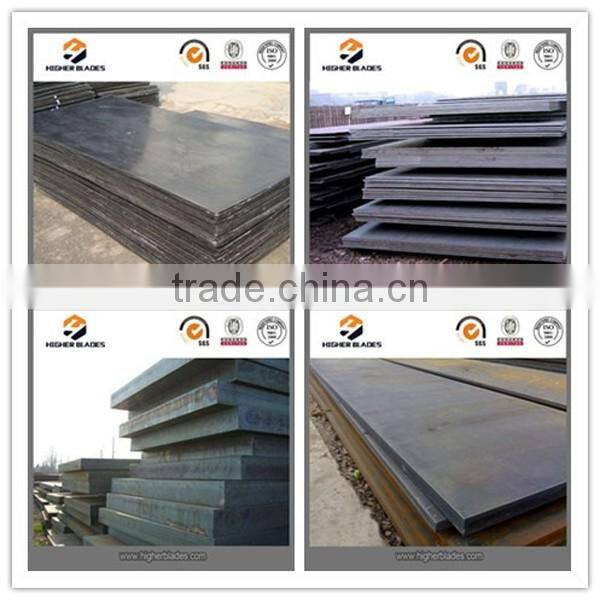

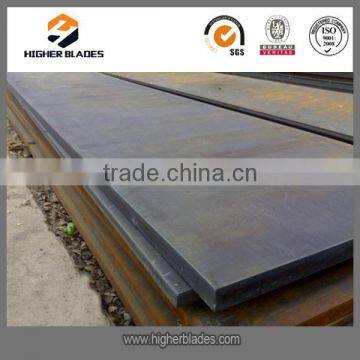

high temperature carbon steel plate
Commodity | high temperature carbon steel plate |
Thickness | 5-80mm |
Width | 1500-4100 |
Length | 1m~12m or as required. |
Standard | ASME,EN,ASTM,JIS,GB,JIS,etc. |
Technique | Hot rolled,cold rolled |
Application | Shipbuilding, bridge, pressure container and so on |
Packaging | Export standard package or as require |
Q: May we visit the factory?
A: Yes, you can visit the factory during working days and our sales team would he happy to assist you.It is convenient to take the high speed train from Jinan station to the factory and we can pick up you at the airport or train station.
Q: What products and service can you supply?
A: Our main products are carbon steel plat, wear resistant plate, low alloy steel plate,bridge steel plate, boiler container steel plate, oil tank steel plate, shipment steel plate, building steel plate, etc.
Q: Higher Blades means "Higher Quality"?
A: Yes, you are right!
•Quality raw material directly from Shandong Steel & Iron Group,which is controllable in alloy element.
•Strict Metalloscope, Impact Energy and Tensile strength Testinginsure superior comprehensive mechanical property.
•Professional distribution system integrating ordering,transporation and warehousing.
Name | Chemical Composition/% | |||||||||
C | Si | Mn | P | S | Ni | Cr | Mo | V | Pcm | |
07MnCrMoVR | ≤0.09 | 0.15-0.40 | 1.20-1.60 | ≤0.025 | ≤0.010 | ≤0.40 | 0.10-0.30 | 0.10-0.30 | 0.020-0.060 | ≤0.20 |
07MnNiMoVDR | ≤0.09 | 0.15-0.40 | 1.20-1.60 | ≤0.020 | ≤0.010 | 0.20-0.50 | ≤0.30 | 0.10-0.30 | 0.020-0.060 | ≤0.21 |
12MnNiVR | ≤0.15 | 0.15-0.40 | 1.20-1.60 | ≤0.025 | ≤0.010 | 0.15-0.40 | ≤0.30 | ≤0.30 | 0.020-0.060 | ≤0.26 |
Name | Tensile Test | Impact Test(Horizonal) | Bending Test | |||
Rm/MPa | Rel/MPa | Elongationδ5/% | Temperature/℃ | Impact Strength KV2 | 180° b=2a | |
≥ | ≥ | |||||
07MnCrMoVR | 610-730 | 490 | 17 | -20 | 47 | d=3a |
07MnNiMoVDR | -40 | 47 | ||||
12MnNiVR | -10 | 54 | ||||
-20 | 47 | |||||
Higher Blades Company have the first-level laboratory, owns Metalloscope Analyse, Impact Energy Tester, Tensile Strength Tester, Brinell/Rockwell Hardness Tester,Ultrasonic Testing, etc. Support SGS, BV, TUV etc third party testing and report.
