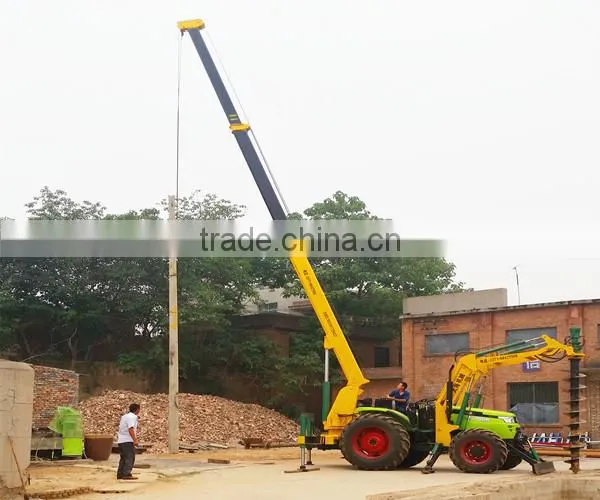

Railway Using Pole Hydraulic Rotary Drill Rig With Tractor Mounded 5 Tons Crane Recommened by CCTV10

Railway using Pole hydraulic rotary drill rig  with tractor mounded 5 tons crane recommened by CCTV10

Introduction of drilling machine

        ISO approved 100HP tractor drilling rig with crane for pole hole drilling in Power facilities is the main produt of gongyi dahai machinery plant, it's designed by our boss who named Dahai, also  hydraulic pole digging machine have been invite to take part in the CCTV show  :" I love invention " got high mark and also bring us a lot of customers. using to digging holp for diameter of 300-1200mm ,deepth at 100-6000mm.can be  Regulation.

Customers notes:

1: What kind of drilling work can it do?

Mainly applies to drill wells for farm irrigation wells, garden irrigation wells, drilling water wells, geothermal wells. Geological explorations, sample taking, pilling driving drill.

2: What are the max. depth and the max. diameter of holes allowed for this drill rig?

300-1200mm diameter and 6m depth are available.  Here we sincerely inform that the final depth and diameter will subject to your special local working strata and drilling experience.

3: What kind of working strata is OK ?

Soil, sandy, clay, sediment, soft rocks, etc. Certainly, the special strata need different drilling bits.

4: What is your advantage over this drill?

Economical and worthy to owned by any family, company.    Practical and efficient by drilling speed of drilling a hole in 1 minute. Easy operate and maintain by only two workers.

1/power: 100HP. 73.5Kw four wheel tractor   2/The drilling depth: 0 m -6 M 3/Bore diameter: 0mm-1200mm 4/ Spiral drill hydraulic drive form: hydraulic hoist 5/Standard bar pit time: 40 seconds (500mm in diameter x depth 3M) 6/operate:one driver 7/ Approved:CE,ISO9001,ISO9002,SGS 8/Net/Gross Weight: 6.68t/6.8t  9/Package Dimension:full 20 feet container 10/color:yellow and green   11/Working principle: screw be pushed by power from hydraulic.
