Integrated with crane telegraph pole pit digging machine

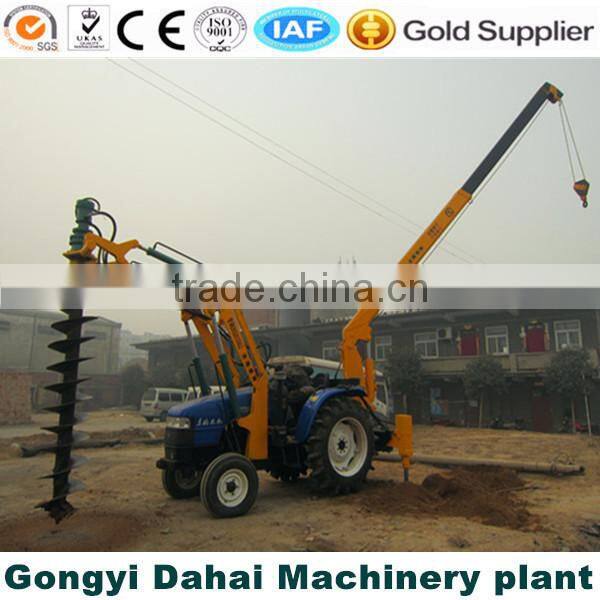

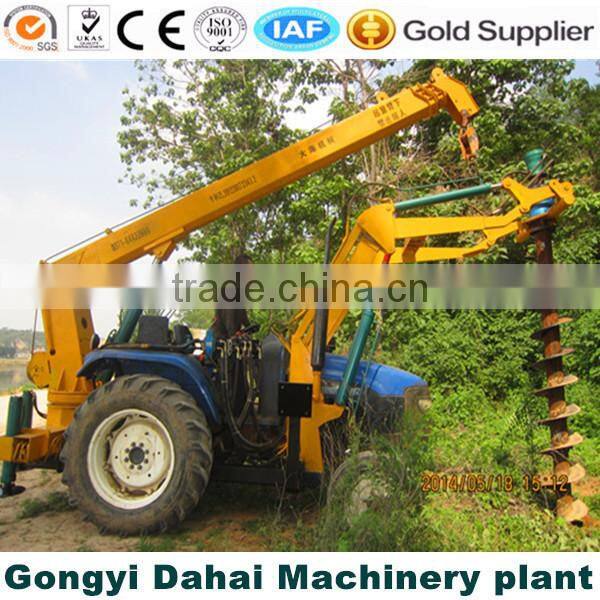

Integrated with crane telegraph pole pit digging machine is small investment, operation speed, general speed can reach 40-50KM/H, 6m anger with crane machine main part is tractor,equipment with hydraulic system can push drill digging depth at 6m,diameter of 300-1200mm.can digging hole at diameter of 300-1200mm, depth <6000mm. well design and with high efficiency, digging 2meters in 1 minute.easy operate, one people can drive it well. can vertical a pole in 3minute with help by 2 other people(handle the balance of pole when it's be lifting by crane that equipment on hydraulic auger ),wheel type digging machine is working in the road and city project.
Application of pit digging machine
Solar photovoltaic power generation project in solar panel rack, screw pile, vertical drilling rod, ditching, put line, backfill soil, ground of traction and lifting 3-8T object, is the ideal choice for individuals and units of construction equipment.
1. Cement pole borehole of power construction, telegraphic pole
2. Tree hole digging and tree planting
3. Photovoltaic (PV) stent pile foundation drilling
4. Pile foundation of building construction and so on.
Technical Parameters
Drilling depth |
0 -6m |
Drilling diameter |
1m-2m |
Standard drill pipe |
300mm-500mm (can customize 500~1000mm drill pipes) |
Lifting method |
Full hydraulic |
Standard drilling time |
40s (diameter of 300mm-500mm) |
Drill Head Material |
Tungsten alloy |
Auger Material |
High-manganese carbon steel |
Crane |
5 ton or 8 ton for choice |
Tractor |
Model 1004 BOMR tractor, 100HP |
Dimension |
L5900*W2000*H2600mm |
Weight |
7.3 t |
Application |
loess, clay, pebble sand, weathered granite, tundra. |
Not suitable for |
rocks, whole sand bed ,household garbage and so on. |
Operator needed |
1 person |
Pictures
1.widely use, sutiable in The loess layer, clay layer, containing pebbles gravel soil, weathered rock and soil,
frozen soil, building garbage, backfill sand, garbage layer.
2. The national patent certification
3.long service life
4.energy-saving
dessional design: well use of hydraulic system, make machine working mor efficiency.
Gongyi Dahai machinery plant is a professional manufacturer of hydraulic digging machines(Digging ditch line pole bulldozing MFP), Located in the north of famous industrial city Gongyi,Zhengzhou ,vering an area of about 20000 square meters.
Hole digger is the main product of Dahai , which has been approved by ISO9002, ISO9001,and also got the certification‘professional manufacturer ’form Chinese government.
The digger is designed by our boss -Dahai ,which has got 9 patents. Our long-term customers are from about 20 countries,and always giving the highest evaluation after each cooperation.
For selling:Customers can come to our factory testing the machines and see it working , everything will be testing well before transport.Clients also can learn operate the machines with the help of our engineer. We are professional manufacturer and sincerely hope to establish business relationship with your esteemed company.

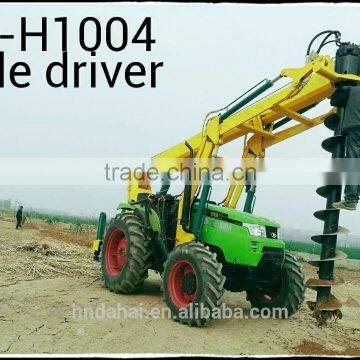

1. Have four hydraulic stabilizer legs, with cross-country 2 or 4 wheel-drive, with wide tires
2. 360° rotation gear motor, hydraulic hoisting and drilling system, combining the auger drill rig with crane, one equipment can realize the drilling and pole uprighting work, more efficient and cost-effective.
3. YTO tractor as power, strong enough.
4. Fully hydraulic driving.Full-automatic put and upright the pole.
In order to order the suitable product,you need to make sure the following details:
application→drilling depth→drilling caliber→stratum
