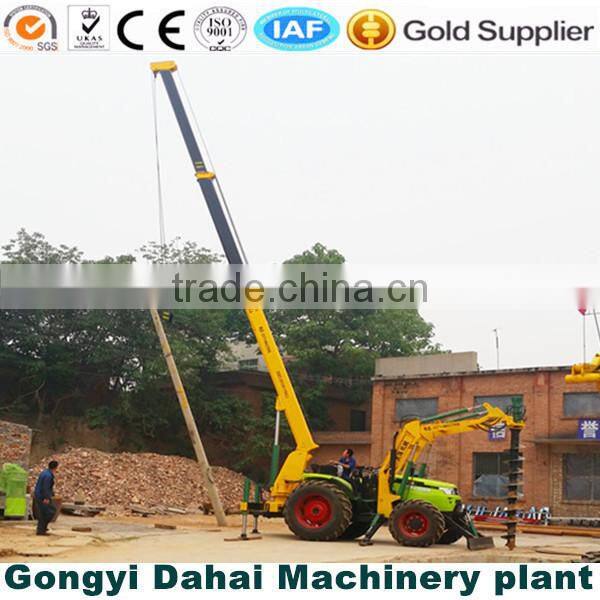

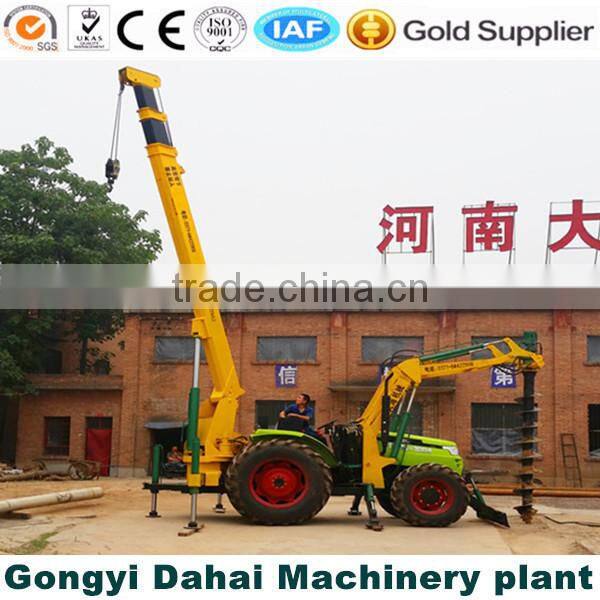

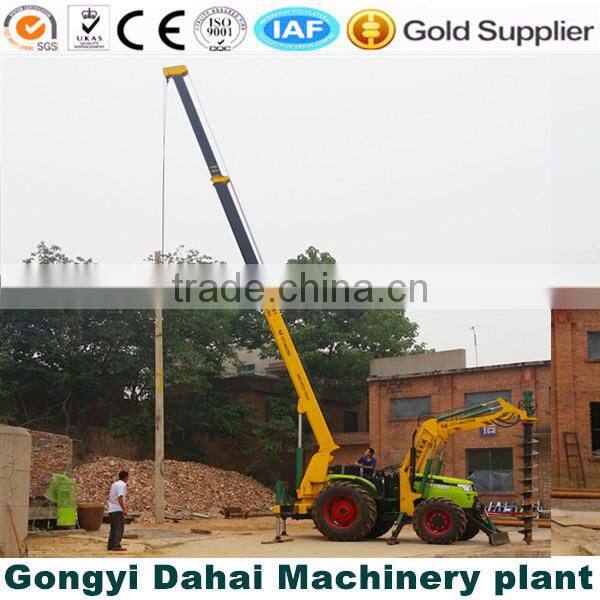

Auger crane pile driver/ Power Pole Erection Machine
DH-pole erection machine is widely used to plant big plants and to erect electricity and solar poles. The Pole Erection Machine is a tractor operated application, designed especially for Rural Electrification work hence Pit designs and dimensions can be customized as per pit design.
cement pole borehole of power construction, Photovoltaic (pv) stent pile foundation drilling, Pile foundation of building construction and so on.
Gongyi Dahai machinery plant is a professional manufacturer of hydraulic digging machines(Digging ditch line pole bulldozing MFP), Located in the north of famous industrial city Gongyi,Zhengzhou ,vering an area of about 20000 square meters.
Hole digger is the main product of Dahai , which has been approved by ISO9002, ISO9001,and also got the certification‘professional manufacturer ’form Chinese government.
The digger is designed by our boss -Dahai ,which has got 9 patents. Our long-term customers are from about 20 countries,and always giving the highest evaluation after each cooperation.
For selling:Customers can come to our factory testing the machines and see it working , everything will be testing well before transport.Clients also can learn operate the machines with the help of our engineer. We are professional manufacturer and sincerely hope to establish business relationship with your esteemed company.
Drilling depth |
0 -6m |
Drilling diameter |
1m-2m |
Standard drill pipe |
300mm-500mm (can customize 500~1000mm drill pipes) |
Lifting method |
Full hydraulic |
Standard drilling time |
40s (diameter of 300mm-500mm) |
Drill Head Material |
Tungsten alloy |
Auger Material |
High-manganese carbon steel |
Crane |
5 ton or 8 ton for choice |
Tractor |
Model 1004 BOMR tractor, 100HP |
Dimension |
L5900*W2000*H2600mm |
Weight |
7.3 t |
Application |
loess, clay, pebble sand, weathered granite, tundra. |
Not suitable for |
rocks, whole sand bed ,household garbage and so on. |
Operator needed |
1 person |
1.widely use, sutiable in The loess layer, clay layer, containing pebbles gravel soil, weathered rock and soil,
frozen soil, building garbage, backfill sand, garbage layer.
2. The national patent certification
3.long service life
4.energy-saving
dessional design: well use of hydraulic system, make machine working mor efficiency.
1. Have four hydraulic stabilizer legs, with cross-country 2 or 4 wheel-drive, with wide tires
2. 360° rotation gear motor, hydraulic hoisting and drilling system, combining the auger drill rig with crane, one equipment can realize the drilling and pole uprighting work, more efficient and cost-effective.
3. YTO tractor as power, strong enough.
4. Fully hydraulic driving.Full-automatic put and upright the pole.
Pole erection machine is used to plan big plant,post,wooden pole,power pole,wire pole,telegraph pole etc and to erect them .
The pole erection machine is a tractor operated application,designed especially for Rural electrification work,hence designs and dimensions can be customed as per design.
