Gongyi Dahai trench digging machine/ tractor trencher
- 20 Set / Sets per Month
- Qingdao port; Tianjin port
- T/T
- Internal gear 40cr 41A0076 for Liugong loader parts ,axle parts
- Liugong Wheel loader parts Liugong spare parts SP104817 Gland
- Liugong Spare parts Castle nut 03B0050 Standard parts for Liugong Wheel loader parts
- Conical roller bearing 23B0019 Standard parts for Liugong Wheel loader parts
- Liugong spare parts flasher relay 31B0005 fpr Liugong Wheel loader parts
- Air tank assembly ,pressure controller 13C0015 for Liugong Wheel loader parts
Product Details
Place of Origin: | Henan, China | Brand Name: | Dahai | Model Number: | DH-1004 |
Product Description

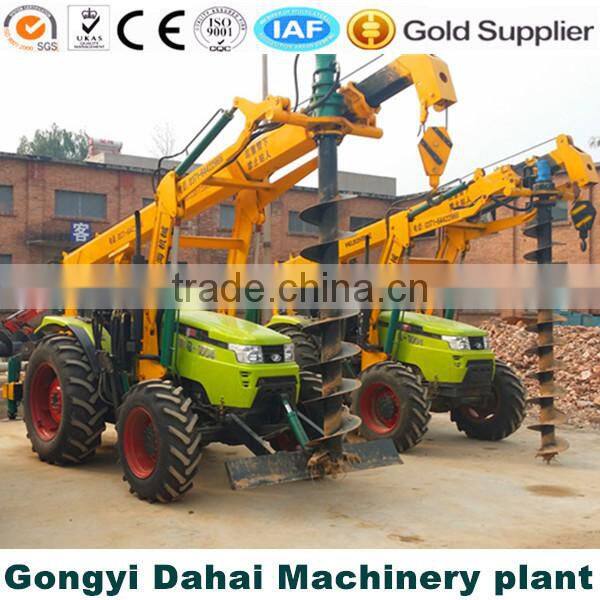

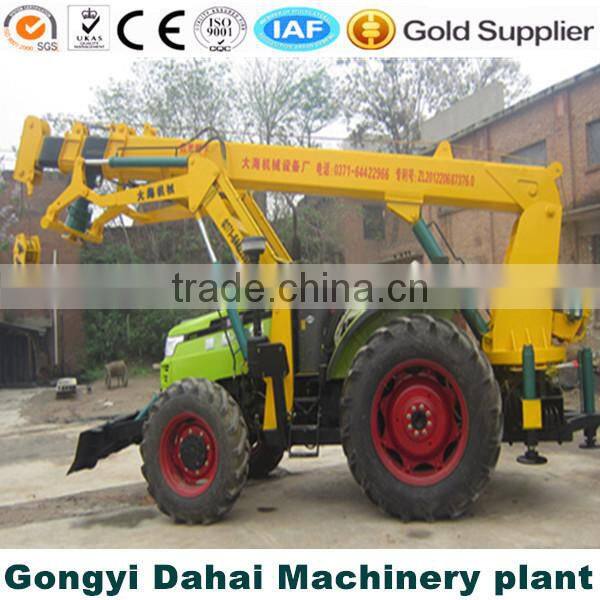

Gongyi Dahai trench digging machine/ tractor trencher
Gongyi Dahai trench digging machine/ tractor trencher is widely used to plant big plants and to erect electricity and solar poles. The Pole Erection Machine is a tractor operated application, designed especially for Rural Electrification work hence Pit designs and dimensions can be customized as per pit design.
cement pole borehole of power construction, Photovoltaic (pv) stent pile foundation drilling, Pile foundation of building construction and so on.
Pit digging machine Function:
1.widely used, suitable in the loess layer, clay layer, containing pebbles gravel soil, weathered rock and soil,
frozen soil, building garbage, backfill sand, garbage layer.
2. The national patent certification
3.long service life
4.energy-saving
5.personal design: well use of hydraulic system, make machine working more efficiency.
In order to order the suitable product,you need to make sure the following details:
application→drilling depth→drilling caliber→stratum
Sype; live:trefoil90
Tel: 0086 15738866605
Fax:0371-64422966
Mobile: 0086 17839987553 (viber/WhatsApp)
Drilling depth | 0 -6m |
Drilling diameter | 1m-2m |
Standard drill pipe | 300mm-500mm (can customize 500~1000mm drill pipes) |
Lifting method | Full hydraulic |
Standard drilling time | 40s (diameter of 300mm-500mm) |
Drill Head Material | Tungsten alloy |
Auger Material | High-manganese carbon steel |
Crane | 5 ton or 8 ton for choice |
Tractor | Model 1004 BOMR tractor, 100HP |
Dimension | L5900*W2000*H2600mm |
Weight | 7.3 t |
Application | loess, clay, pebble sand, weathered granite, tundra. |
Not suitable for | rocks, whole sand bed ,household garbage and so on. |
Operator needed | 1 person |
1) Pit Boring Making Machine
Drilling depth | 0 -6m |
Drilling diameter | 1m-2m |
Standard drill pipe | 300mm-500mm (can customize 500~1000mm drill pipes) |
Liftingmethod | Full hydraulic |
2) Pole Erection Machine
DH850 | 73.5HP | 300-800mm | <6000mm | Digging, put line, vertical rod, Bulldozing, | 3 tons crane Wire rod length below 12 meters | 5 tons crane Wire rod length 12-15 meters |
DH1004 | 73.5HP | 300-1200mm | <6000mm | Digging, put line, vertical rod, Bulldozing, | 5 tons crane Wire rod length 12-15 meters | 8 tons crane Wire rod length below 15 meters |
Gongyi Dahai machinery plant is a professional manufacturer of hydraulic digging machines(Digging ditch line pole bulldozing MFP), Located in the north of famous industrial city Gongyi,Zhengzhou ,vering an area of about 20000 square meters.
Hole digger is the main product of Dahai , which has been approved by ISO9002, ISO9001,and also got the certification‘professional manufacturer ’form Chinese government.
The digger is designed by our boss -Dahai ,which has got 9 patents. Our long-term customers are from about 20 countries,and always giving the highest evaluation after each cooperation.
For selling:Customers can come to our factory testing the machines and see it working , everything will be testing well before transport.Clients also can learn operate the machines with the help of our engineer. We are professional manufacturer and sincerely hope to establish business relationship with your esteemed company.
