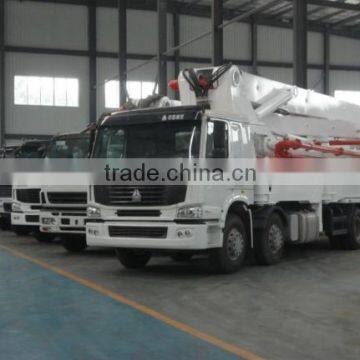

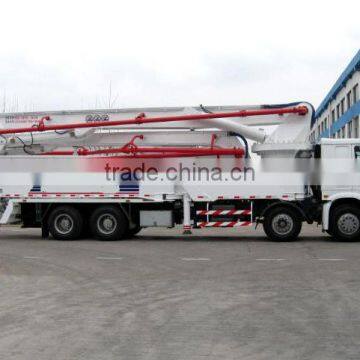

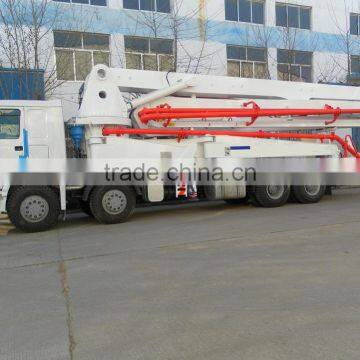

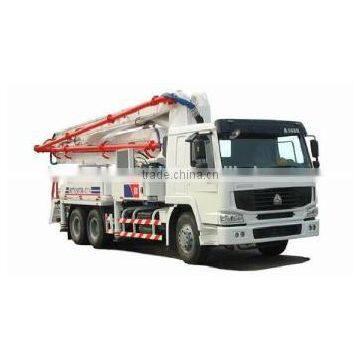

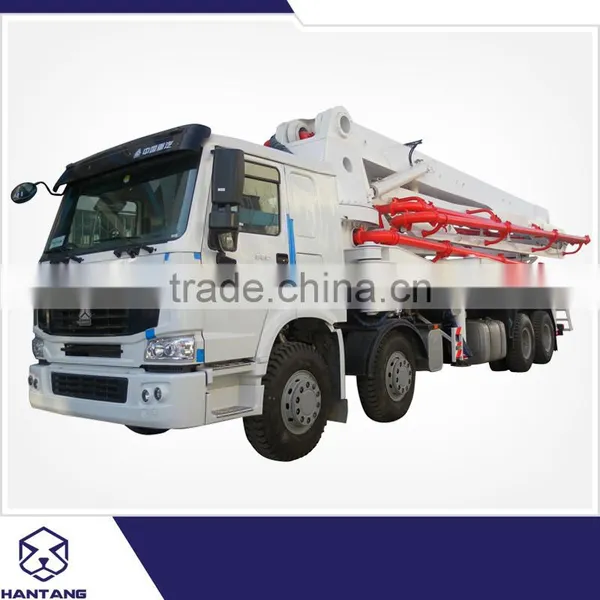

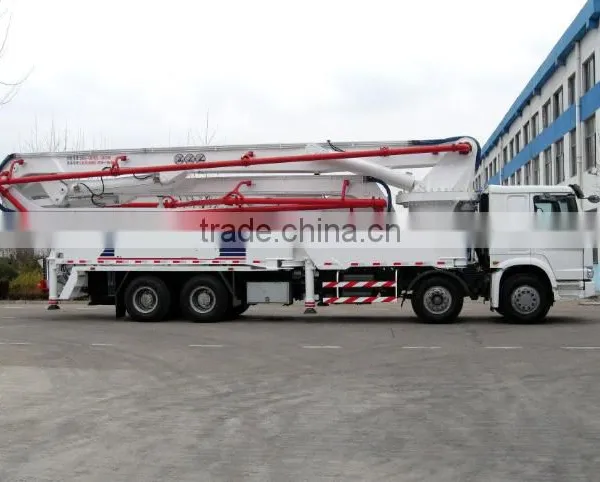

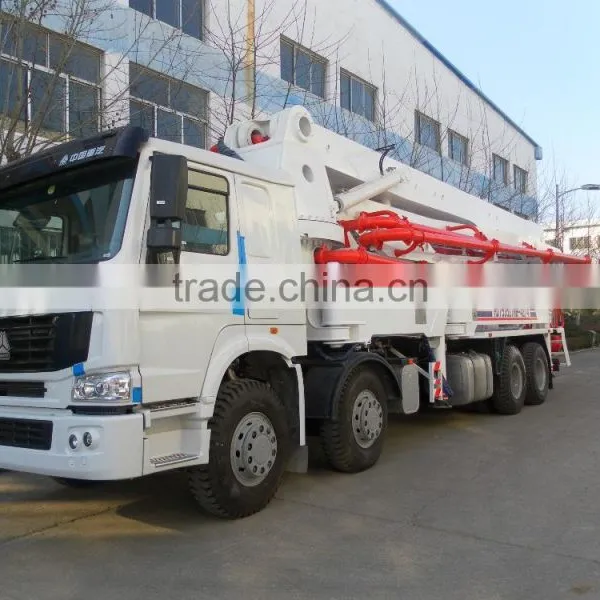

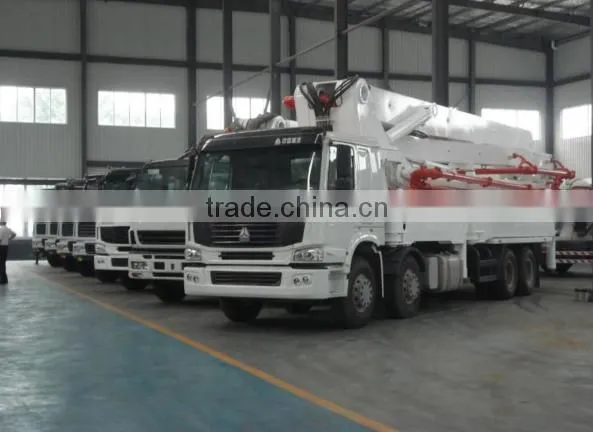

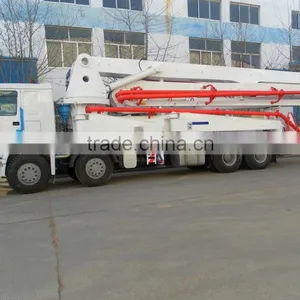

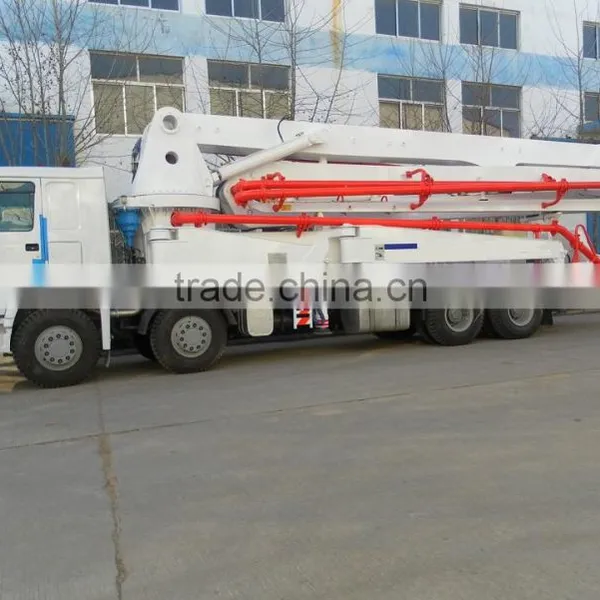

HOWO 39M Concerte Pump Truck
Model | HT5291THB-39/4 | |
Output in theory | m3/h | 125 |
Index of the pump carry capacity | Mpa.m3/h | 586 |
Theoretic pumping pressure | Mpa | 8.5 |
Bucket volume | L | 700 |
Height of top surface of bucket | mm | 1370 |
Model of dirstribution valve |
| S Valve |
Max. operation radius | m | 34.7 |
Max. operation height | m | 38.7 |
Max. operation depth | m | 27 |
Open height of boom | mm | 8830 |
Distance between front landing legs | mm | 6800 |
Distance between rear landing legs | mm | 7000 |
Distance between front & rear landing legs | mm | 7432 |
Diameter of delivery pipe | mm | 125 |
Length of hose pipe | m | 4 |
Rotary range of boom |
| 365° |
Quantity of boom |
| 4 |
Rotary angle of each boom | ° | 91/180/180/180/270 |
Wire line control distance | m | 33 |
Romote control distance | m | 200 |
Travel Specification | ||
Max. speed | km/h | 90 |
Min. turn radius | mm | 8800 |
Brake distance | m | 7 |
Approach angle | ° | 16 |
Departure angle | ° | 11 |
Chassis model |
| HOWO ZZ5307N4647C |
Wheel base between the first & the second axle | mm | 4600 |
Wheel base between the second & the third axle | mm | 1350 |
Front tread | mm | 2022 |
Rear tread | mm | 1830 |
Max. engine output power | kw | 247(2200r/min) |
Max. engine output torque | n.m | 1350(1100-1600r/min) |
Max, gradient ability | % | 35 |
Fuel consumption | L/100km | 34 |
Dimension(L×W×H) | mm | 12500×2490×3950 |
Total weight | kg | 29500 |
Packaging: HOWO 39M Concerte Pump Truck is nude packaging by RORO.
Delievery time:30days after receving desposit.
Pre-sale:we can help you select the product that you need and answer all kinds of problems you want
know.
During production:we can provide a production schedule for you.
After sale:our warranty is 1 year.
Our company Shandong Hantang Machine Company Limited is engaged in exporting the heavy duty truck , large machinery and auto parts product. SINOTRUK, SHACMAN, XCMG,ZOOMLION are our important export partners.
Our main products include Forklift,Wheel loader,Crane,Excavator,Dump truck,Road roller,Bulldozer,Cargo truck and so on.You can look through from alibaba and you can contact us at any time.
Q1:Can I print my own logo?
A:Yes,we provide one-on-one designing assistance.
Q2:Where have your products been sold to?
A:Our product have been exported all over the vering Asia,Africa,South America,O ceania and parts of Europe and the United States.
