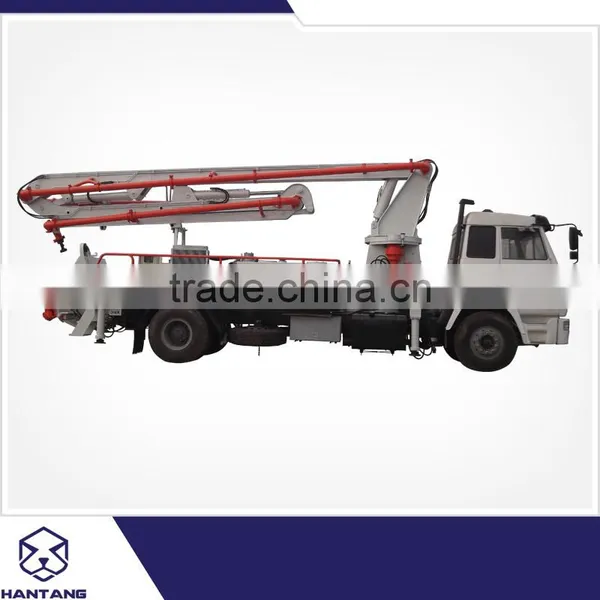

24m concrete pump truck for sale
1.Boom of truckmounted concrete pump use Swedish SSAB company’s high strength cold roll steel .
2.This steel’s yield strength is above 900Mpa,Some parts such as boom system, landing leg,
3.oil tanker have taken stress relieving after welding.
Parameter of Concrete Pump Truck-24m | |
Model | HTD5180THB-24/3 |
Chassis Model | SX1165TN561 |
Total Weight | 18460kg |
Driving Mode | 4×2 |
Max. Driving Speed | 92km/h |
Driver Cab with Air Conditioner, Sleeping Room | |
Wheel Base No.1 & No.2 | 5600 mm |
No.2 & No.3 | 1310mm |
Wheel Tread | Front 2065mm |
| Rear 1850mm |
Overall Dimension |
|
Total Length | 13740mm |
Total Width | 2490mm |
Total Height | 4000mm |
Engine Model | WP10.290 |
Tire Size | 12.00R20 Radial Tire |
Mini. Turning Radius | 8800mm |
Driving Brake | Double Loop Air Brake |
Power | 290PS(213KW) |
Boom System | Model 3 section, Folded, Hydraulic |
Max. Torque | 1055NM |
Max. Height | 23.1m |
Emission Standard | EU III |
Pipe Diameter | DN125 |
Gearbox Model | FAST 9JS119 |
Length of End Hose | 3m |
Displacement | 9726ML |
Section1boom Length | 8220 |
|
|
Pump |
|
Pump Delivery Pressure in Theory | 8/11.8Mpa |
Pump Delivery Times in Theory | 19times/min |
Max. Working Radius | 19.1 m |
Max. Working Height | 23.1 m |
Hydraulic System Pressure | 32MPa |
Lubrication | Grease self-lubrication |
Bucket Capacity | 0.7M3 |
Oil Tank Capacity | 1000L |
Aggregate Reaching Height in Bucket | 1.40m |
Systematic Oil Pressure | 32Mpa |
Max. Water Pump Pressure | 6MPa |
Falling Degree | 14cm-23cm |
Water Tank Capacity | 650L |
Diameter | 40mm |
Outrigger span | 4550×2280×6030mm |
24m concrete pump truck for sale
Packing: Nacked packing.
Shipping: 24m Concrete Pump Truck usually is shipped by Ro-Ro ship.
1. Guaranty time: 12 months (calculating from the date the machine leave the port of loading) or 1500 working hours, whichever comes first.
2. Provide maintenance instruction, parts list, packing list, accessories and tools free of charge when send the machine to you.
3. Provide the parts free of charge in the guaranty time if the parts cannot work well.
4. Excess the guaranty; you can easily to buy from us with cost price anytime.
Hantang Machine is engaged in manufacturing and exporting kinds of construction machines.
Such as wheel loader, truck crane, crawler crane, bulldozer, excavator, forklift,
concrete pump truck,dump truck, tractor, trailer, etc.
Great Service is our Mission. We always take client's dement as our No.1 supply.
With more than 9 years construction machine experience,
Hantang Machine staff team can supply client any high quality products and quality service.
1.Are you a manufacturer?
Yes,we have our own brand, but also on the well-known brand agents.
2.What dose your factory do regarding quality control?
Quality is priority!our factory strictly implements ISO9001 quality control system.
3. Did your side accept that we put our own logo on your machine?
We can do the OEM according to customers request.
