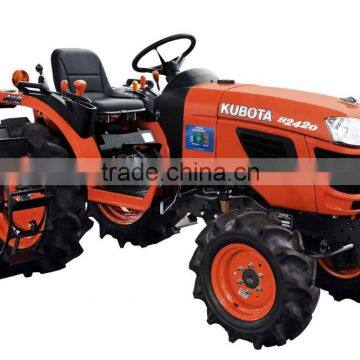

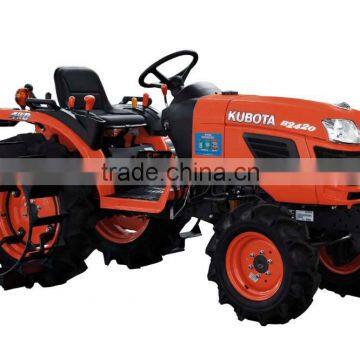

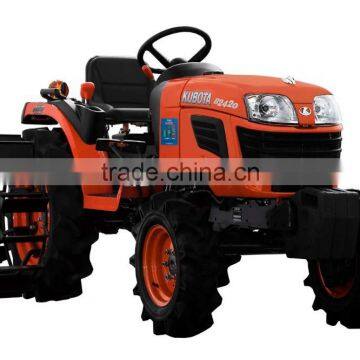

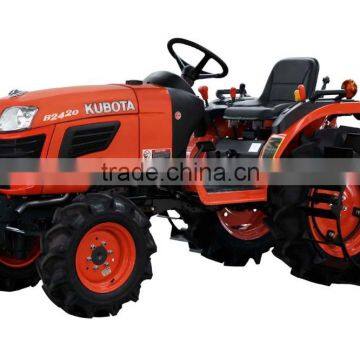

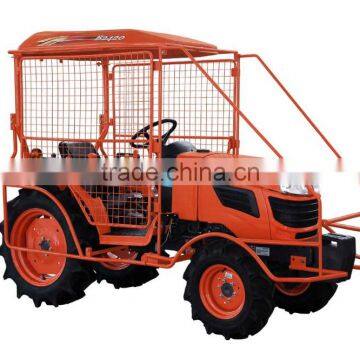

JAPANESE TRACTOR B2420

JAPANESE TRACTOR B2420 thumbnail-1
JAPANESE TRACTOR B2420 thumbnail-2
JAPANESE TRACTOR B2420 thumbnail-3
JAPANESE TRACTOR B2420 thumbnail-4
JAPANESE TRACTOR B2420 thumbnail-5
JAPANESE TRACTOR B2420 thumbnail-6
JAPANESE TRACTOR B2420 photo-1

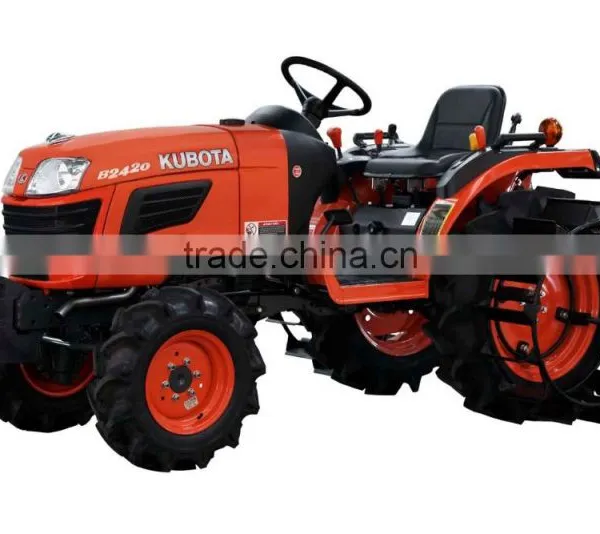

JAPANESE TRACTOR B2420 photo-2

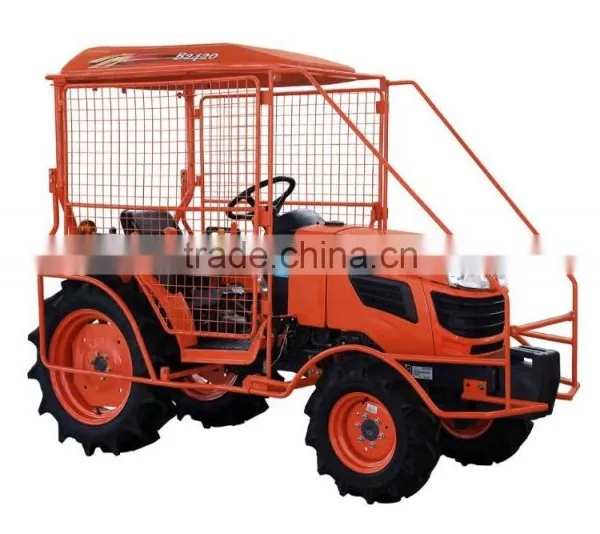

JAPANESE TRACTOR B2420 photo-3

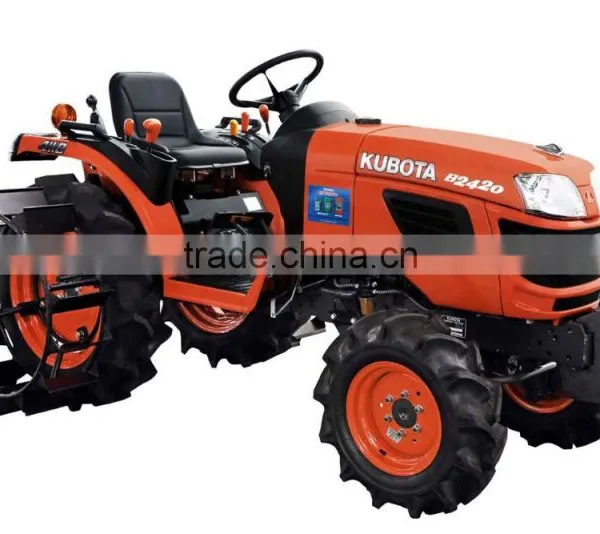

JAPANESE TRACTOR B2420 photo-4
JAPANESE TRACTOR B2420 photo-5

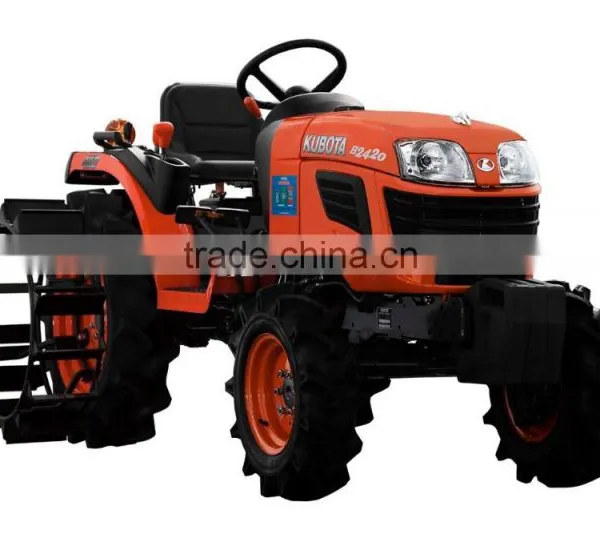

JAPANESE TRACTOR B2420 photo-6
US$ 300 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Agritech Goldstar Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
HO CHI MINH CITY
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 11.8KW
Certificate CE
Brand Name TRACTOR B2420
Model Number B-2420
Place of Origin Japan
After-sales Service Provided No overseas service provided



Model

B2420

4WD

Engine

Type

Kubota D1105-E2-D22I
E-TVCS, liquid cooled, 3-cylinder diesel

No. of cylinders

3

Total displacement ( cc )

1,123

Engine gross power ( HP )

24.0@2600 rpm

Engine net power ( HP )

21.1@2600 rpm

PTO power ( HP )

17.4@2600 rpm

Fuel tank capacity ( l)

26

Dimensions

Overall length (without 3P) ( mm(inch) )

2,410(94.88inch)

Overall width ( mm(inch) )

1,015(39.96inch)

Overall height (Top of steering wheel) ( mm(inch) )

1,280(50.39nch)

Wheelbase ( mm(inch) )

1,563(61.54inch)

Min. ground clearance ( mm(inch) )

325(12.80inch)

Tread

Front ( mm(inch) )

815(32.09inch)

Rear ( mm(inch) )

810(31.89inch), 900(35.43inch)

Weight ( kg )

595

Clutch

Dry type Single stage

Traveling System

Tires

Front

7 – 12

Rear

8.3 – 20

Steering

Integral type power steering

Transmission

Gear shift, 9 forward and 3 reverse

Brake

Wet disk type

Min. turning radius (with brake) ( m )

2.1

Traveling speed ( km/h )

Max. 18.8

Hydraulic

Hydraulic control system

Quarter inching valve

Pump capacity ( l/min )

26.4 (16.6+9.8)

Three point hitch

Category I

Max. lift force

At lift points ( kg )

615

24 in. behind ( kg )

480

PTO

PTO (Engine speed) ( rpm )

540 (2,600), 960 (2,552)







JAPANESE TRACTOR B2420

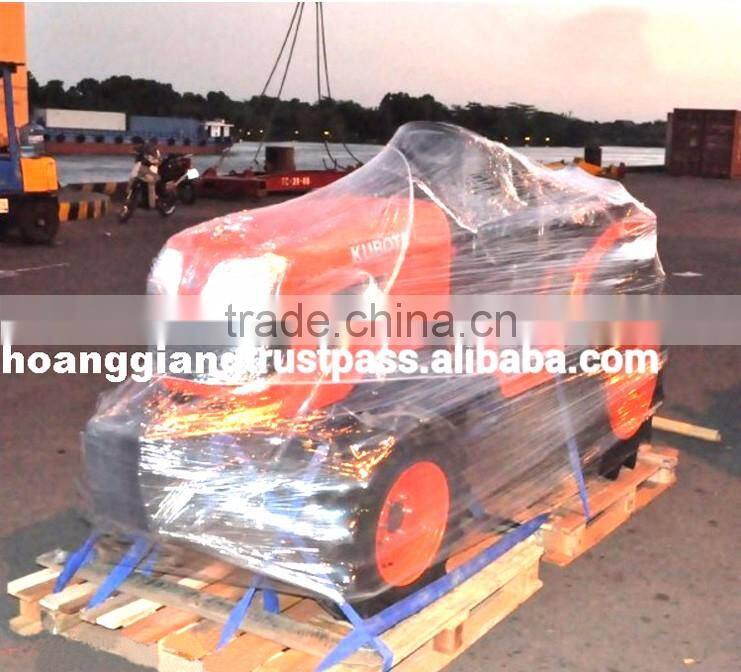

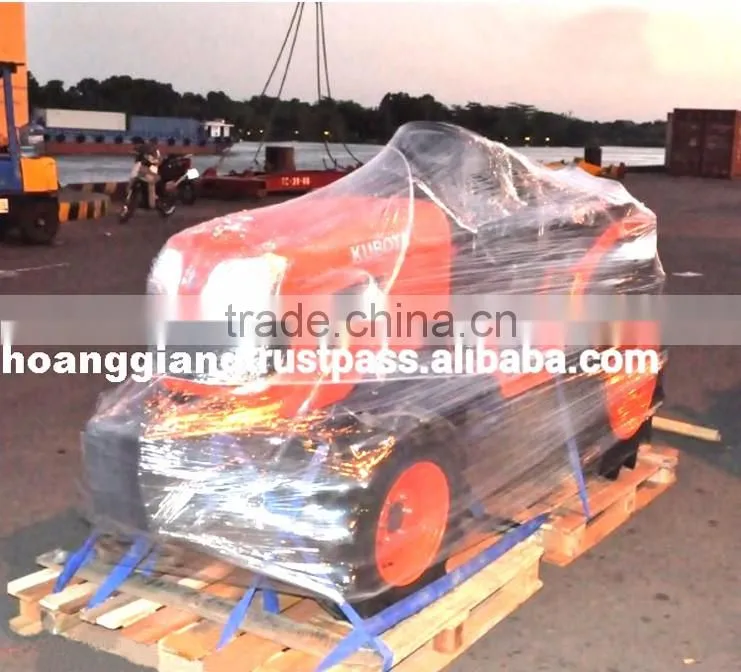

Packaging & Shipping
