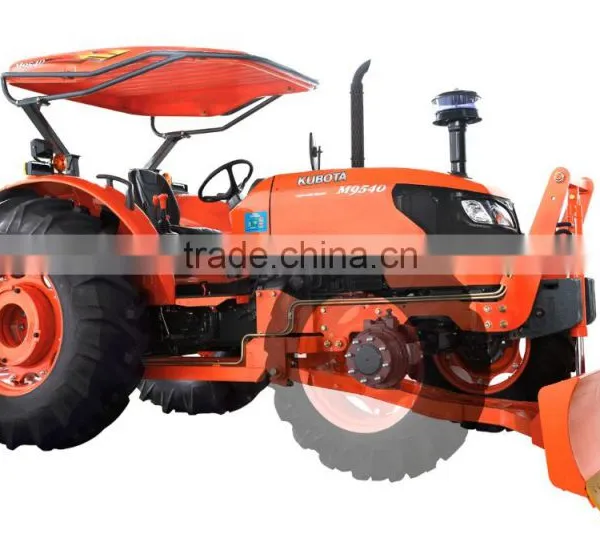

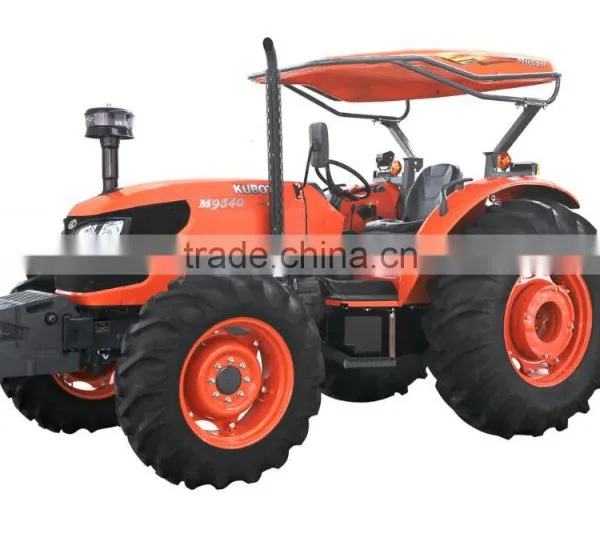

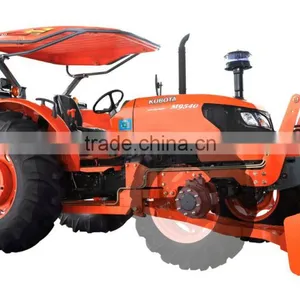

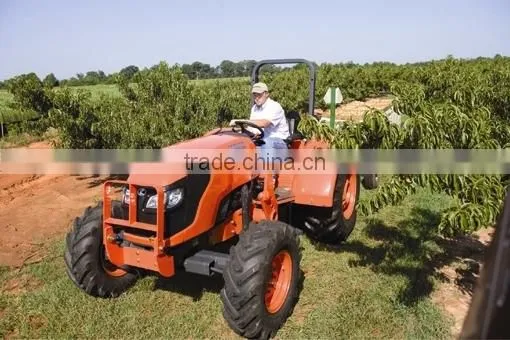

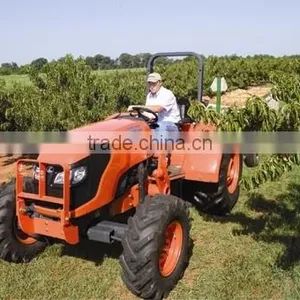

Help CenterNEW TRACTOR M9540
US$ 40,000 - 40,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
HO CHI MINH
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Drive Type
Other, Driver
Power(W)
11.8KW
Certificate
CE
Brand Name
KUBOTA
Model Number
M9540
Place of Origin
Bangkok, Thailand
After-sales Service Provided
No overseas service provided
| Specifications | |
| Drive Train System | 4-Wheel Drive |
| Engine System | |
| Engine type | Kubota Diesel Engine - Center Direction Injection Type: 4-Cylinder, 4-Cycle, In-line Water Cooled |
| Model | V3800-DI-TI |
| Net HP | 95 (hp) |
| PTO HP | 84 (hp) |
| Max Output | 2,600 (rpm) |
| Displacement | 3,769 (cc) |
| Bore X Stroke | 100 x 120 (mm) |
| Battery capacity | 12 (volt) |
| Fuel Tank | 90 (litre) |
| Traveling System | |
| Standard tire size | Front: 12.4-24 (inch) |
| Rear: 18.4-30 (inch) | |
| Transmission | Synchromate |
| Directional gear | Synchro Shuttle |
| Clutch | Multiple Dry Clutch plates immersed in oil, Controlled by hydraulic |
| Transmission speed | 8 forward and 8 bankward |
| Steering | Hydrostatic power steering |
| Braking system | Disc brake immersed in oil, controlled by hydraulic |
| Front wheel drive train system | Bevel Gear and planetary gear |
| Differential lock system | Automatic (Limited Slip) |
| Speed | Forward: 2.6-32.4 (km/hr) |
| Backward: 2.6-32.2 (km/hr) | |
| Power Take-off System (PTO Shaft) | |
| PTO / Engine speed | 540 / 2,205 (rpm) |
| Hydraulic System | |
| Hydraulic pump flow rate | 64.3 (litre/min) |
| 3-point hitch control system | Position Control, Draft Control and Mix Control |
| 3-point hitch | SAE No. 2 |
| Max. lift force at lift points | 3,900 (kg) |
| Max. lift force - 24 inch behind lift points | 3,300 (kg) |
| Dimensions / Weight | |
| Weight (without counter weight) | 2,710 (kg) |
| Length (front bumper-rear wheel) | 3,760 (mm) |
| Width (left - right tire bead) | 2,010 (mm) |
| Wheel base (front - rear tire) | 2,250 (mm) |
| Height | 2,535 (mm) |
| Ground clearance | 450 (mm) |
| Tread Width (Left-Right) | Front: 1,660 (mm) |
| Rear: 1,540-1,940 (mm) | |
