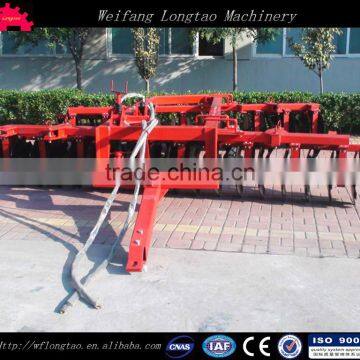

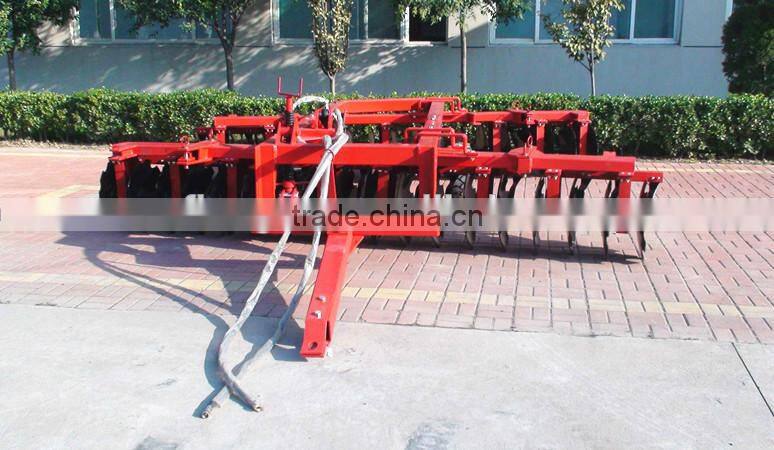

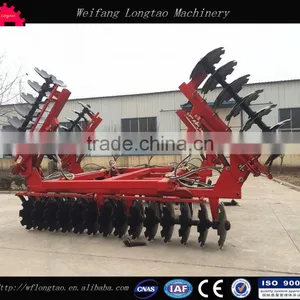

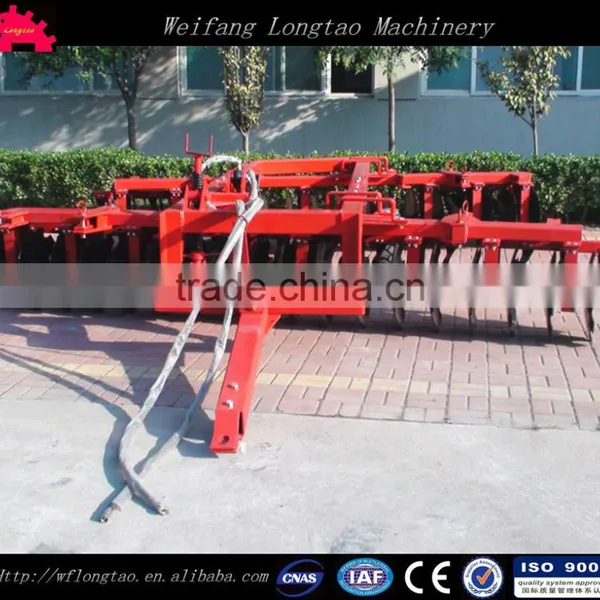

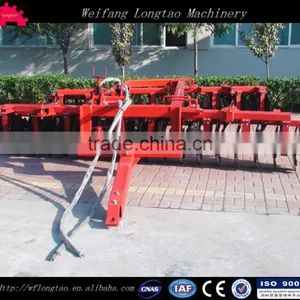

Farm machinery tractor trailed heavy duty Disc Harrow/hydraulic disc harrow for sale
Features:

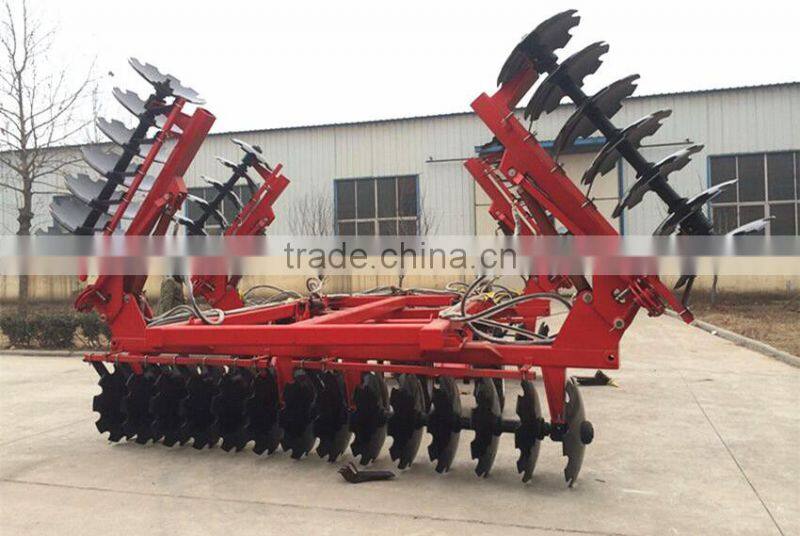

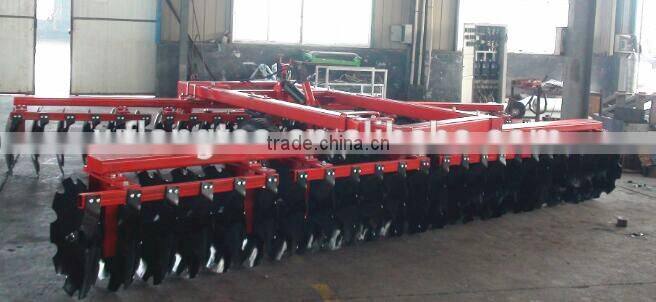

1LTZ Series Hydraulic Folding Offset Heavy Duty Disk Harrows, with super high strength harrow frames and discs, are specially used in large farm or pasture for superficial plowing, harrowing and shattering of clods, smashing and mixing crop residues or plant roots into soil as green manures, for preparation of soil before sowing. The disk harrow especially performs excellently in tougher soil condition.This series of disc harrows specially adopt hydraulic & tire mechanism to control cutting depth of harrow, and facilitate transportation during and after harrow working. Suitable for matching high power tractors.
Technique parameter:
• 42mm diameter round harrow shaft used, 290mm spacing between discs, matching 10.0/75-15.3 tires
• High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade
• Super heavy disk harrow, performing well in tough soil conditions, harrowing more thoroughly
• 140*140*10mm tubular steel harrow beams used, more durable in harrowing work
• Large and thick 28’’×8 harrow discs used, fulfilling deep tillage requirements
• Wheels linked to hydraulic cylinder, facilitating harrow maneuvers, disc depth control and harrow transportation over long distance .
Parameters:
Model | 1LTZ-4.4 | 1LTZ-5.3 | 1LTZ-7.8 |
Working width | 4400mm | 5300mm | 7800mm |
Working depth | 180~220mm | 180~220mm | 180~220mm |
Q’ty of disc | 40pcs | 48pcs | 56pcs |
Disc diameter | 710mm | 710mm | 710mm |
Overall weight | 2300kgs | 3500kgs | 5600kgs |
Matched power | 100-150hp | 130-180hp | 150~200hp |

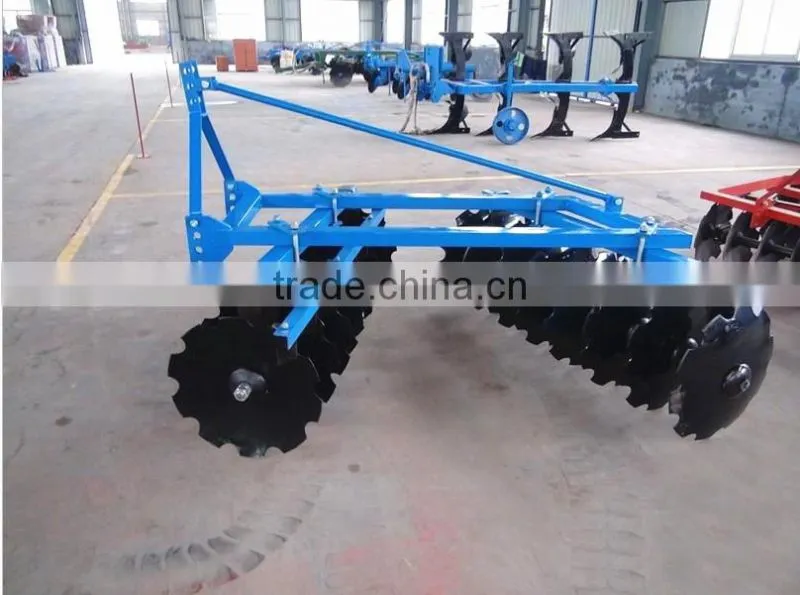

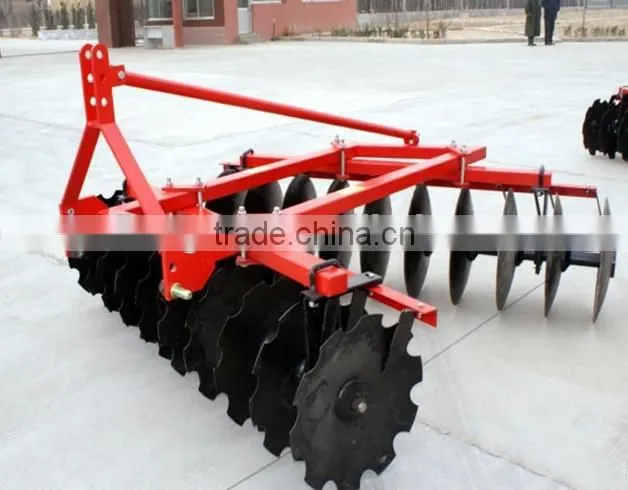

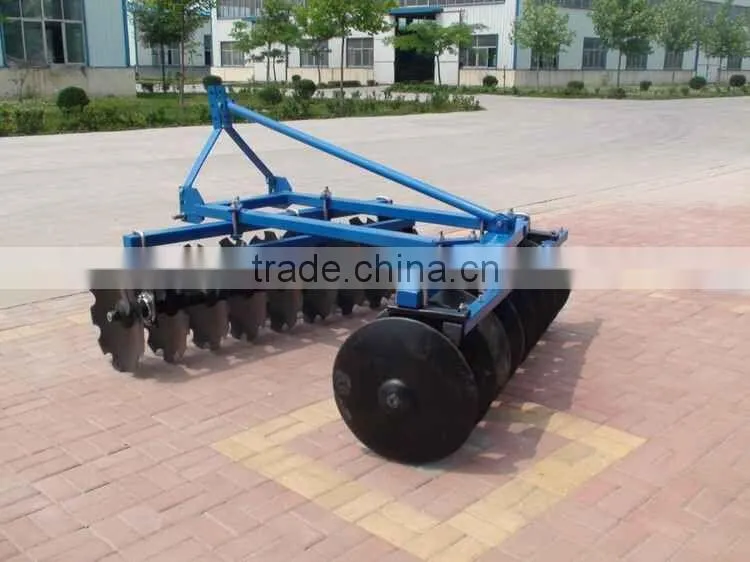

Related light disc harrow
Related heavy harrow
- Longtao offer third party inspection service such as B.V, SGS, COI etc.
- OEM accepeted, customized available.
- Sample available, engineer overseas available for wholesaler.
- Warranty: 24 months warranty, if problem caused by quality factor, we will send you free spar e parts by air within one week
- Delivery time: we deliver within 7-10 days after getting deposit.
- Dealership: We search for long-term dealership, price and quality are good, enough spare parts can be provided.
- Third party: Each machine was tested before shipping, we allow third-party (such as BV, SGS, COI etc.) to test the machine and factory before shipping.
- We accept FOB, CIF, CNF, DDU & DDP. we can help shipping.
- CE, ISO approved.

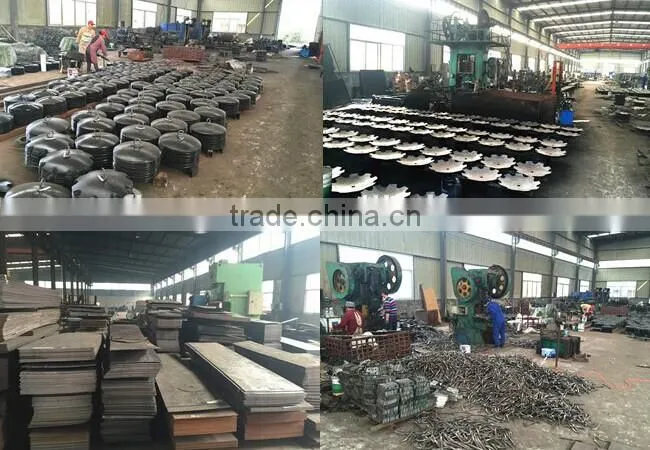

Established in 1998, and changed to existing name in 2002, Weifang Longtao Machinery is a professional manufacturer engaged in development, production, sale and service of mining machinery, farm machinery and mechanical machining.
Our main products include underground mining loader, underground transport trucks,mining drilling rig rock breaker,hay baler,lawn mower,tractor front loader with backhoe,wood chippers, power tillers, farm tools and varieties, etc. The annual output amounts to 150,000 units. We also do processing with sample, drawings or materials supplied, and OEM orders are welcome
