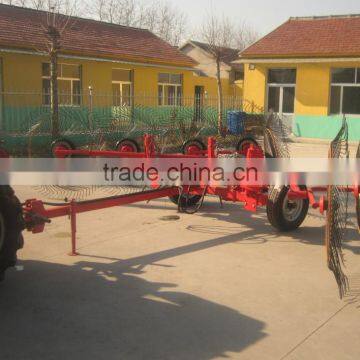

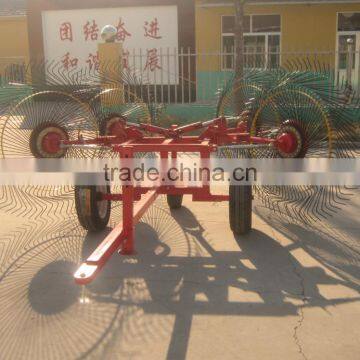

High Quality Tractor Trailed Hydraulic Hay Rake
Features:
9LZ series hydraulic disk rake using the latest design style, the wheeled tractor traction, working parts to take tine refers to the plate, the machine by referring to disc in order to the latter refers to the plate, until form a loose, ventilation article grass. Change refers to the Angle of plate or to adjust the width of article grass. Long tine for spring steel teeth, sturdy and durable, can independently effect is good, copying performance is strong. With tension spring to control the pressure refers to the plate on the ground, can according to crops and ground conditions, through the tensile adjustment plate adjustment ground pressure. This machine has simple structure, convenient operation, the use of reliable, less failure, high efficiency, operation quality. Maintenance is simple, dynamic performance is good. Transportation can hug plate of hoisting, will use the tire walk, equipment can adjust, can independently to the width of the ease of use.
Parameters:
Model | 9LZ-3 | 9LZ-4 | 9LZ-4.8 |
Dimension(m)(L×W×H) | 2.3×3.6×1.5 | 2.8×4.9×1.5 | 3.6×5.3×1.5 |
Weight(kg) | 160 | 300 | 360 |
Working speed(km/h) | 5 | 10 | 15 |
productivity(h/h) | 1 | 1.5-3.5 | 3-5 |
working width(m) | 3 | 4 | 4.8 |
No of rake plate | 4 | 6 | 8 |
Plate diameter(m) | 1.46 | 1.46 | 1.46 |
No of teeth for each rake plate(pc) | 80 | 80 | 80 |
Missing rate | 1 | 1 | 1 |
swath width(m) | 1-1.5 | 1-1.5 | 1-1.5 |
Matched powered | 20-40hp | 30-50hp | 40-75hp |
Linkage | Rear 3 point linkage | ||
Equipment width during transport(m) | 3.2 | 3.2 | 3.2 |
Equipment height during transport(m) | 3 | 4.3 | 5 |
1.Q: Full price list for these products
A:If you need the price list for these products, please notify the product model so that i can quote you accordingly.
Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Export quantity
A:20-30 units of 40ft container per month.
3. Q: Business terms
A:
Shipment time: 15-30days after your payment
Shipment: By sea
Loading port: qingdao port, China
Destination port: ...To be advised
Payment: By bank transfer
Warranty: 2 year
4. RE: CE
A: Most of our products are certified by CE.
5.Q:Sample test
A:Now our mining with agri machines are exported in large quantity.
If you need one sample for test, we advise you to get this sample as test .
6.Q:Why choose Longtao for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1.More Professional Sales staffs to guarantee the better service
2. More Mining machinery and farming machines for your choice
3. More New products into your range to avoid price competion
4.Larger quantity production and shipment
5.Better quality to guarantee better Credit.
6.More stick quality checking before shipment.
7.More reasonable after-sales service terms.
8.Largest manufacturer of tractor mower;
9.Largest manufacturer of underground loader, we have own professional factory in China;
7.Q:- How can I become a dealer in my area?
A:- If you are qualified, you may apply for a dealership. We choose reliable partners for a long term business cooperation.
Welcome to contact us for more details!!!
