Home > Transportation > Tractor & Parts > Tractor > Tractor 75hp 4X4 WD or 4X2 WD, Hot Sale With Good Performance Fro Export

Tractor 75hp 4X4 WD or 4X2 WD, Hot Sale With Good Performance Fro Export

Tractor 75hp 4X4 WD or 4X2 WD, Hot Sale With Good Performance Fro Export thumbnail-1
Tractor 75hp 4X4 WD or 4X2 WD, Hot Sale With Good Performance Fro Export thumbnail-2
Tractor 75hp 4X4 WD or 4X2 WD, Hot Sale With Good Performance Fro Export photo-1
Tractor 75hp 4X4 WD or 4X2 WD, Hot Sale With Good Performance Fro Export photo-2
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Jintai Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO OR SHANGHAI CHIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 75HP
Certificate CE
Brand Name JINTAI
Model Number TY754
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas



Tractor brief introduction:

The Main Specification of Bomr 70hp tractor
Tractor Model  700 704 750 754
General Specification Driver Type 4×2 4×4 4×2 4×4
Length×width×Height(mm) 4520×1885×2450 4520×2135×2480 4520×1885×2450 4520×2135×2480
Traction force(KN) 13.1 15.4 14 16.5
Steering Hydraulic Hydraulic Hydraulic Hydraulic
Wheel base(mm) 2342 or 2353 2314 or 2325 2342 or 2353 2314 or 2325
Front wheel tread(mm) 1400-1900 1569-2005 1400-1900 1569-2005
Rear wheel tread(mm) 1500-2100 1500-2100 1500-2100 1500-2100
P.T.O.Max.Power(Kw)
Ground clearance(mm) 360 370 360 370
Engine Type 4JR3AT70X 4JR3AT70X 4JR3AT75X 4JR3AT75X
Bore×Stroke(mm) 105×135 105×135 105×135 105×135
Rated revolution (r/min) 2200 2200 2200 2200
Max.torque(n.m) 260 260 260 260
Speed of Max.torque r.p.m. 1500-1700 1500-1700 1500-1700 1500-1700
Transmission Clutch Dual-stage clutch
Gear box 12F+4R
Working device Hydraulic lifter tilling depth control Forced buried
Max.lifting capacity( KN ) 12.4 12.4 13.3 13.3
Suspension type Class 2 3-Point hitch
Speed of P.T.O.(r/min) stardard:760/1000;optional:540/1000;760/850 stardard:8pins,optional:6pins or 21pins
Notice:All above parameters are subject to change without notice because of rapid development of products.



The characteristic of tractor from 70hp to 100hp

  1. Our tractors have chinese famous engine; the egine has the strong power and high quality.
  2. Gearbox has 12 forward shifts and 4 reverse shifts.
  3. The side shift control made the shifting more comfortable and humanistic.
  4. Gearbox and rear axle use engagement sleeve shift. Shifting flexibly and stably, never neutral
  5. Hydraulic steering system has independent oil circuit.
  6. Independent PTO shaft has so many speed of rotation to choose. For example, 540/760/850/1000. It can meet customer’s different requirements when using tractor in the farm.
  7. Pedal operated hydraulic driving brake system and hand shank operated mechanical parking brake system, made the brake system is safety and reliable.
  8. Force buried lifter (force, position comprehensive control and floating control) is using reliably and mending conveniently. Hydraulic system use oil separate structure, which has strong lifting capacity. It matches with many large agricultural implements.
  9. 1 or 2 pair hydraulic outputs can be chose. And air-brake can be chose.

10. Use 4 planetary wheeled differential, transmission stably and reliably.

11. Our tractor adopt underneath double diesel tank. The diesel tank’s volume is large, which reaches 150L. And it is satisfied with using tractors for long-time.

12. Reinforced 3 point-suspension postposition is stronger, using reliable and long life. The bottom tie rod can float





Company Information



We are a factory of producing site dumpers, wheel loaders, tractors and other farm machines, all products especially for global export market with advanced design,

good quality parts and reasonable price;



Pls contact Mr david 86-15318957289

and you are welcomed to vist our factory any time.

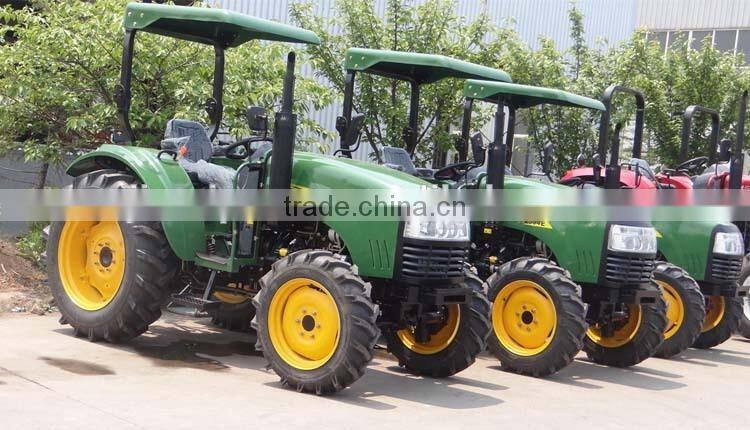

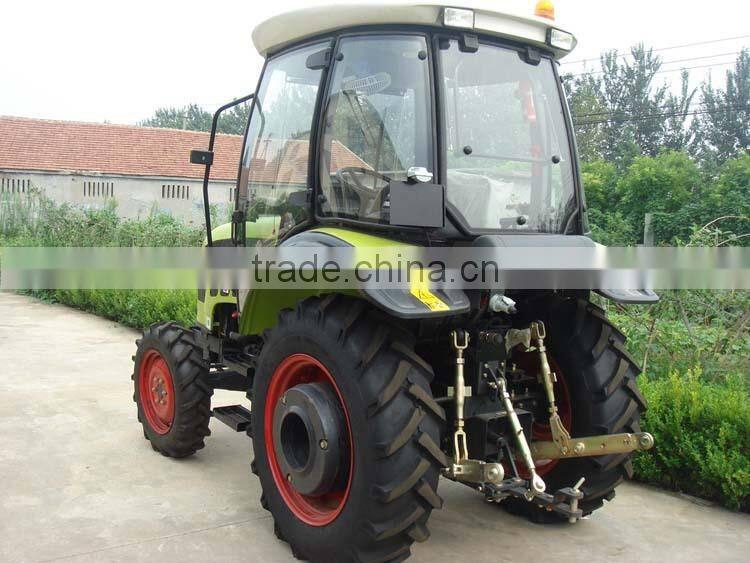

Photos

 tractor 75hp 4X4 WD or 4X2 WD, Hot Sale with good performance fro exporttractor 75hp 4X4 WD or 4X2 WD, Hot Sale with good performance fro exporttractor 75hp 4X4 WD or 4X2 WD, Hot Sale with good performance fro exporttractor 75hp 4X4 WD or 4X2 WD, Hot Sale with good performance fro exporttractor 75hp 4X4 WD or 4X2 WD, Hot Sale with good performance fro export



Why choose us?



1) CE,BV,SGS,ROPS and FOPS verified.



2) We are a tractor manufacturer with 10-year experience.



3) Customers-focused,anytime,any question we will reply you ASAP.



4) All wheel loaders have best premium quality and reasonable price.



5) Providing a one year warranty for after-sales service.



6) Easy-demaged components are not included in warranty.



7) Delivery term:within 15 days after down payment.

 8)integrated customer follow-up system had been built that helping us to provide premium after-sales service,saving your precious time.
