75hp 4WD, Wheel Tractor, Farm Tractor Hot Sale, Factory Supply

75hp 4WD, Wheel Tractor, Farm Tractor Hot Sale, Factory Supply thumbnail-1
75hp 4WD, Wheel Tractor, Farm Tractor Hot Sale, Factory Supply thumbnail-2
75hp 4WD, Wheel Tractor, Farm Tractor Hot Sale, Factory Supply photo-1
75hp 4WD, Wheel Tractor, Farm Tractor Hot Sale, Factory Supply photo-2
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Jintai Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO OR SHANGHAI CHIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Certificate CE
Brand Name JINTAI
Model Number TY754/704
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas



Tractor brief introduction:

Model

TY754

Type

4WD Wheeled Type

Length(to the front ballast)

4052mm

Width

1900mm

Height (to the exhaust vent)

2690mm

Front Wheel Tread

1455mm

Rear Wheel Tread

1510mm

Axle Base

2278mm

Min. Ground Clearance

350mm

Structure weight

3010kgs

Rear ballast

170kg,340kg,510kg,(optional)

Rated traction force

1500kgs

Engine Model

4105

Engine Type

4-Cylinder

Cooler type

Water

Stroke

4 Stroke

Rated Power

55.1km

Rated Speed

2200r/min

Fuel

Diesel

Front Wheel Tyre

8.3-24

Rear Wheel Tyre

14.9-30

Clutch

Dual-stage clutch

Steering

Power steering

Suspension Type

3-point links

Type and Rev

Semi-independent Type 540/1000

Spline Size

F35 Rectangle Spline with 6 teeth
The Main Specification of Bomr 70hp tractor
Tractor Model BOMR 700 BOMR704 BOMR750 BOMR754
General Specification Driver Type 4×2 4×4 4×2 4×4
Length×width×Height(mm) 4520×1885×2450 4520×2135×2480 4520×1885×2450 4520×2135×2480
Traction force(KN) 13.1 15.4 14 16.5
Steering Hydraulic Hydraulic Hydraulic Hydraulic
Wheel base(mm) 2342 or 2353 2314 or 2325 2342 or 2353 2314 or 2325
Front wheel tread(mm) 1400-1900 1569-2005 1400-1900 1569-2005
Rear wheel tread(mm) 1500-2100 1500-2100 1500-2100 1500-2100
P.T.O.Max.Power(Kw)
Ground clearance(mm) 360 370 360 370
Engine Type 4JR3AT70X 4JR3AT70X 4JR3AT75X 4JR3AT75X
Bore×Stroke(mm) 105×135 105×135 105×135 105×135
Rated revolution (r/min) 2200 2200 2200 2200
Max.torque(n.m) 260 260 260 260
Speed of Max.torque r.p.m. 1500-1700 1500-1700 1500-1700 1500-1700
Transmission Clutch Dual-stage clutch
Gear box 12F+4R
Working device Hydraulic lifter tilling depth control Forced buried
Max.lifting capacity( KN ) 12.4 12.4 13.3 13.3
Suspension type Class 2 3-Point hitch
Speed of P.T.O.(r/min) stardard:760/1000;optional:540/1000;760/850 stardard:8pins,optional:6pins or 21pins
Notice:All above parameters are subject to change without notice because of rapid development of products.



The characteristic of tractor from 70hp to 100hp

  1. Our tractors have chinese famous engine; the egine has the strong power and high quality.
  2. Gearbox has 12 forward shifts and 4 reverse shifts.
  3. The side shift control made the shifting more comfortable and humanistic.
  4. Gearbox and rear axle use engagement sleeve shift. Shifting flexibly and stably, never neutral
  5. Hydraulic steering system has independent oil circuit.
  6. Independent PTO shaft has so many speed of rotation to choose. For example, 540/760/850/1000. It can meet customer’s different requirements when using tractor in the farm.
  7. Pedal operated hydraulic driving brake system and hand shank operated mechanical parking brake system, made the brake system is safety and reliable.
  8. Force buried lifter (force, position comprehensive control and floating control) is using reliably and mending conveniently. Hydraulic system use oil separate structure, which has strong lifting capacity. It matches with many large agricultural implements.
  9. 1 or 2 pair hydraulic outputs can be chose. And air-brake can be chose.

10. Use 4 planetary wheeled differential, transmission stably and reliably.

11. Our tractor adopt underneath double diesel tank. The diesel tank’s volume is large, which reaches 150L. And it is satisfied with using tractors for long-time.

12. Reinforced 3 point-suspension postposition is stronger, using reliable and long life. The bottom tie rod can float





Company Information



We are a factory of producing site dumpers, wheel loaders, tractors and other farm machines, all products especially for global export market with advanced design,

good quality parts and reasonable price;



Pls contact Mr david 86-15318957289

and you are welcomed to vist our factory any time.





Photos

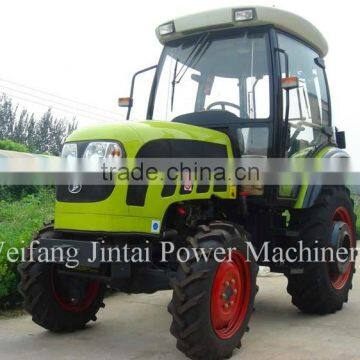

 75hp 4WD, wheel tractor, farm tractor Hot Sale, factory supply75hp 4WD, wheel tractor, farm tractor Hot Sale, factory supply75hp 4WD, wheel tractor, farm tractor Hot Sale, factory supply75hp 4WD, wheel tractor, farm tractor Hot Sale, factory supply75hp 4WD, wheel tractor, farm tractor Hot Sale, factory supply75hp 4WD, wheel tractor, farm tractor Hot Sale, factory supply





Why choose us?

1. More than 500 workers.

2. With the occupying area of 2500 square meters.

3. More than 10 years experiences in the industry of construction machine and agricutural machine.

4. Competitive price and high quality.

5. One hour reaches Qingdao port.

6. All the inquiries will be replied within 12 hours
