Home > Transportation > Tractor & Parts > Tractor > Farm Tractor 304 ,4x4wd, One Cyinder Engine , 4wd, Belt Transmission Farm Tractor

Farm Tractor 304 ,4x4wd, One Cyinder Engine , 4wd, Belt Transmission Farm Tractor

Farm Tractor 304 ,4x4wd, One Cyinder Engine , 4wd, Belt Transmission Farm Tractor photo-1

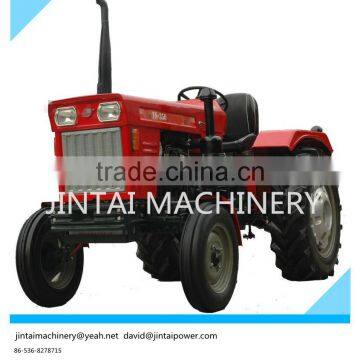

Farm Tractor 304 ,4x4wd, One Cyinder Engine , 4wd, Belt Transmission Farm Tractor photo-2
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO OR SHANGHAI CHIAN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Certificate CE
Brand Name JINMA
Model Number TY304
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas



Product Description



Specifications



Tractor  1) creeping shift,double stage clutch  2) dual-way hydraulic output  3) hydraulic steering





         Type

TY304



       Type

4×4     Wheeled  Type




 Over  all  dimension

 Length

2988/3074



 Width

1340/1222/1296/1560



 Height

1080



Tread

 Front Wheel

910/1000 /1200Fixed




 Rear Wheel

 1000/1200Adjusted




  Wheel Base

1520/1606




Min.Ground Clearance

223




(kg)Dry Mass

Six Shift :1000(small chassis ) or 1260

     Eight Shift:1290



Engine

 Model

JD2102T





Double cylinder ,Vertical, Water Cooled and 4-stroke



(kw)Rated Power

22.1




(r/min)Rated Rev.

2400




 Fuel

Diesel  Oil



Tire

Front Wheel

5.0-12



 Rear Wheel

7.5-16



Clutch

  Dry-friction,single stage or Dry-friction,Two Stage




                                                           Steering

 Mechanical Type/Mechanical Type or Hydraulic Type




      Transmission Box

(3+1)×2or(4+1)×2or(4+1)×2×2(with  creeping Shift)




    Suspension Type

    Post Positioned Tri-point suspension Cat a or1




 PTO shaft

(r/min)                       Type and Rev

 Non-independent Type 540/720 or Semi-independent Type 540/1000,540/720





                       Spline Size

135Rectangle Spline With 6 teeth  (6×28.91×34.79×8.69)
