120hp 4WD Farm Tractors, JT1204 With Good Quality

120hp 4WD Farm Tractors, JT1204 With Good Quality thumbnail-1
120hp 4WD Farm Tractors, JT1204 With Good Quality thumbnail-2
120hp 4WD Farm Tractors, JT1204 With Good Quality photo-1
120hp 4WD Farm Tractors, JT1204 With Good Quality photo-2
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Jintai Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO OR SHANGHAI CHIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 95KW
Certificate CE
Brand Name JINTAI
Model Number JT1204
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas



Product Description




he Main Specification of BONA 110hp to 130hp tractor

Tractor Model

1104

1204

1254

1304

General Specification

Driver Type

4×4

4×4

4×4

4×4

Length×width×Height(mm)

5015×2335×2970

5015×2335×2970

5015×2335×2970

5015×2335×2970

Traction force(KN)

26

27

29

32

Steering

hydraulic

hydraulic

hydraulic

hydraulic

Wheel base(mm)

2688.5

2688.5

2688.5

2688.5

Front wheel tread(mm)

1672-2003(1760)

1672-2003(1760)

1822-2153(1910)

1822-2153(1910)

Rear wheel tread(mm)

1662-2262(1862)

1662-2262(1862)

1662-2262(1862)

1662-2262(1862)

P.T.O.Max.Power(Kw)

71.25

71.25

81.7

81.7

Ground clearance(mm)

465

465

465

465

Engine

Type

YTO 110HP

YTO 110HP

YTO 110HP

YTO 110HP

Bore×Stroke(mm)

108×125

108×125

110×135

110×135

Rated revolution (r/min)

2300

2300

2300

2300

Max.torque(n.m)

≥282

≥340

≥350

≥370

Speed of Max.torque r.p.m.

1700-1800

1700-1800

1600-1800

1600-1800

Transmission

Clutch

Dual-stage clutch

Gear box

12F+4R

Working device

Lifter tilling depth control

Height adjustable, floating control

Max.lifting capacity( KN )

≥28

Suspension type

Class 2  3-Point hitch

Speed of P.T.O.(r/min)

stardard:760/1000;optional:540/760,540/1000

Notice:All above parameters are subject to change without notice because of rapid development of products

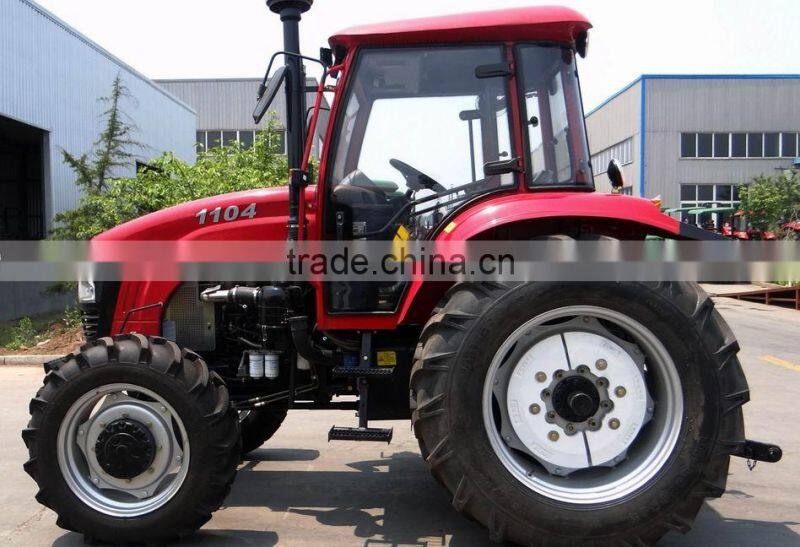

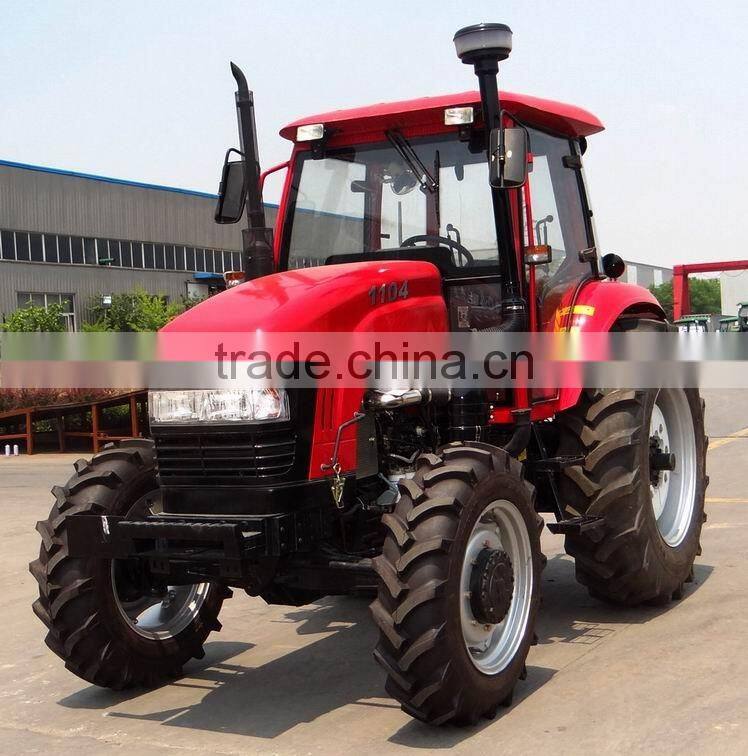

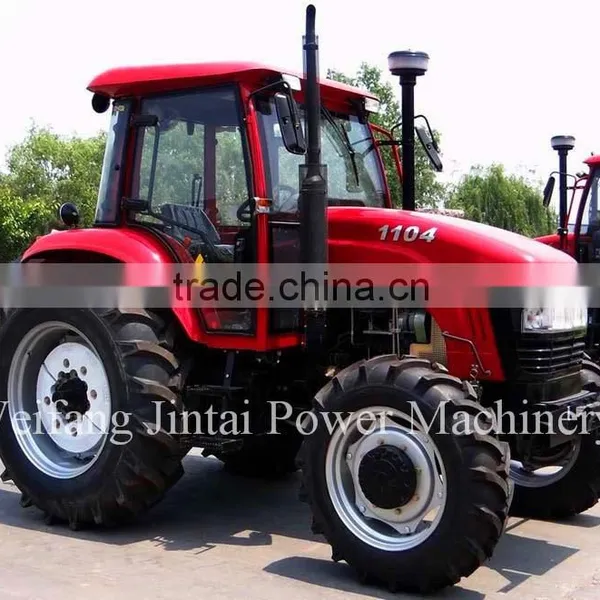

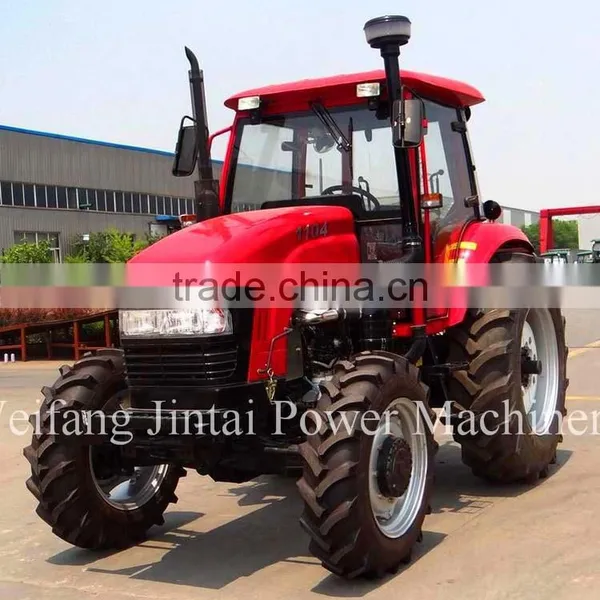

Photos

 120hp 4WD farm tractors, JT1204 with good quality120hp 4WD farm tractors, JT1204 with good quality120hp 4WD farm tractors, JT1204 with good quality
