Mini 12HP Farm Tractor, 4X2 Wheel Drive , With Good Quality and Farm Implement

Mini 12HP Farm Tractor, 4X2 Wheel Drive , With Good Quality and Farm Implement thumbnail-1
Mini 12HP Farm Tractor, 4X2 Wheel Drive , With Good Quality and Farm Implement thumbnail-2
Mini 12HP Farm Tractor, 4X2 Wheel Drive , With Good Quality and Farm Implement photo-1

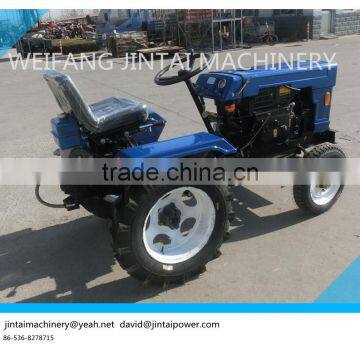

Mini 12HP Farm Tractor, 4X2 Wheel Drive , With Good Quality and Farm Implement photo-2
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Weifang Jintai Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO OR SHANGHAI CHIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Certificate CE
Brand Name JINTAI
Model Number JT-15
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas



Product Description



10-15HP Specifications

1).OVERALL UNIT
Transmission box: special steel casting transmission
Main dimension(mm): L 2100 x W 1000x H 1100
Wheelbase:(mm) 1150
Wheel tread:
front wheel(mm) 850
Rear-wheel(mm) 800
Mini-ground clearance(transmission bottom) (mm) 200
Mini-turning circus radius:(m) 2
Structural weight:(kg) 420
Theoretical speed: km/h
First gear 2.24
second gear 3.48
third gear 5.62
First reverse gear 1.72
Second reverse gear 6.97

2) ENGINE MAIN SPECIFICATION
Engine type: horizontal, single cylinder, four stroke
Rated turning speed: r/min 2400
Rated power: HP 10HP 12.5HP 14HP 15HP
Cooling type: evaporative cooling, condense

(3).DRIVE SYSTEM
1.clutch dry type, double , normally jointing and fricting type.
Final drive: single stage spur gear transmission
3.differential: support conical planetary gear reducer
4.transmission: (3+1)*2 cylinder gear drive
5.brake: external shoe type brake
6.drive type between engine and clutch: triangle belt
7.drive type between PTO and hydraulic pump :V-belt

4).TRAVEL AND TURNING SYSTEM
Front axle: adjustable separating type
Tyre type: front wheel 4.00-8/4.0-12
Rear-wheel 6.00-12/6.5-16
Tyre pressure:
Front wheel: 600kpa
Rear-wheel: 250kpa
Steering gear: worming gear type
Toe-in of front wheel(mm): 4~8
Front-wheel camber: 20±30’
king pin inclination: 70±15’
kingpin caster: 30±15’

5.WORKING DEVICE:
Lifting mechanism:
(1) manual(lever lifting, ratchet holding.)
(2)hydraulic lifting
(3)Type:split pump : CBN-E304 gear pump
Safety valve setting pressure(mpa): 16
lifting time(s): ≤2
PTO:
1.type:sidely placed dependent type
2.turning speed :r/min: 1378
3.turning direction: clockwise

6).ELECTRICAL DEVICES
Generator type: flywheel generator 12V 250W
Front headlight: 12V 40W/100W
Indicator: 12V 20W
Double gear switch: JK107

7).MAIN FILLING QUANTITY
Hydraulic tank: L 1.5

We are a professional company which is specializing in generator, constraction machinery and agricultural equipments. The products include diesel generator, Gas generator, Wheel Loader, Dumper, Tractor etc, We can meet different demand for our customers.
David Xin
Tel: 0086-0536-8278715 | Fax: 0086-0536-8278715 | Mob: 0086-15318957289


Photos

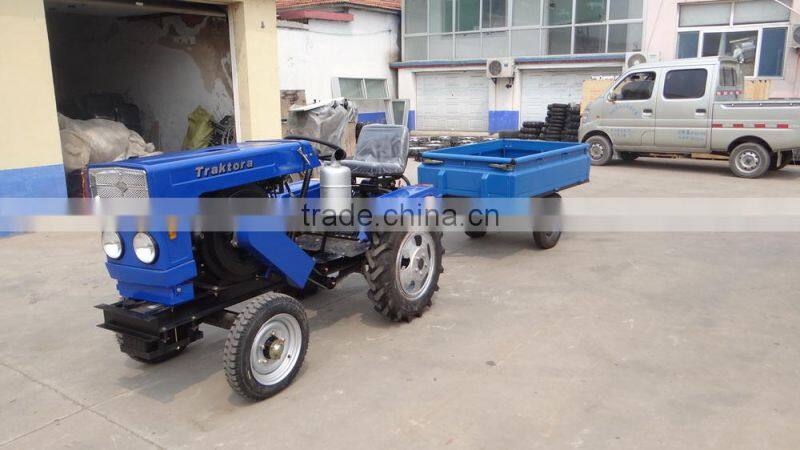

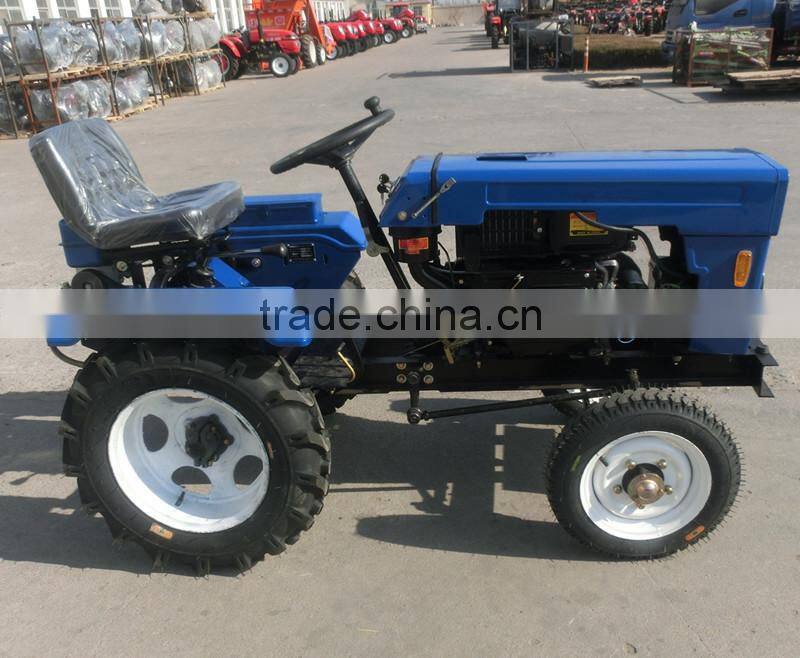

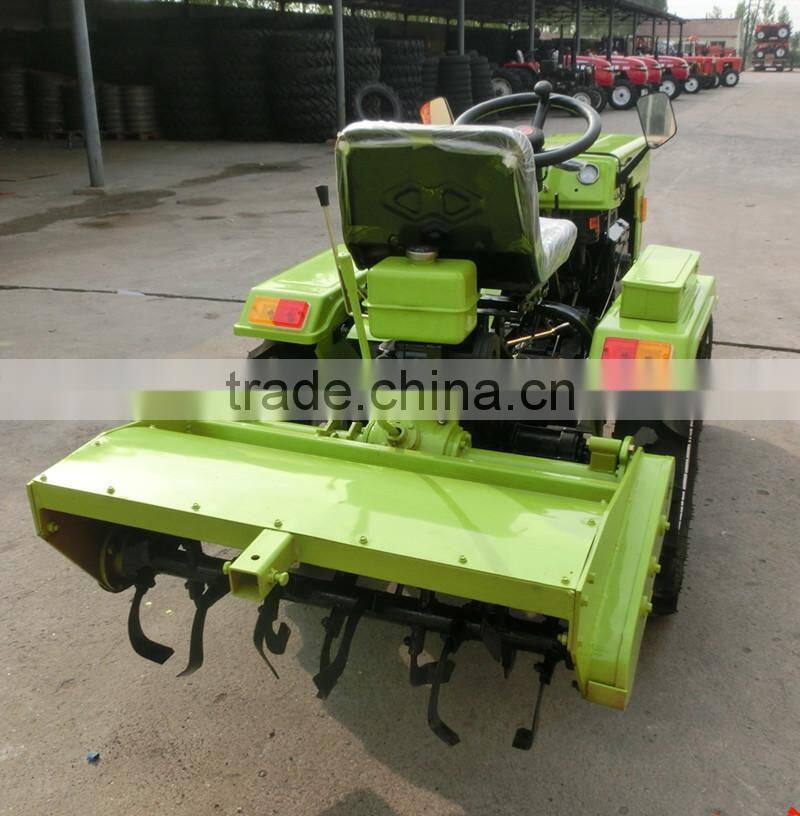

 mini 12HP farm tractor, 4X2 wheel drive , with good quality and farm implementmini 12HP farm tractor, 4X2 wheel drive , with good quality and farm implementmini 12HP farm tractor, 4X2 wheel drive , with good quality and farm implement



Why choose us?

1. More than 500 workers.

2. With the occupying area of 2500 square meters.

3. More than 10 years experiences in the industry of construction machine and agricutural machine.

4. Competitive price and high quality.

5. One hour reaches Qingdao port.

6. All the inquiries will be replied within 12 hours
