4x4 40hp Cheap Compact Garden Small Tractor

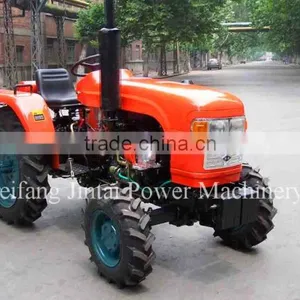

4x4 40hp Cheap Compact Garden Small Tractor thumbnail-1

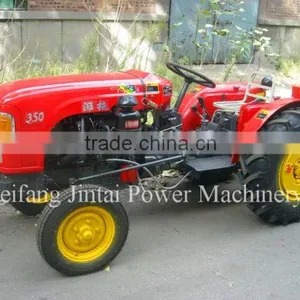

4x4 40hp Cheap Compact Garden Small Tractor thumbnail-2
4x4 40hp Cheap Compact Garden Small Tractor thumbnail-3
4x4 40hp Cheap Compact Garden Small Tractor photo-1

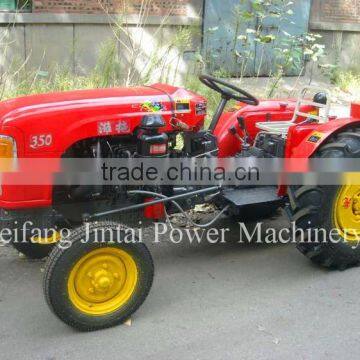

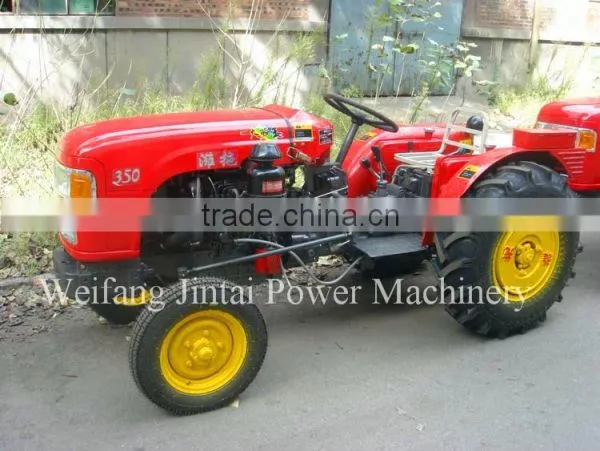

4x4 40hp Cheap Compact Garden Small Tractor photo-2

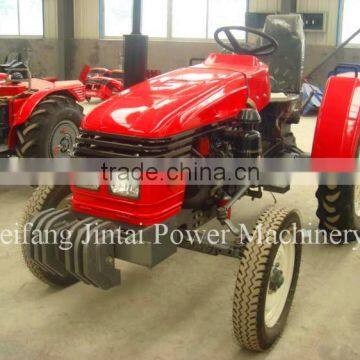

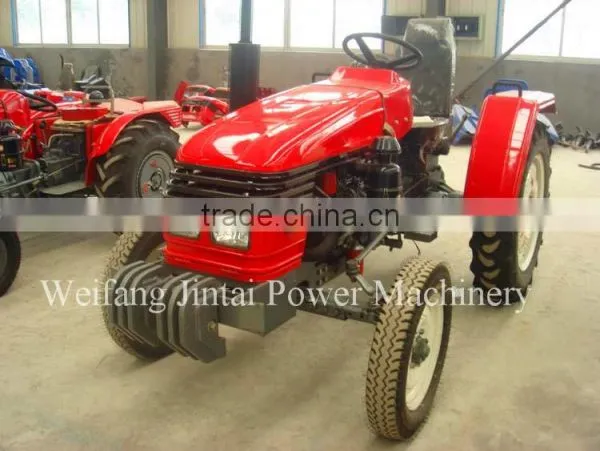

4x4 40hp Cheap Compact Garden Small Tractor photo-3
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Jintai Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO OR SHANGHAI CHIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Certificate CE
Brand Name JINTAI
Model Number TY404
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas



Product Description



 King-garden series of tractors are designed for greenhouse and garden specially. It can be installed on two-cylinder engine or three-cylinder engine or four-cylinder engine; it has jaw-type differential lock; single-side brake and single-speed or two-speed of PTO. The size of tractor is low, short and narrow, so it has compact structure and small turning radius. When working in greenhouse, it can plough and till freely without dead angle. And it can plough deeper and till faster than belt-drive tractor and power tiller. It has more efficiency and better working quality. The tractor can match kinds of implements and fulfills ploughing, fertilizing, crushing and spraying, etc. in vegetable, flower greenhouse and garden. It has all of functions as other normal tractors. So it is an ideal agricultural machine for greenhouse and garden.

Main technical specification



 Model  King-garden TY404
Type  4X4 Wheeled Type
   Length 2760
    Width 1200
Dimensions    Height 1100
of Tractor Tread Front Wheel 960
(mm) Rear Wheel 960
  Wheel Base 1640
  Min. Ground Base 280

Dry Masskg) 980
 Engine  Model 4L23BT/JD490
 Type  Vertical, 4-cylinder, Water Cooled and 4-stroke
 Rated Power(kw)      29.4
Rated Rev.(r/min) 2400
 Fuel   Diesel Oil
Tire Front Wheel 4.50-12
Rear Wheel 9.50-16
Clutch Dry-friction, Single Stage
Steering  Hydraulic Type
Transmission Box (4+1)×2
Suspension Type Post Postitioned Tri-point Suspension Catalogue 0
 PTO Type and Rev.(r/min) Non-independent Type 540
Spline Size I35 Rectangle Spline with 6 teeth(6×28.91×34.79×8.69)
Loading Qty. for container 16 units/40' container

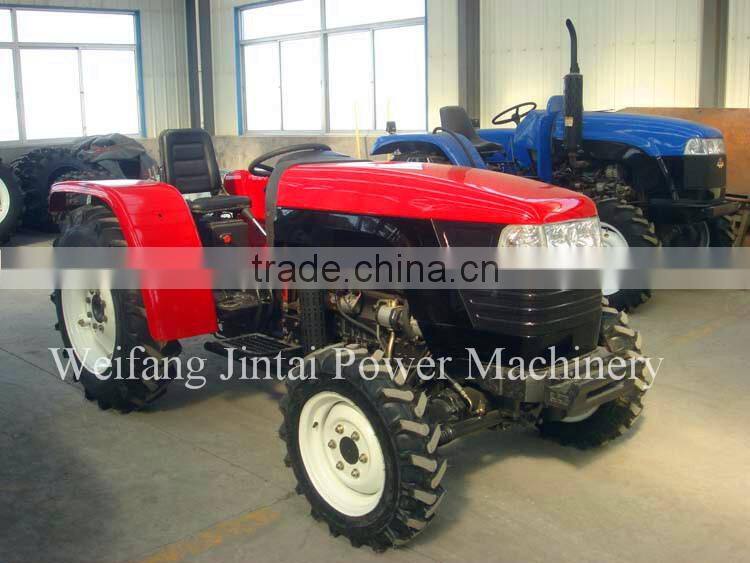

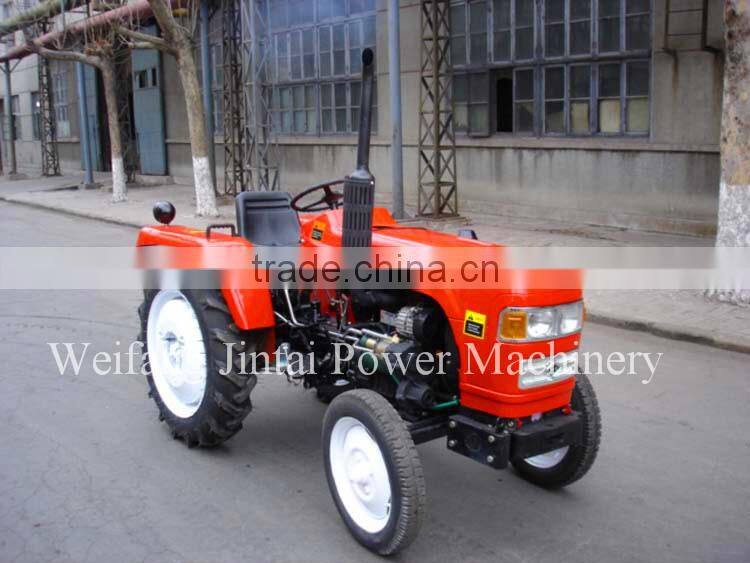

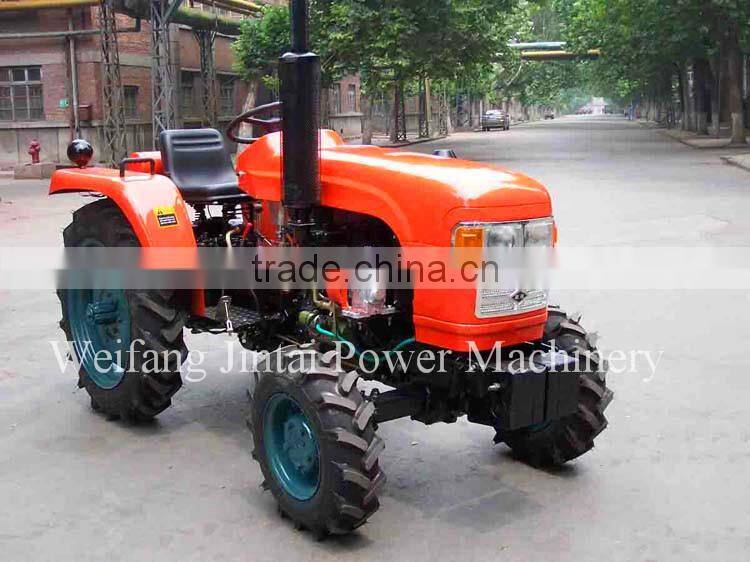

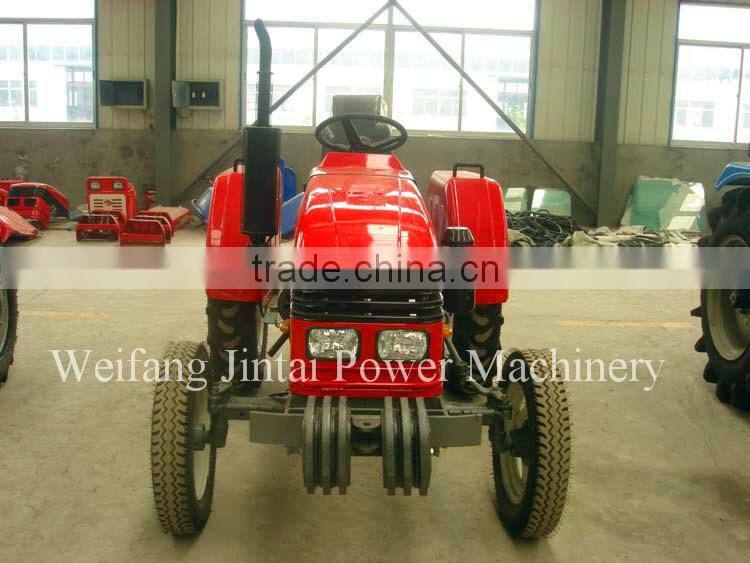

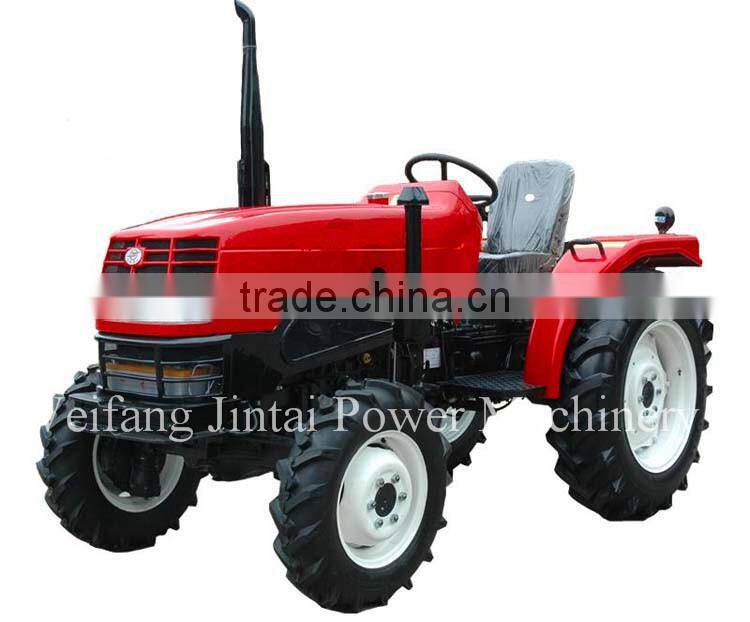

Photos

 4x4 40hp cheap compact garden small tractor4x4 40hp cheap compact garden small tractor4x4 40hp cheap compact garden small tractor4x4 40hp cheap compact garden small tractor4x4 40hp cheap compact garden small tractor

Why choose us?

1. More than 500 workers.

2. With the occupying area of 2500 square meters.

3. More than 10 years experiences in the industry of construction machine and agricutural machine.

4. Competitive price and high quality.

5. One hour reaches Qingdao port.

6. All the inquiries will be replied within 12 hours
