Hot sales of cheap gas generator
1.8--500KW cheap gas generator with world famous brand engine, such as VOLVO, DEUTZ, MAN,RICARDO, WEICHAI, YUCHAI, JICHAI,low oil consumption and low emission.
2. Alternator "STAMFORD" "MARATHON" "Leroy Somer" Brand 100% copper brushless alternator.Protection Class: IP23, Insulation Class:H
3. Super silent: 65-70d(B)A-7M
4. It adopts advanced design idea and advanced technology. Featured with good ecomomic peroformance, low oil consumption, small volume, compact structure, great power, running stability, easy-installation, easy-operation and maintenance.
5. With CHP
6. Automatic controller with ATS. can also connect to grid.
7. It is galvanized. Moistureproof and derusting processing, effectively protect the genset from humid weather
(1)Advantage of cheap gas generator
| 1 | Stability, reliability and easy-service | |||||||
| 2 | Low operating and maintenance cost. CNG gas has a rich high profit, | |||||||
| reserve with low cost and a high rate of return, | ||||||||
| low operation cost, supply of electricity and thermal | ||||||||
| power at the same time, low maintenance cost. | ||||||||
| 3 | Widely used, location to meet customer needs | |||||||
| 4 | Easy-installation, easy-operation and maintenance | |||||||
| 5 | Longer life: Special design engine has longer life and overhaul time of | |||||||
| 3000hours | ||||||||
| 6 | Clean and environmental | |||||||
| 7 | To put anti-rust treatment | |||||||
| 8 | Global warranty | |||||||
2.Technology Data for cheap gas generator
1 |
Type:open skid /soundproof/weatherproof/mobile trailer/container type |
2 |
Output power range: 8---500KW |
3 |
Rated voltage:220/380V,230/400V,240/415V,120/240V |
4 |
Frequency:50/60HZ, Rated speed:1500/1800rpm |
5 |
Power factor:0.8 |
6 |
Output type:AC three phase/single phase |
7 |
Short circuit protection: MCCB air switch |
8 |
Automatic control and automatic transfer switch |
9 |
Fuel: LPG |
10 |
If soundproof, the noise should be 70 d(B)A-7M |
11 |
Connecting type:3PH star, 3PH-DELTA |
12 |
Mechanical or electric governor |
13 |
Filter system: oil, fuel and air filter |
14 |
Accessories: exhaust elbow, bellow, muffler |
3. Technology data for silent 40KVA LPG generator set
Model |
JT-8GFQ------------JT-500GFQ |
|
Structure |
integral |
|
Exciting method |
AVR Brushless |
|
Rated Power (kVA/kW) |
10KVA/8KW---------625KVA/500KW |
|
Rated Current(A) |
14.4A-----------900A |
|
Rated Voltage(V) |
400/230 |
|
Rated Frequency(Hz) |
60/50 |
|
Rated Power Factor |
0.8 LAG |
|
Overall dimension (L x W x H)(mm) |
Different |
|
Net weight (kg) |
800-----12000kgs |
|
Gas Engine |
Model |
4105, 6105, 12V190 ETC |
Type |
I line 4 stroke, electric control ignition, pre-mixed stoichiometry burn |
|
Cylinder number |
6 |
|
Bore x Stroke (mm) |
Different |
|
Air intake mode |
natural, TURBO |
|
CNG gas consumption(cbm/KW.H) |
0.3-0.35 |
|
Rated Power (kW) |
58 |
|
Rated Speed (r/min) |
1800/1500 |
|
Fuel Type |
LPG/NATURAL GAS |
|
Control panel |
Model |
Smartgen 6120K |
Control module |
Smartgen HGM6210 |
|
Operation language |
English, Span, Chinese, Russia |
|
Alternator |
Model |
Different |
Brand |
Stamford , Marathon |
|
Model |
100% cooper |
|
Rated Power (kW) |
50 |
|
Rating(kVA) |
62.5 |
|
Voltage Regulation |
≤1% |
|
Enclosure protection |
IP23 |
|
Insulation class |
H |
|

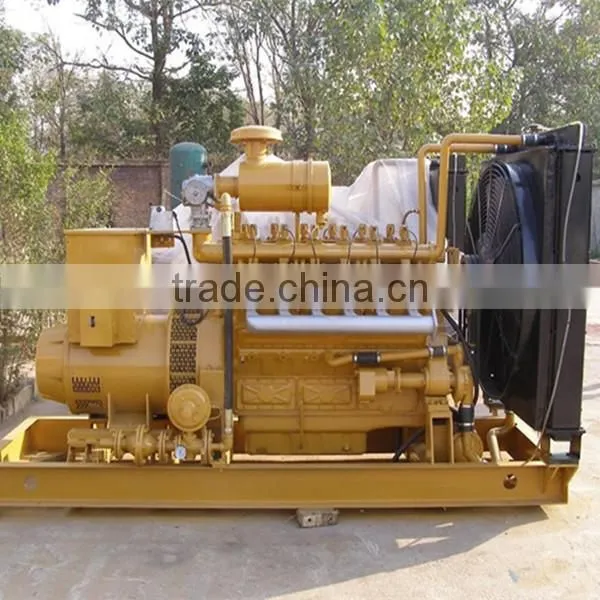

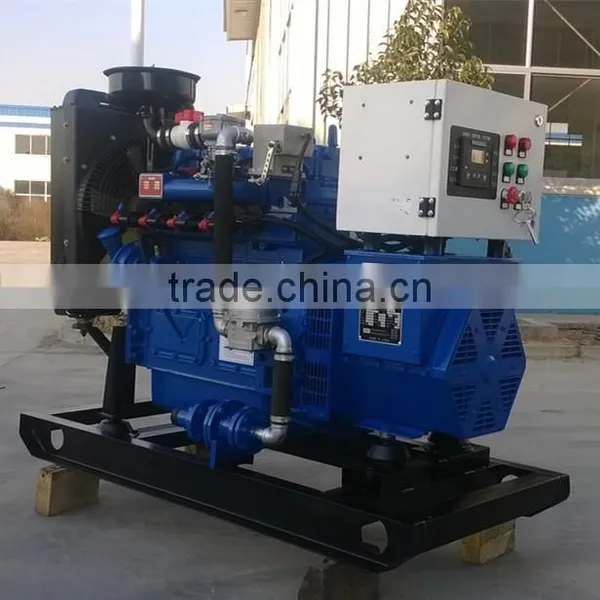

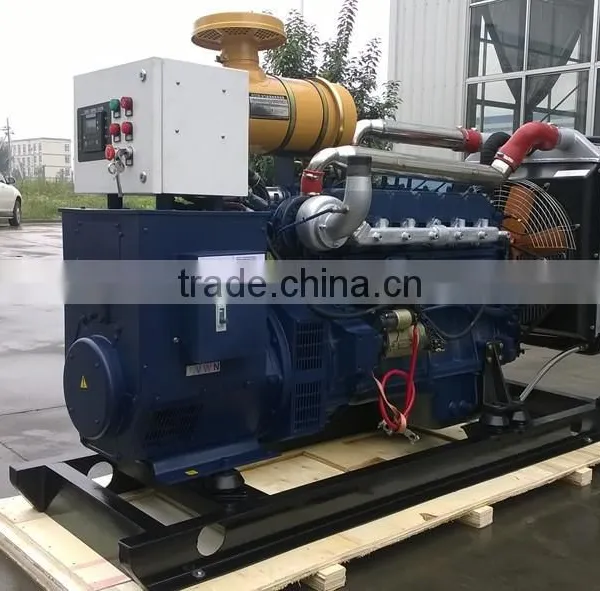

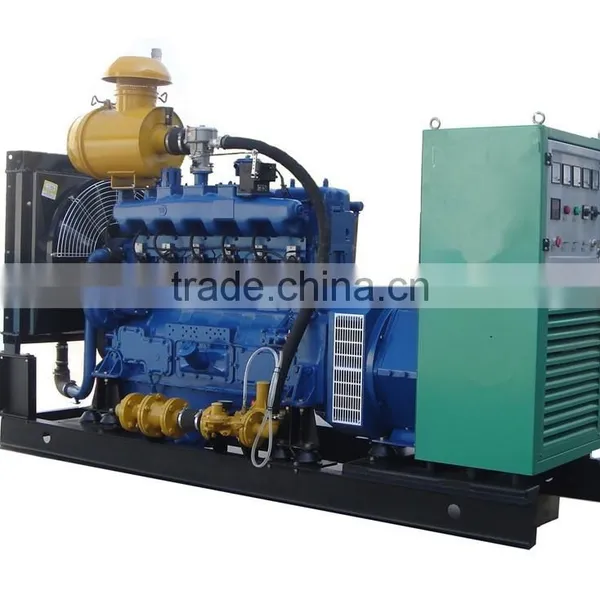

1. Open skid type cheap gas generator

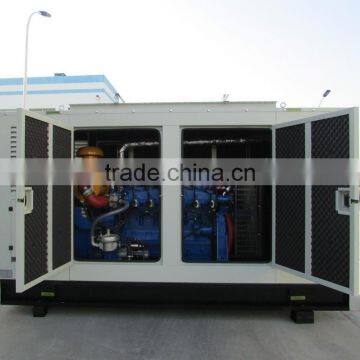

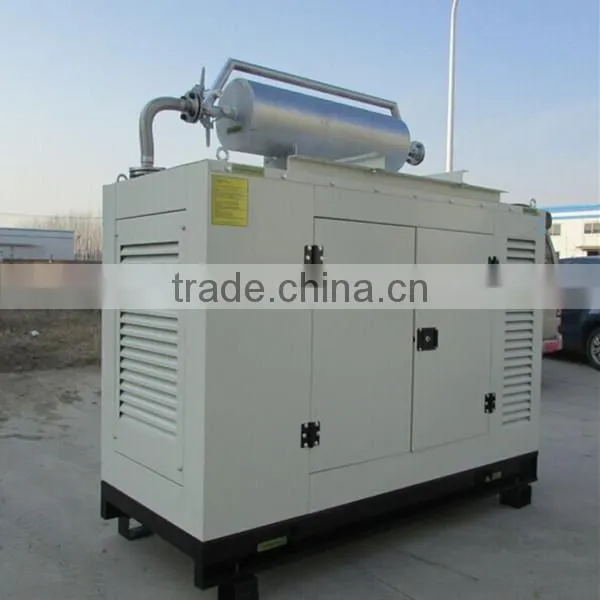

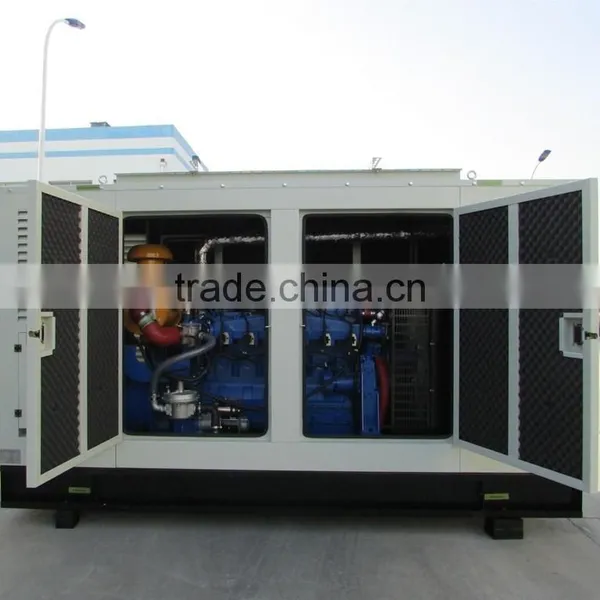

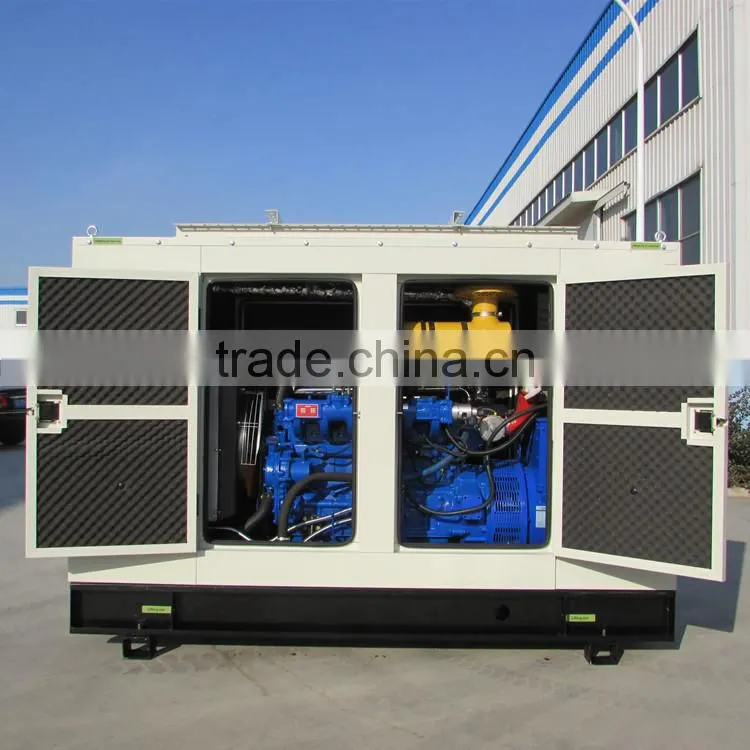

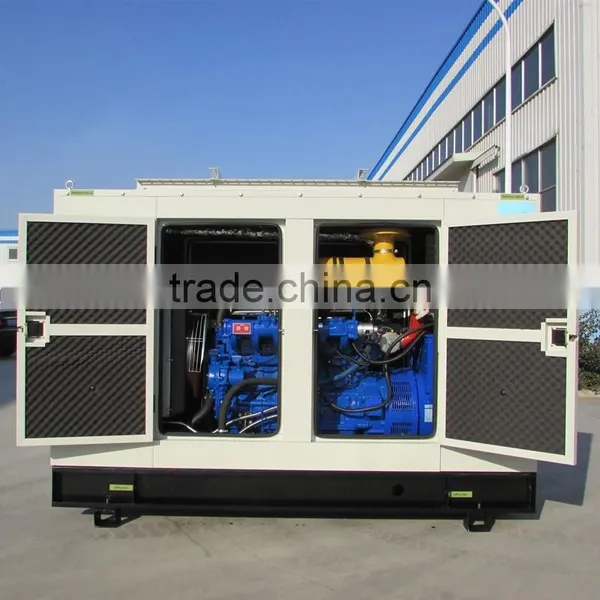

2. Silent cheap gas generator
3. LPG cheap gas generator with CHP
LPG generator exhaust gas temperature can up to 550 degree, it can set comprehensive utilization facilities on exhaust pipelines to recover waste heat fully (such as heating water, oil and so on) to provide heating, bath and other use, increasing economic benefits
4. Different brand cheap gas generator
LPG Generator set spare parts
How can i contact with you?
Linda Wu
Weifang Jintai Power Machinery Co., Ltd.
Tel: +86 536 8278715 Mobile: 86 152 6466 8102
Trade manager: jintaipower
Wechat: lindamachine
WhatsAPP: 0086 152 64668102
Skype: lindamachine
QQ: 1521993639
Weifang Jintai Power Machinery Co., Ltd. is specializing in generator sets, construction machinery and agricultural equipments. The generators include diesel generators and gas generators, its output power from 5KVA to 2000KVA with world famous brand engine.
lPresale: Expert engineers offer technical consultation and assort guidance to our customers, such as choose the generator type, assort, design the generator room, and so on. To solve any questions and offer technical help during any time.
lOnsale: Once we get inform from our customer, we send technical engineers to scene and help to installation and debug the generator, and cooperate with customer to check and accept the generator.
lAfter-sale: 1. Design machine room and the power distribution of the generator.
2. Installation and debug the generator.
3. Train the technical engineer of operating and the maintenance for the customer.
4. Establish record system and offer follow-up service and regular inspection.
5. Offer spare parts and technical help at any time.
