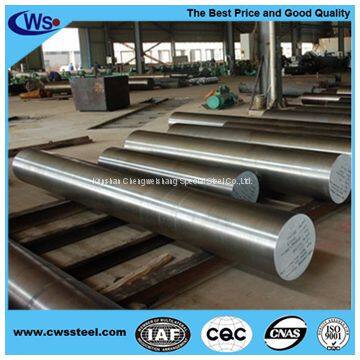

Steel Round Bar 1.2436 Cold Work Mould Steel
- 1000 Ton / Tons per Month
- Shanghai
- T/T
- 30 days
You May Like
Product Details
| Brand Name | CWS-Steel | Place of Origin | China | |
| Model Number | cws-19 | Type | Alloy Steel Bar | |
| Application | Die Steel Bar | Technique | Other, Black, Grinded, Rough Turned, Peeled, Polished | |
| Standard | AISI, DIN, GB | Alloy Or Not | Is Alloy | |
| Special Use | Mold Steel |
Product Description
1.2436 Cold Work Mould Steel
Mechanical Property
Hot work temperature: (1) Start:1010 °C -1090°C (2) End: 930 °C
Annealing temperature: 870 °C - 900 °C
Hardness after annealing HBW: 217-255
Quenching temperature: 930 °C -950 °C
Cooling medium: oil
Tempering temperature: 200 °C - 540 °C
Hardness after tempering HRC: 61-54
Surface conditions:
Black surface/ Grinded/ Machined
Characteristics:
1.2436 is for making high performance cutting, blanking tools up to 4 mm sheet thickness, woodworking tools, thread rolling dies, deep drawing and cold extrusion tools, measuring tools, scraping and trimming tools, deburing tools, moulds for abrasive plastics
Application :
Extrusion dies and casting die for aluminium, magnesium and copper alloy. Main products include: H13, D2, D3, D6, 1.2344, 1.2379, 1.2080, 1.2436 and so on,Contact me if you need more further information!
1.Available sizes : | |
Rolled Flat bar | Rolled Round bar |
Thickness 8-60mm Width:600-610mm | dia. 50-130mm |
Forged flat bar | Forged Round bar |
Thickness:60-200mm Width:100-800mm | dia. 50-400mm |
2.Annealed hardness :≤255HBS | |
3.Properties: | |
Excellent compressive strength and good hardenability | |
High wear resistance | |
Resistance to plastic deformation | |
Cracking and chipping resistance | |
