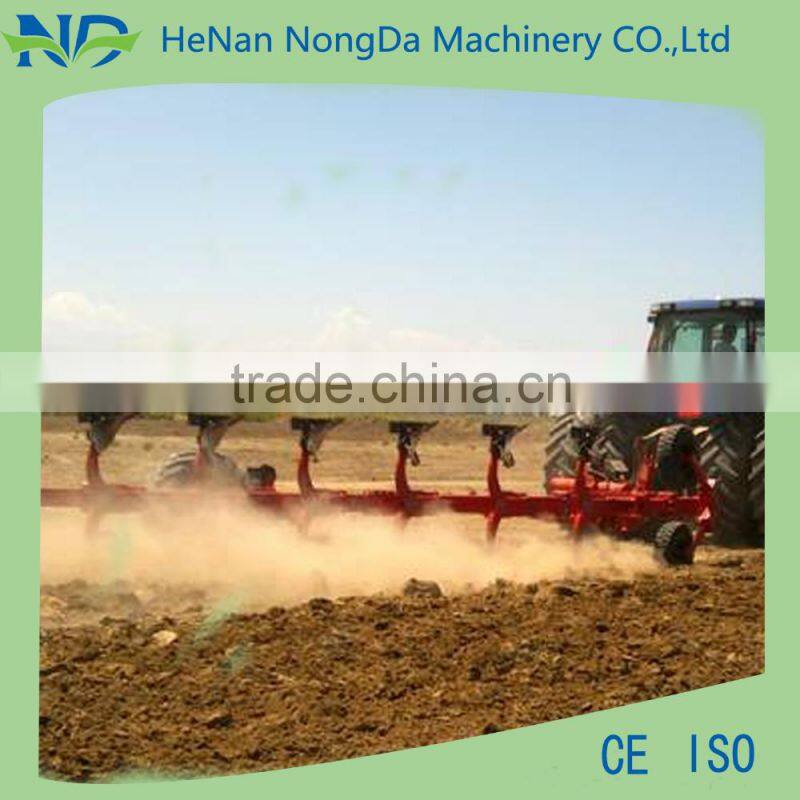

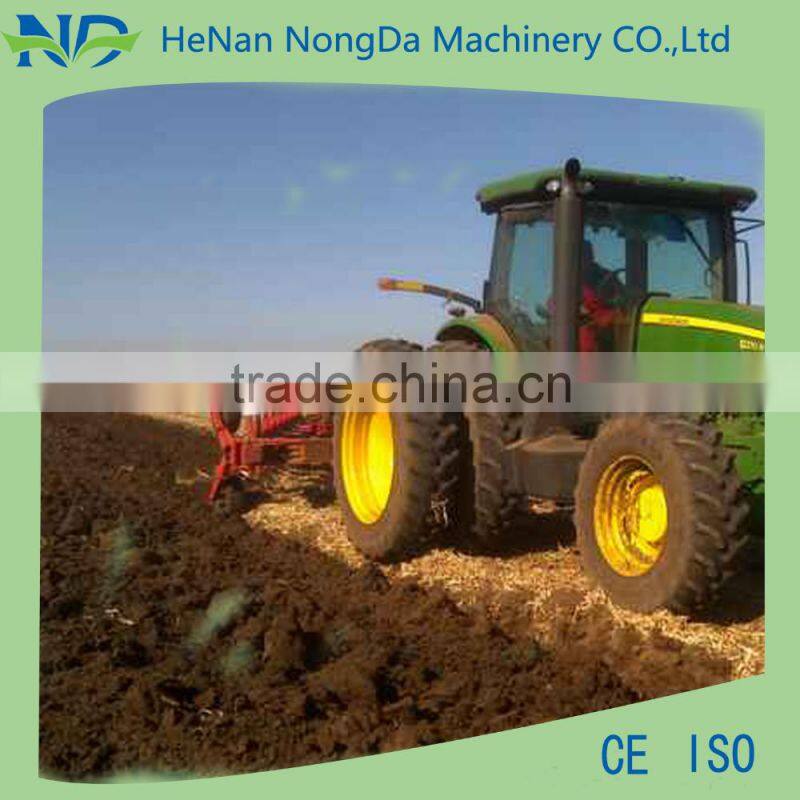

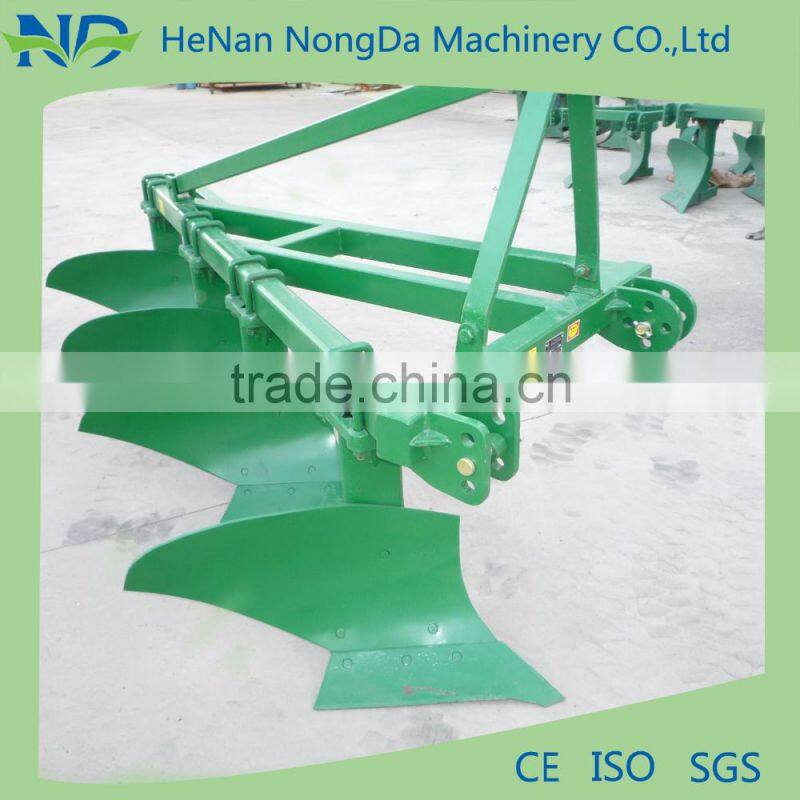

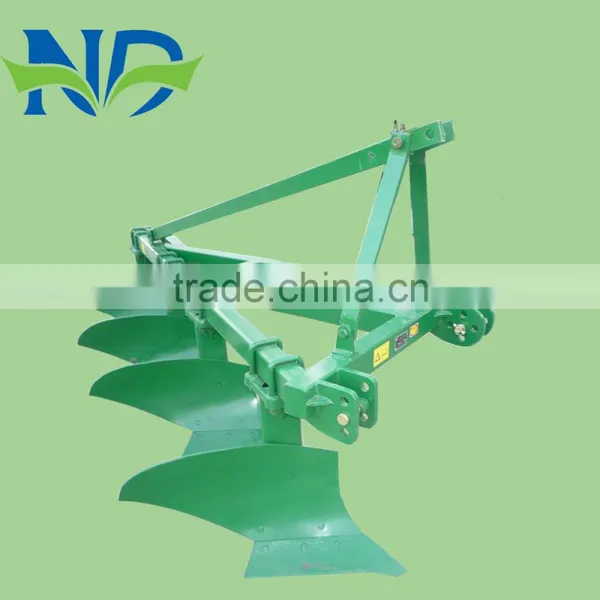

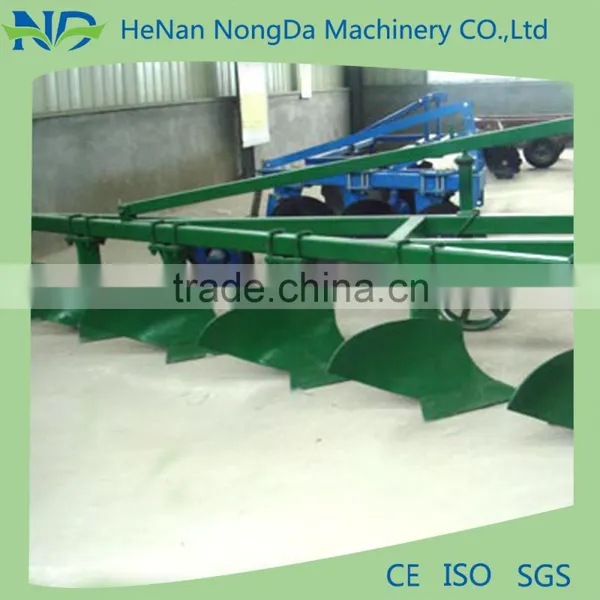

Tractor mounted furrow moldboard plough
SPECIFICATIONS:
furrow moldboard plough
model:ND1L-220
working width:0.4m
working depth:250mm
matched power:15hp
ADVANTAGE:
- The FARMKING MOUNTED M.B. PLOUGH can handle the toughest ploughing job with outstanding penetration performance.
- It is designed to work in all type of soil for basic function such as soil breaking, soil raising and soil turning.
- It can be used in stony & rooted soils.
FEATURES:
- The under frame and unit-to-unit clearance are adequate to cope with trashy conditions.
- Adding an extra furrow or repositioning units to allow for extra clearance is quick and easy.
- The plough has special wear-resistance steel bottoms with bar points for toughest ploughing jobs.
- Bar points bottoms ensure longer life as they can be extended or reserved or re-used till the last possible lenght.
TECHNICAL SPECIFICATIONS:
Model |
unit |
ND1L-220 |
ND1L-320 |
ND1L-420 |
ND1L-520 |
ND1L-225 |
ND1L-325 |
ND1L-425 |
ND1L-525 |
Number of furrows |
|
2 |
3 |
4 |
5 |
2 |
3 |
4 |
5 |
Working width |
m |
0.4 |
0.6 |
0.8 |
1.0 |
0.5 |
0.75 |
1.0 |
1.25 |
Working depth |
mm |
200~250 |
200~250 |
||||||
weight |
kg |
80 |
115 |
145 |
180 |
125 |
228 |
330 |
435 |
Matched power |
hp |
12 |
25~30 |
30 |
45~55 |
25 |
35 |
50 |
65 |
Linkage |
|
(Standard three-point mounted) |
|||||||

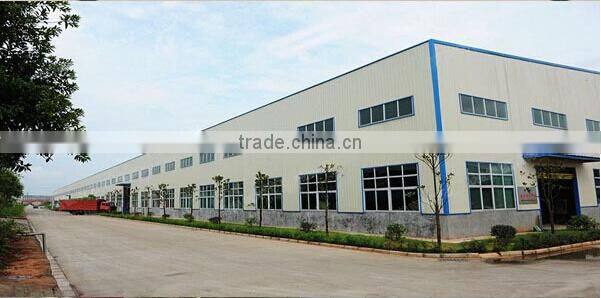

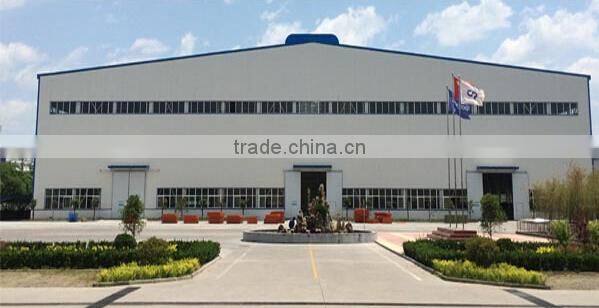

Show of our factory:

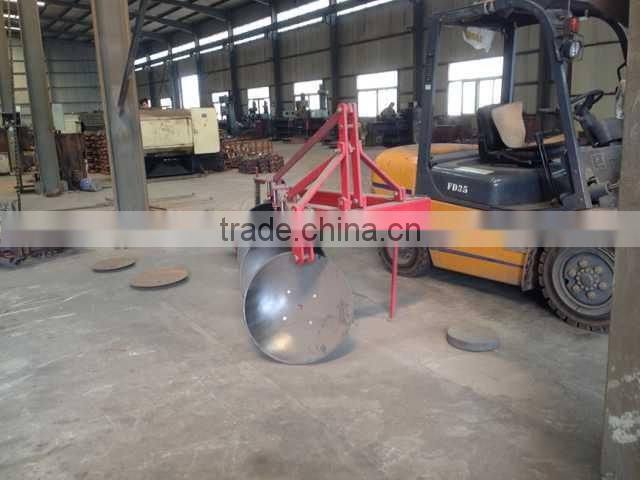

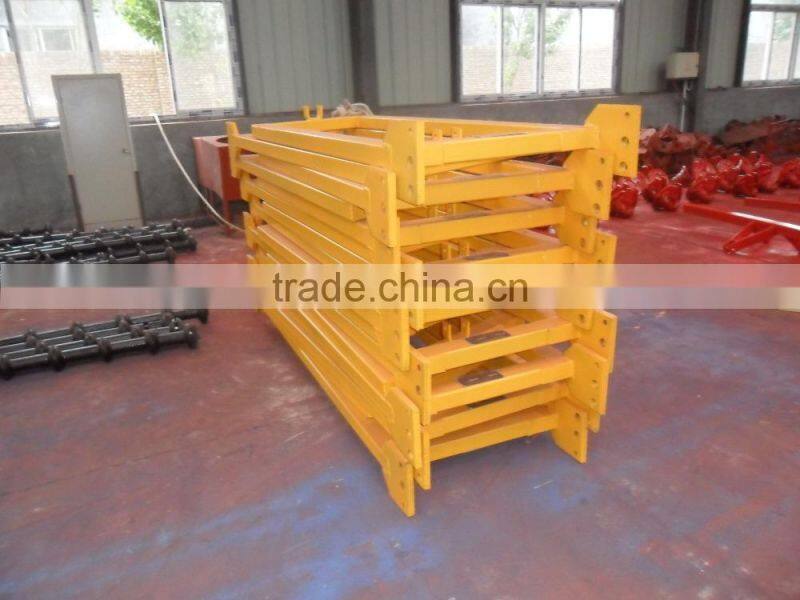

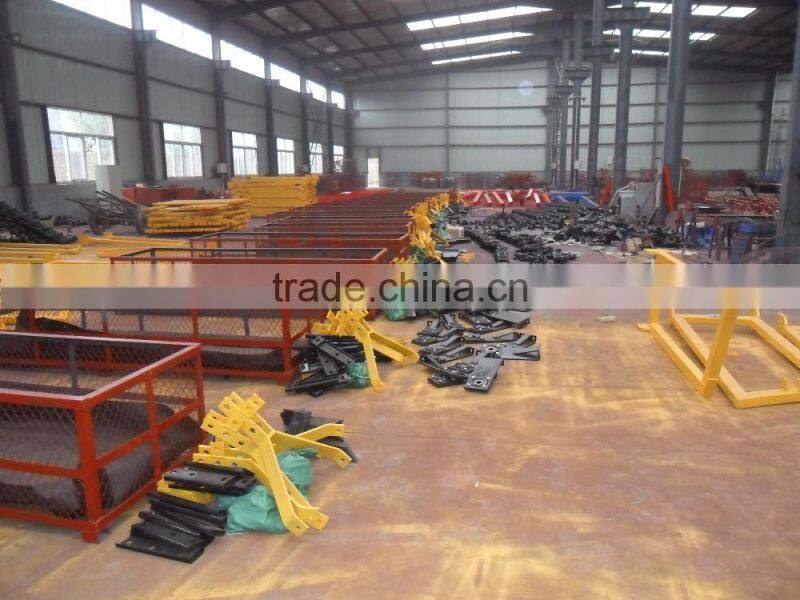

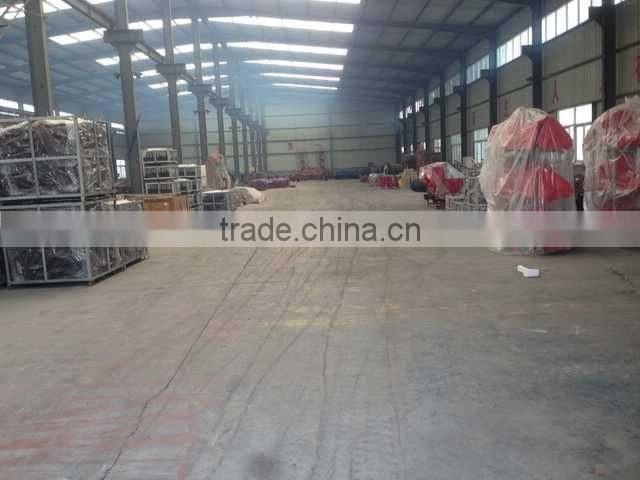

Show of our workshop:

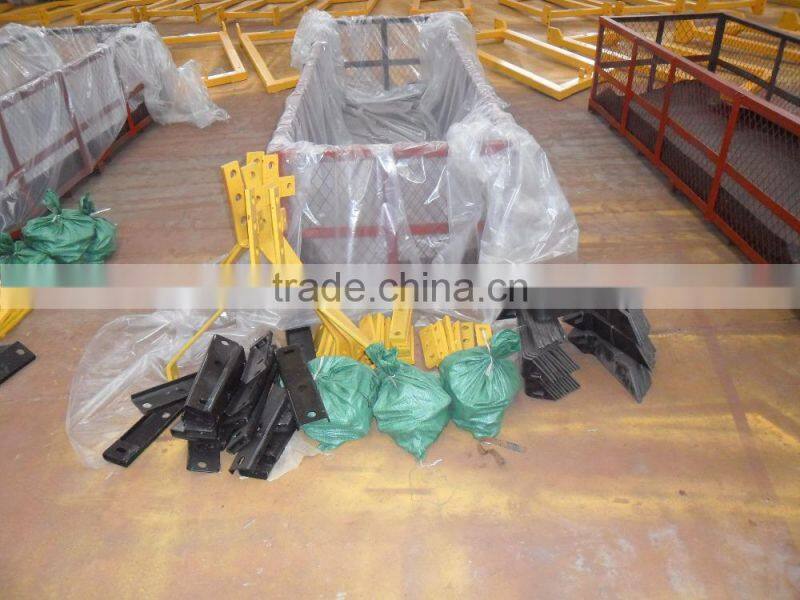

Show of package and delivery:

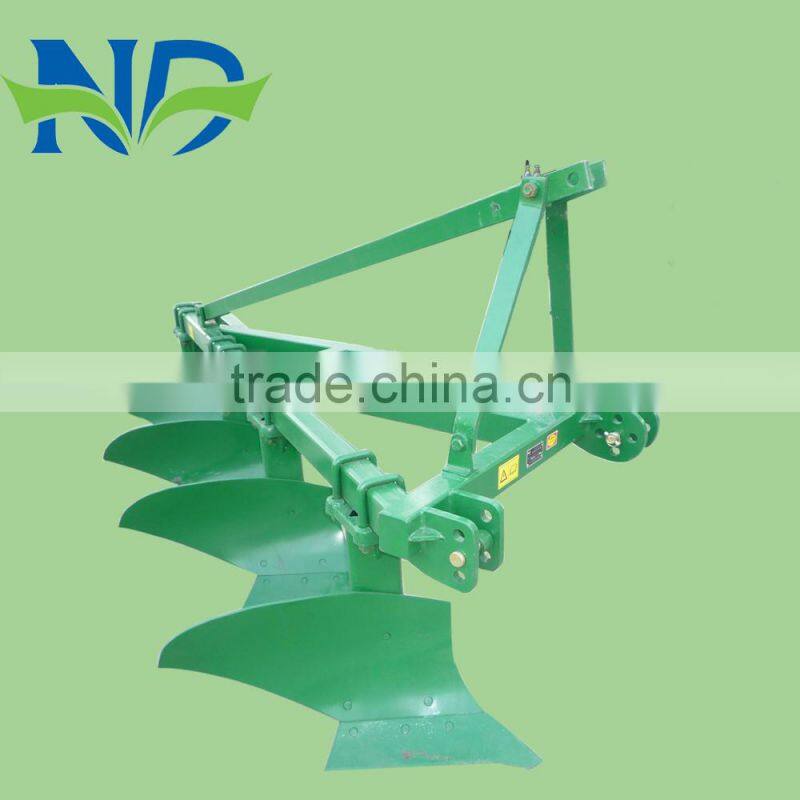

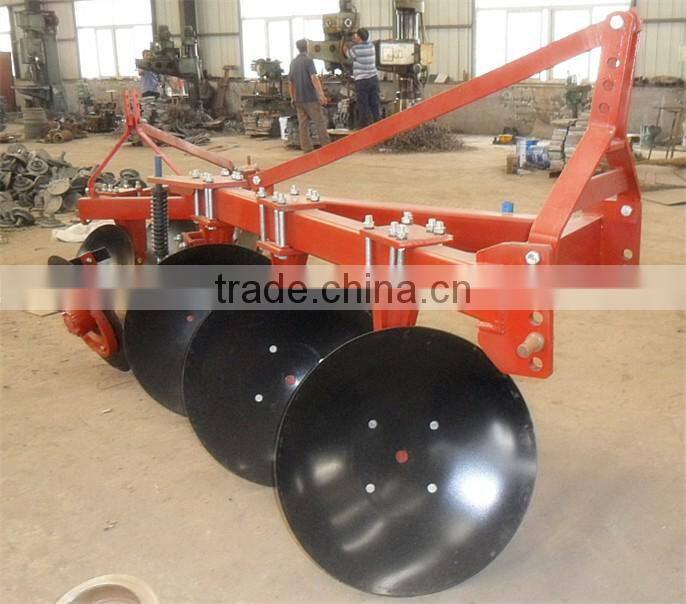

View of our products:
Stage 1:Tillage machinery:mini tiller,disc plough,dynamic rotary harrow;
Stage 2:Planting machinnery:corn seeder,potato planter,peanut seeder,onion seeder;
Stage 3:Harvesting machinnery:corn harvester,peanut harvester,potato harvester;
Stage 4:Grain and Oil machinery:oil presser,peanut sheller,peanut butter colloid mill.
Any product if u want to get more information,just feel convenient to contact me:
