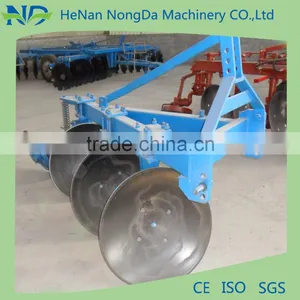

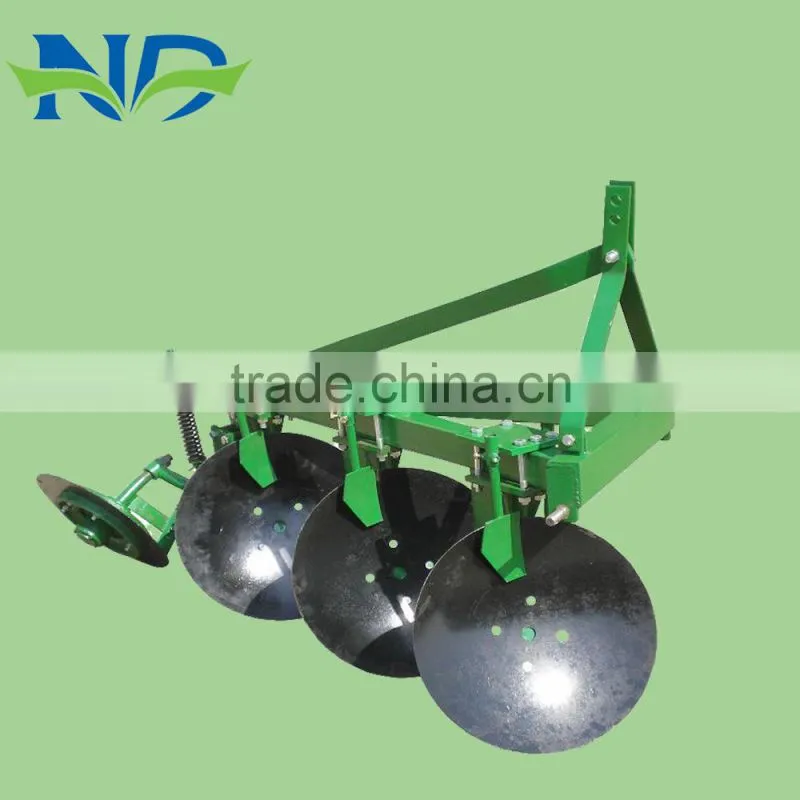

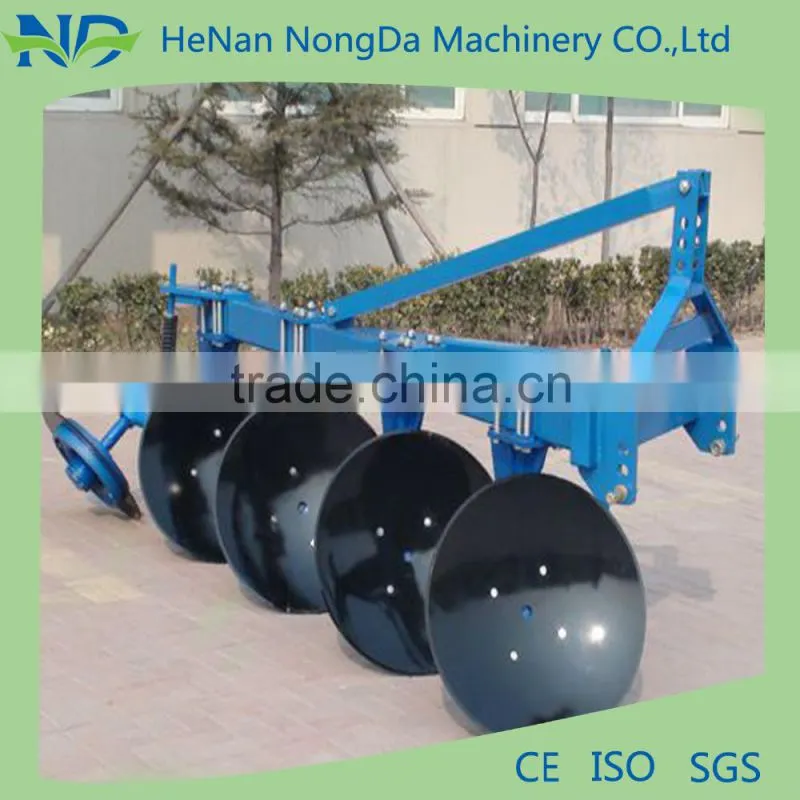

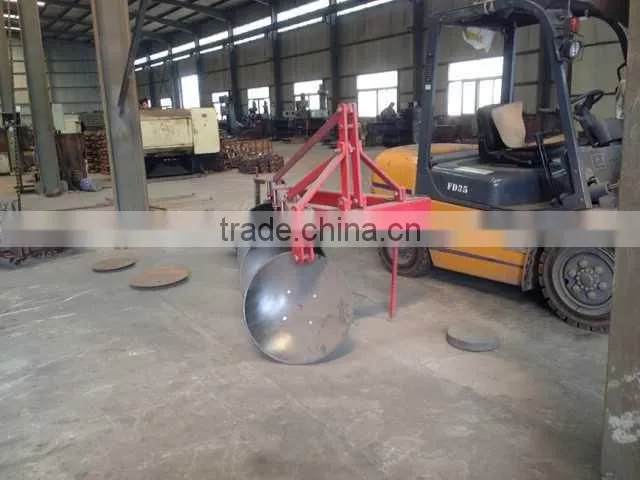

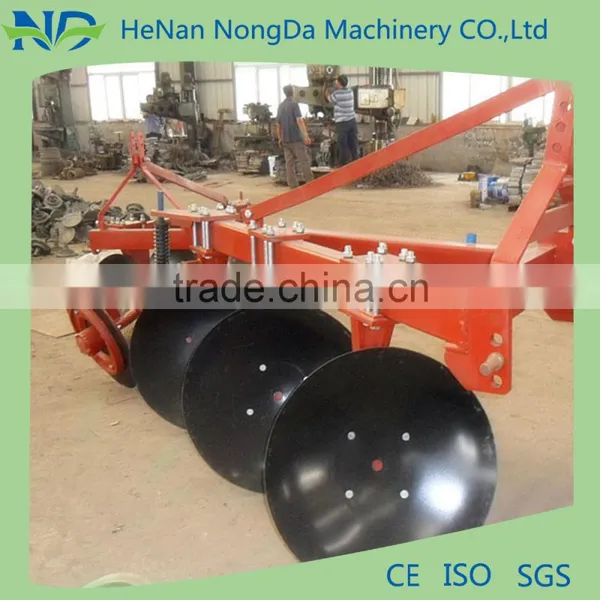

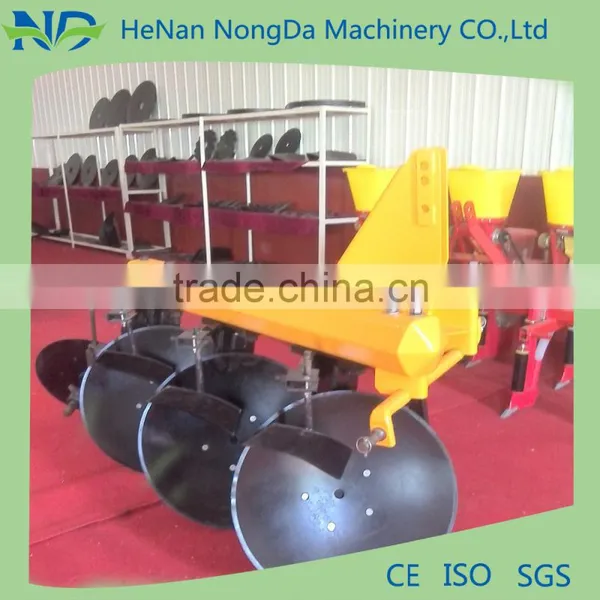

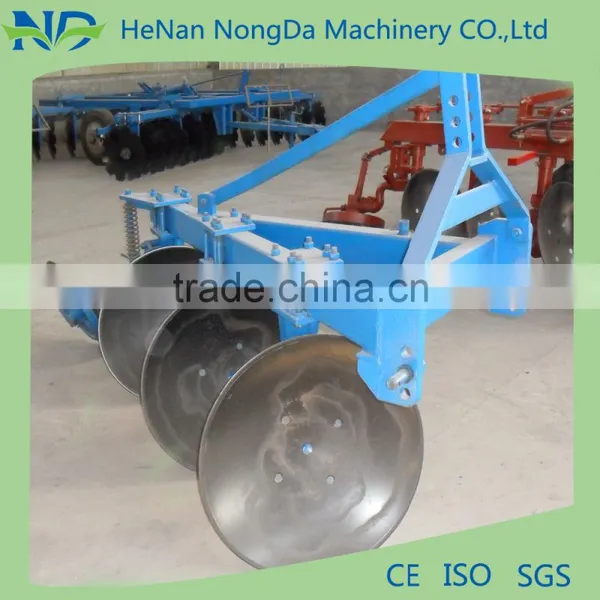

Popular saled three points Disc plough
Popular saled three points Disc plough
Brief featrues of Popular saled three points Disc plough
1. working width :600-1200mm
2. working depth :250mm
3. linkage : three point mounted
4. Dia. of disc : 660mm
Apply field of Popular saled three points Disc plough
The disc plough is completely mounted with tractor .During operation ,the disc is rotating to turn the soil .Particularly ,
it is suitable for operation on the field with grasses ,straw and stems of crops or plants ,big soil resistance and with many
stones and break brickbat ,etc. in the field .It is good at cutting grasses and straw and free from stopped by the grasses , soil or stones .etc. It is efficient in the work . It is easy to adjust and strong and durable .
Working principle of Popular saled three points Disc plough
Cultivated land, the disc under the effect of soil counterforce rolling forward, and its edge cut soil.The disc cutting soil it
loose
and broken in the process of rising along the concave disk, was finally fell into the furrows.Disc plough to cut off the
roots
and stubble ability is stronger, and less congestion, and thus more used in the wet land, grass, peat, green fields and
returning straw ploughing up after the operation.
Horizontal diameter in the plane of the plate edge direction with the configuration as the Angle of 30 ° to 45 °;Disc blade
surface with the vertical Angle is usually below the upper leans back 15 ° ~ 20 °.Configuration on each disk has a scraper
plate, its role is to adhere to scrape off the dirt on the concave the disk, and prompted the soil it reverse it.There is a
special
tail wheel disc plough back, its role is mainly bear the cornering force of soil on the disc, marching to keep the unit in
operation is stable.
Parameter of Popular saled three points Disc plough
Model |
NDDP-230 |
NDDP-330 |
NDDP-430 |
Working width(mm) |
600 |
900 |
1200 |
Working depth(mm |
250 |
||
Weight(kg) |
340 |
430 |
524 |
Linkage |
Three point suspended |
||
|
Matched power(hp) |
40-50 |
55-65 |
75-90 |
Working efficiency(ha/h) |
0.3 |
0.45 |
0.6 |
Overall dimensions(mm) |
1650*1150*1200 |
2300*1400*1200 |
2950*1730*1200 |
Dia.of discs(mm) |
660 |
||

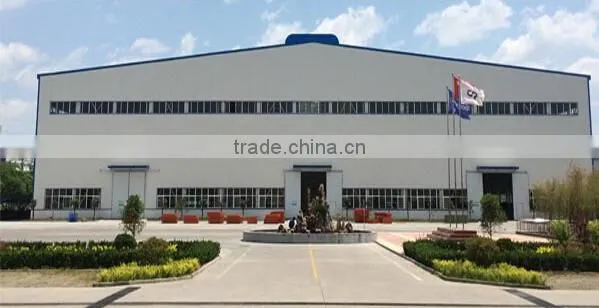

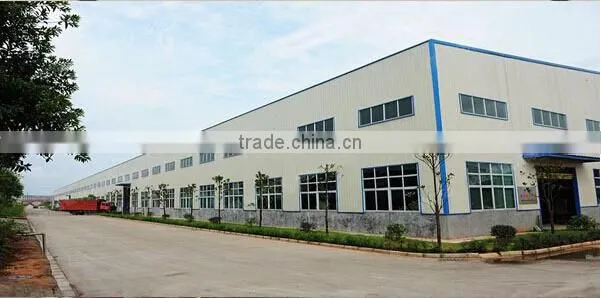

Show of our factory:

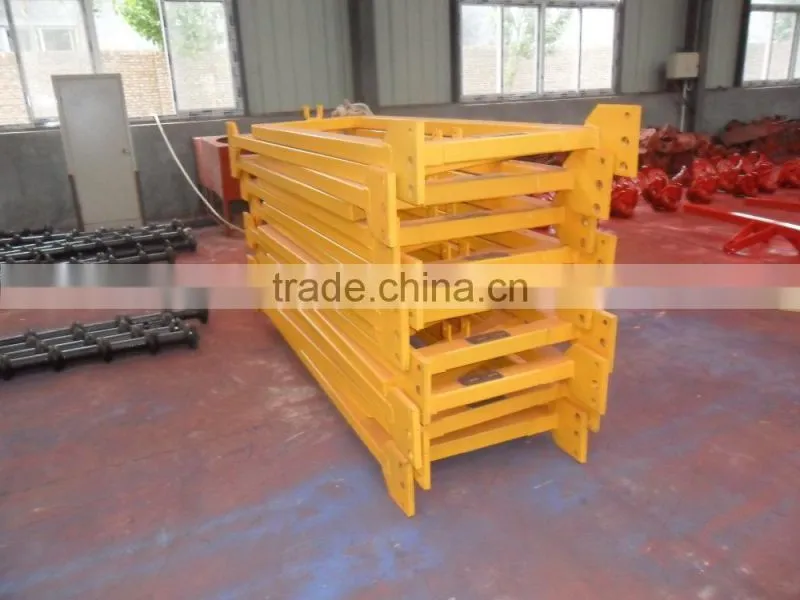

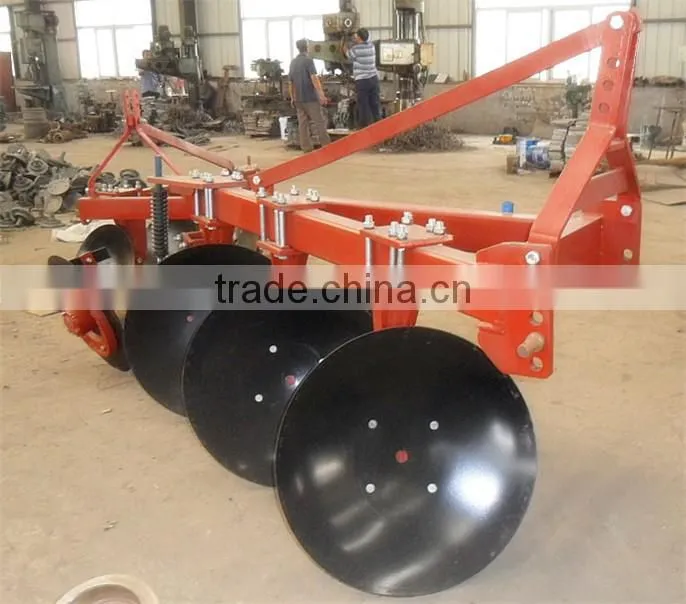

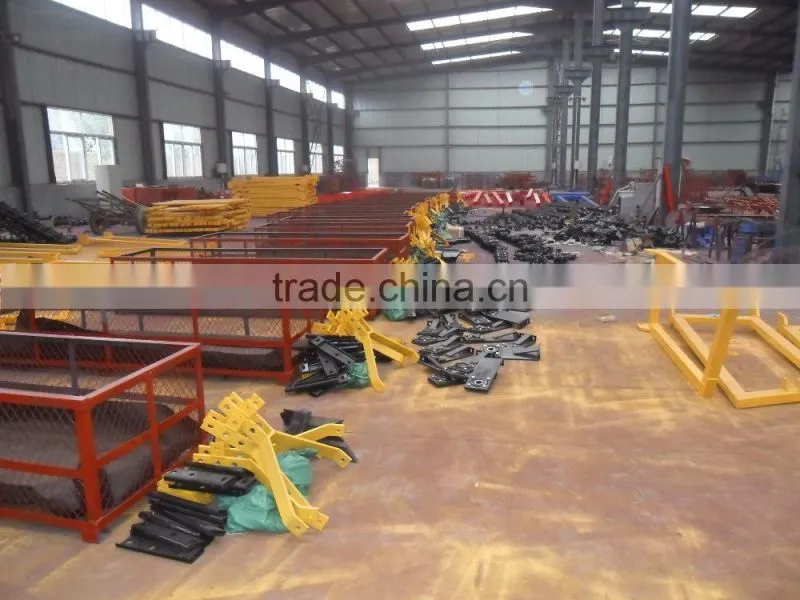

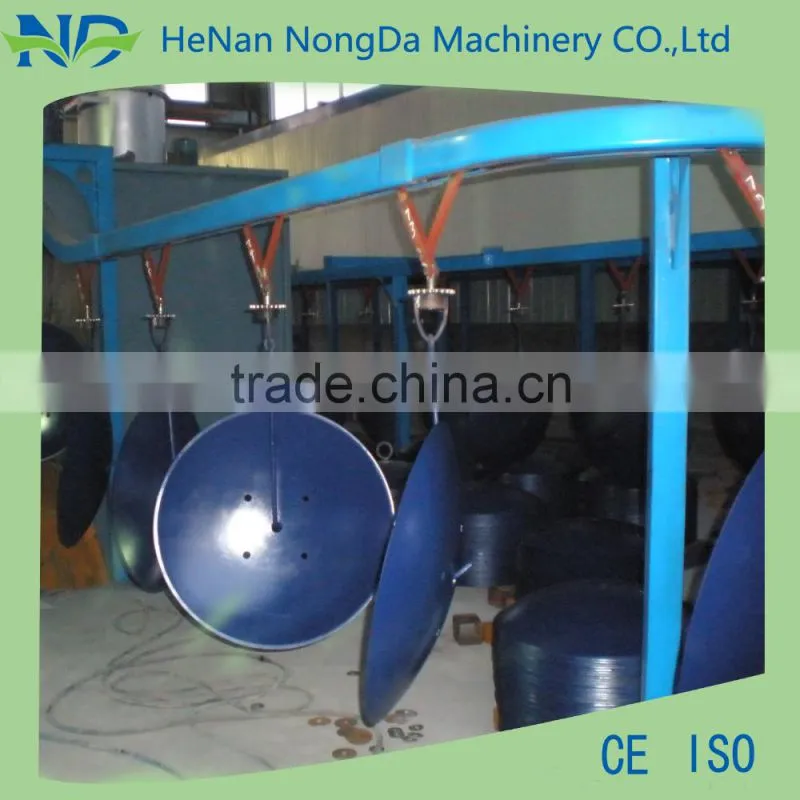

Show of our workshop:

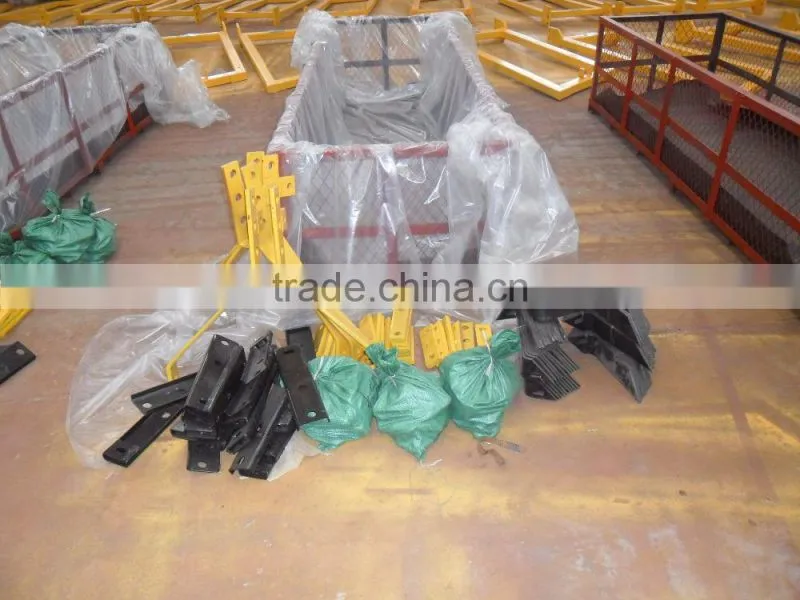

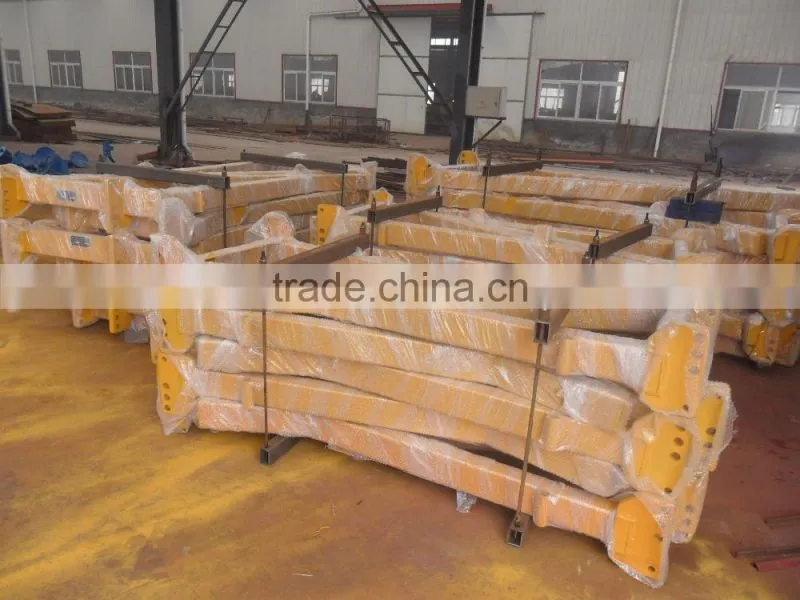

Show of package and delivery:
View of all our products,except Popular saled three points Disc plough
Stage 1:Tillage machinery
Stage 2:Planting machinnery
Stage 3:Harvesting machinnery
Stage 4:Grain and Oil machinery
If u want to get more information about Popular saled three points Disc plough
,just feel convenient to contact me:
