professional high output pellet press machine
Features of professional high output pellet press machine as following:
1. Perfect design on complete equipment allocation;
2. 24 hours continuous running;
3. Stable and Durable Equipment Function;
4. Super high cost performance;
5. Guaranteed After-Sale Service;
6. Lower Energy Consumption and Less Manpower;
7. CE Approval
8. 4 Patents on Wood Pellet Press.
professional high output pellet press machine
is the full equipment allocation which is to make Biomass pellets from any type of agro-forestry wastes
with output professional high output pellet press machine
Raw material can be as following for professional high output pellet press machine :
Groundnut shell, sugarcane bio-gases, caster shells/stalk, saw dust, coffee husk, paddy straw, sunflower stalk, cotton stalks, tobacco waste
mustard stalk, jute waste, bamboo dust, tea waste, wheat straw, palm husk, soybeans husk, coir pitch barks/
straws, rice husks, forestry wastes, wood chips and many other agro wastes.
professional high output pellet press machine

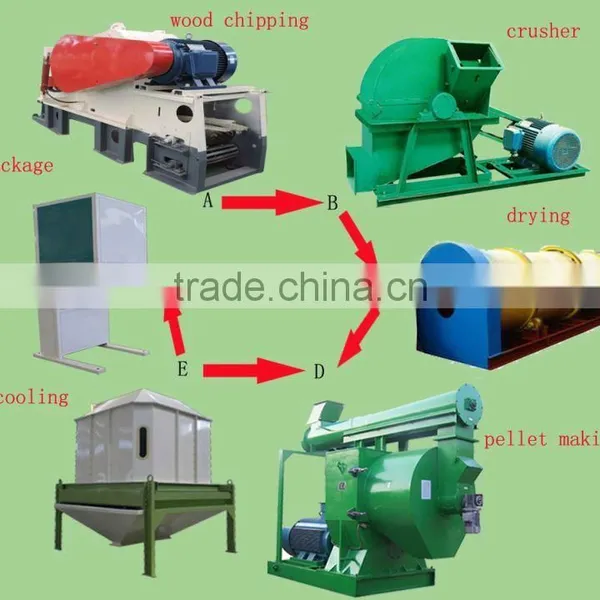

wood processing(wood chipping,wood crushing)----drying----pellet making---cooling----packinng

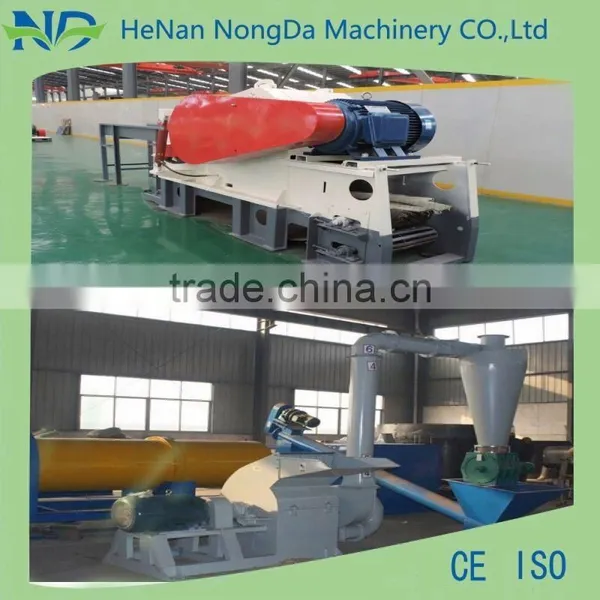

1. Crushing Process of professional high output pellet press machine :
The best moisture content in the Crushing Process is less 20%, the thickness of the wood chip is less 5mm.
Depending on the different input material, we fit out the suitable Crushing machines: If the raw material is the Straw Baler, we developed the series Baler Crusher adopting the foreign advanced technology.
If the raw material is big logs with diameter less 300mm or big timber cutter, our BX-Series Chipping and Crushing Machine is your best choices;
while SFSPseries Hammer Mill is widely used to crush each kind of straw, wood chip, tree branch, bark and
leftover bits from agricultural wastes.

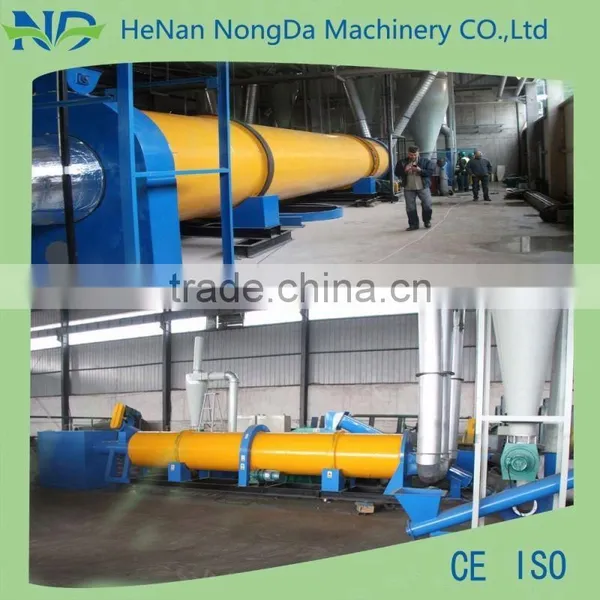

2. Drying Process of professional high output pellet press machine :
The best moisture content to pelletizing is about 14 to 16%.
Our new Rotary Dryer is made up of Burning Stove and Main Rotary Dryer, which can realize to reduce
the moisture from 50% to 10%, and save about 30% energy consumption comparing the old Rotary Dryer.
Our burning stove is fueled by coal and wood material, which can save electricity consumption largely.
If the users want to use the other fuel such as gas and electricity, one Burner is necessary, but the extra cost will be
charged.
PLC System on the moisture auto-control is optional for you.
3. Pelletizing Process of professional high output pellet press machine :
MZLH Wood Pellet Mill is the most important equipment, which have the following features:
(1). The lubrication system for wood pellet mill adopts the tracing and inspecting system controlled by the
microcomputer. When the temperature of the bearing is over the normal temperature, the microcomputer will start the
round closed AutoLubrication System to lubricate the bearings, which complete solved the trouble of lubricating roller depending on the operation experience.
The Lubrication System is made up of the tracing and inspecting system
controlled by the microcomputer, auto-lubricating system on time and compelled lubricating system by hand.
(2). Driving Gear adopts the high precision gear transmission structure. The wear bearing is made from China Biggest Bearing Manufacturer according to our special requests.
The ring die adopts the hoop fastening method, which is increasing the speed of discharge comparing with the past bolt fastening method. As a result,
the capacity is 10-15% higher than the belt transmission structure.

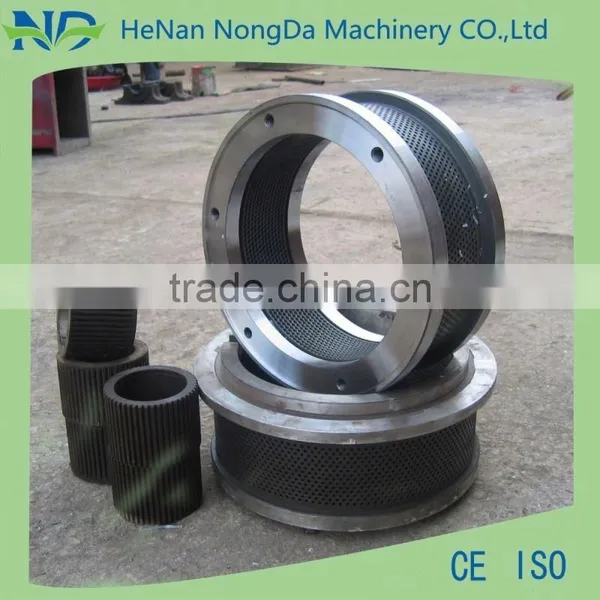

(3). As per the ring die and roller of the wood pellet mill, we have the fine machining with the alloyed steel,
such as 20 CrMnTi and 40Cr; and stainless steel, such as 4 Cr13 and 3 Cr13. And our heating treatment is
also different from the other domestic manufacturer, our carburizing treatment make the depth of hard facing to 2mm, which improve the anti-abrasion of the ring die and roller more than 10 times, it can save the production cost heavily.
4. Cooling Process of professional high output pellet press machine :
After the pelletizing process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 12%-13%, so we use tower cooler to reduce moisture content to 8-10%, in this sense the wood pellet would be easy to store.
Morover considering the feedback from some foreign clients, the local climate is very humidity; they hope to
cool the wood pellet with moisture 7-8%. In order to satisfy the different need from different clients, we recommend new band cooler.
5. Packing Process of professional high output pellet press machine
After cooling, the wood pellet will not directly enter into the fuel process, avoiding the wood pellet affected with damp. The packing process is necessary.
In this process, we recommend our domestic best Semi-Auto Packing Machine and Tons-Packing Machine for you.
1,i need know your raw materials are....?wood log(the diameter*length)??sawdust(moisture)??grain stalks??
2,capacity u want,dear?1t/h?6t/h?or 10t/h?...
3,your workshop area is...?200 square meters or...?
4,pellet size:pellet diameter u want 6mm or 8mm or 12mm? the pellet length u depend,dear.
5,about packing machine,how many kgs per bag u want?15kg?20kg? 25kg?or.....?
Of course if u tell me more informations about your plan,it is good for designing whole line for u,dear.
Thanks!

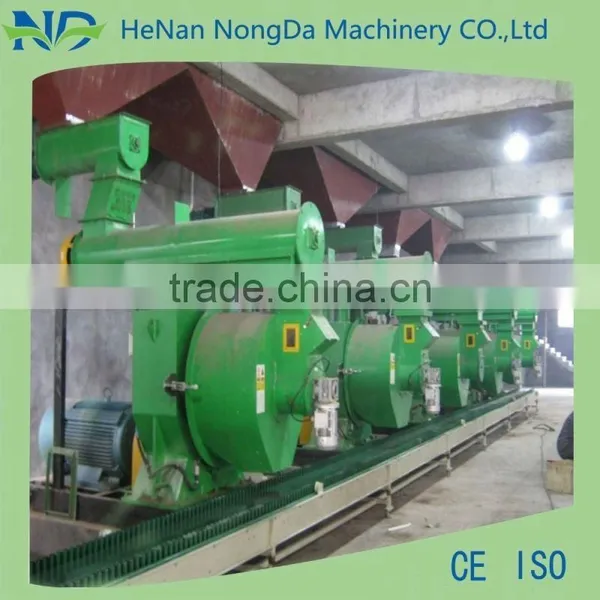

Workshop show of professional high output pellet press machine :
1. Professionally and patiently negotiate about the details;
2. Confirm EXW or FOB or or CFR or CIF price;
3. Advanced payment 30%TT;
4. Arrange manufacture the machines;
5. Take photos every week during the manufacturing, send to u for supervising the manufacture process;
6. Take the photos for the final production;
7. Take the photos for the final packing production;
8. Pay the 70%TT balance payment;
9. Arrange the shipping;
10. Support and assist our customer for the customers clearance;
11. Support customer for installation and testing;
12. Support our customer for each technical problem or any problem.
Customer case show of professional high output pellet press machine
For more information about our professional high output pellet press machine , pls contact:
