Home > Transportation > Tractor & Parts > Tractor > WHEELED TRACTOR BOTON BTD1204 120hp 4WD With DEUTZ Engine and Cabin

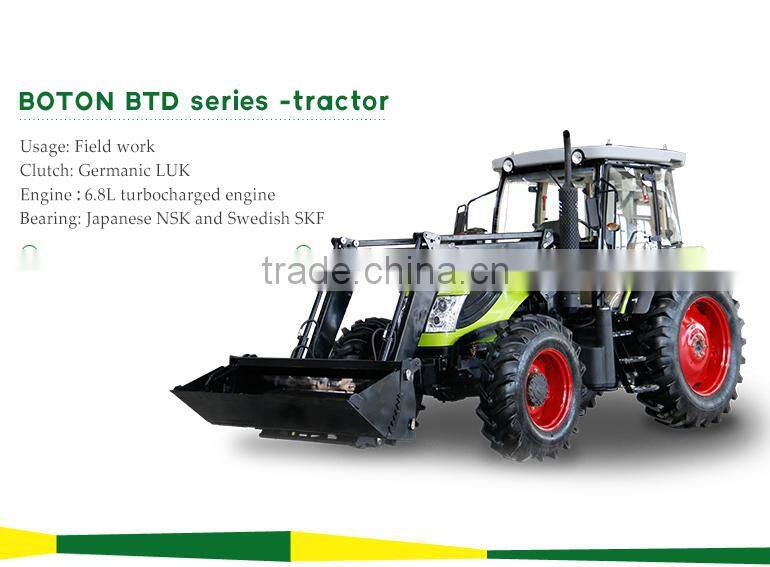

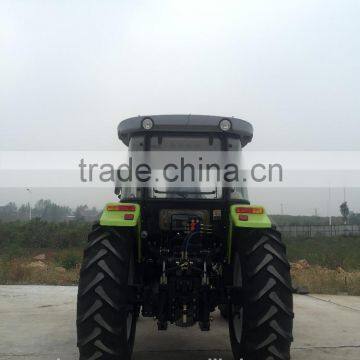

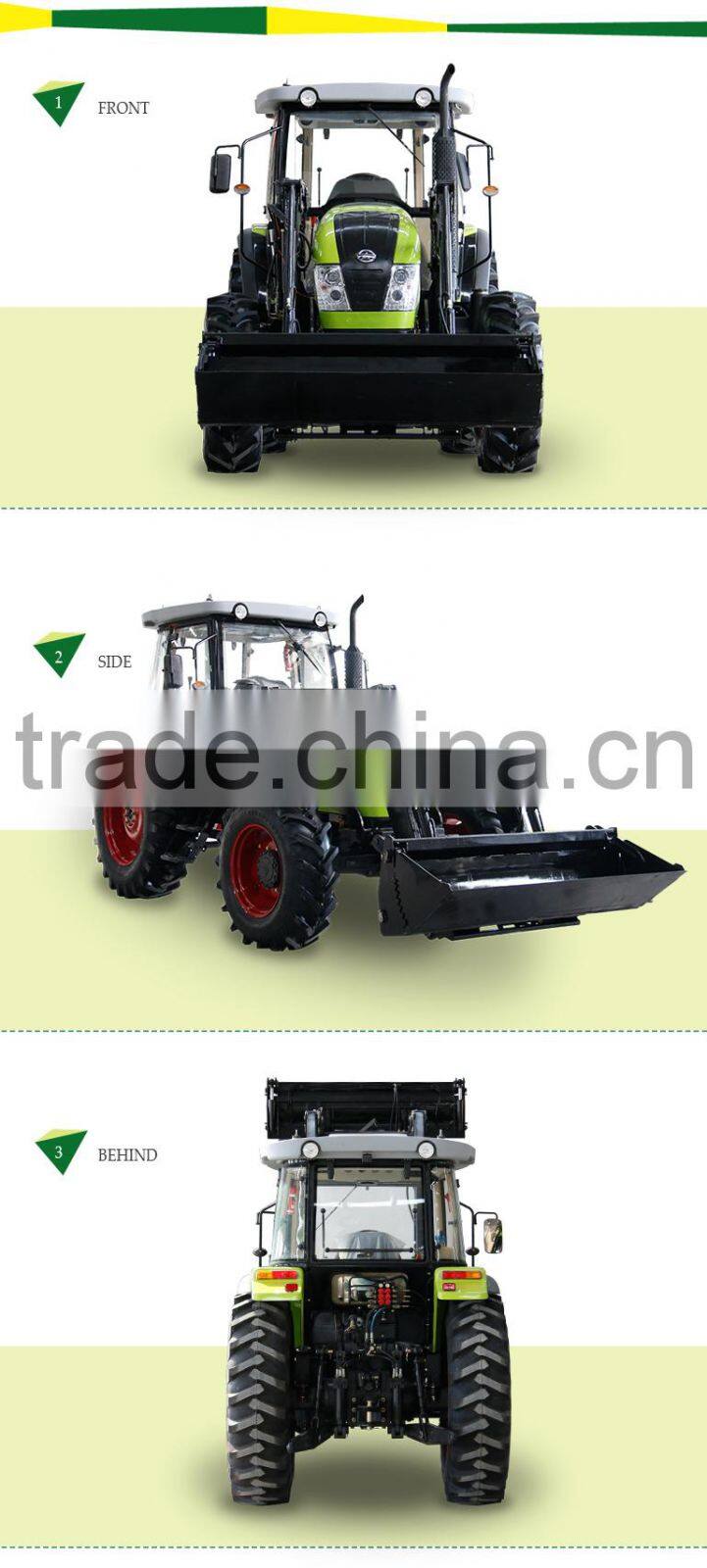

WHEELED TRACTOR BOTON BTD1204 120hp 4WD With DEUTZ Engine and Cabin
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BOTON TRACTOR BTD1204 120hp 4WD With DEUTZ Engine for SaleNegotiableMOQ: 1 Set -
WHEELED TRACTOR BOTON 130HP4WD DEUZT ENGINEWITH FRONT LOADER FOR SALENegotiableMOQ: 2 Sets
-
BOTON 130HP 1304 4WD WHEELED TRACTORWITH FRONT LOADERNegotiableMOQ: 1 Set
-
WHEELED TRACTOR BOTON BTD1204 120hp WITH CABIN AND GERMANY LUK CLUTCH FOR SALENegotiableMOQ: 1 Set
-
WHEELED TRACTOR BOTON BTD1204 120hp WITH CABIN AND LUK CLUTCHNegotiableMOQ: 1 Set
Condition
New
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Drive Type
Gear Drive
Power(W)
88200
Certificate
EPA
Brand Name
BOTON
Model Number
BTD1204
Place of Origin
Henan, China
After-sales Service Provided
Engineers available to service machinery overseas
| Technical Specification | ||
| MODEL | BTD1204 | BTD1304 |
| Drive type | 4*4 | 4*4 |
| GENERAL SPECIFICATION | ||
| Length×Width×Heigh (mm) | 5040*2285*2960 | 5040*2285*2960 |
| Constructional weight(KG) | 4560 | 4560 |
| Ttraction force (KN) | 22.1 | 22.9 |
| Wheel base (mm) | 2810 | 2810 |
| Front wheel tread (mm) | 1923 | 1923 |
| Rear wheel tread (mm) | 2008 | 2008 |
| P.T.O Max.power (Kw) | 94.5 | 99.9 |
| Ground clearance (mm) | 485 | 485 |
| ENGINE | ||
| Type | WP6T120E22 | WP6T130E22 |
| Rated power | 105 | 111 |
| Rated revolution (r/min) | 2200 | 2200 |
| Max.torque (n.m) | 606 | 641 |
| TRANSMISSION | ||
| clutch | Dry,constant combine,dual acting,independent operation of clutch | |
| The number of gearbox | 12F+4R,12F+12R | |
| WORKING DEVICE | ||
| Lifter tilling depth control | Force-position comprehensive control and floating control | |
| Max.lifting capacity (KN) | 21.2 | 22.9 |
| Suspension type | Rear three-point suspension,class 2 | |
| Speed of P.T.O.(r/min) | 540,760,850,1000 for choicing | |
