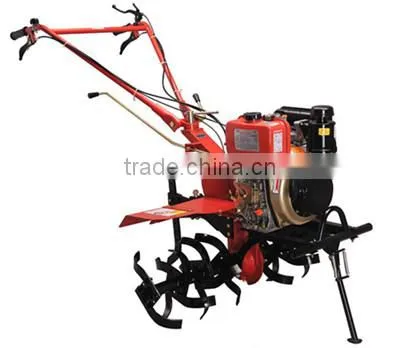

KDT910K Chinese Farm Tractors Mini Tiller

Model

KDT910K

Tiller

Tilling Width(cm)

135

Tilling Depth(cm)

>10

Drive-way Transmission

Full Gear

Gear

Fast-Slow-N-R

Clutch Type

Friction

Tire

5.00-12

Productivity(hm²/h)

≥0.06

N.G /W.G(KG)

125/130

Dimension(mm)

1050x570x780

Engine

Model

KAMA 186F Diesel Engine

Engine Type

single-cylinder, vertical, four-stroke,

Direct injection, air-cooled

Bore*Stroke(mm)

86*70

Displacement(ml)

406

Rated Power(kW/rpm)

6.3/3600

Max. Power(kW/rpm)

6.6/3600

Fuel Tank Capacity(L)

5.5

Fuel Consumption(g/kW.h)

<420g/kw.h

Fuel Type

0# in summer,-10# or-20# in winter

Oil Capacity(L)

1.65

Lube type

SAE10W30 (above CC grade)

Start System

Electric start with 30AH MF Battery

Others

Included Parts

with dry land blade(10x4 blades)

Packing

Cast-iron Bracket +Caron Box

20” GP(Set)

66 Units

40” HQ(Set)

144 Units

MOQ

20 Sets
