Specifications

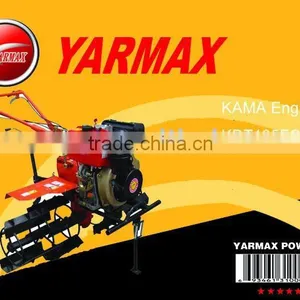

Agricultural rotary power tillage machineKAMA engine power tiller
Diesel power tiller
Rotary Power tiller
Small Tiller
Model | KDT135FC-Z | |
Tiller | Tilling Width(cm) | 135 |
Tilling Depth(cm) | ≥10 | |
Drive-way Transmission | Full Gear | |
Gear | Fast-Slow-N-R | |
Clutch Type | Friction | |
Tire | 4.00-8 | |
Productivity(hm2/h) | ≥0.06 | |
N.G /W.G(KG) | 125/130 | |
Dimension(mm) |
| |
Engine | Model | 186F Diesel Engine |
Engine Type | single-cylinder, vertical, four-stroke, Direct injection, air-cooled | |
Bore*Stroke(mm) | 86*70 | |
Displacement(ml) | 406 | |
Rated Power(kW/rpm) | 6.3/3600 | |
Max. Power(kW/rpm) | 6.6/3600 | |
Fuel Tank Capacity(L) | 5.5 | |
Fuel Consumption(g/kW.h) | ≤420g/kw.h | |
Fuel Type | 0# in summer,-10# or-20# in winter | |
Oil Capacity(L) | 1.65 | |
Lube type | SAE10W30 (above CC grade) | |
Start System | Recoil | |
Others | Included Parts | with dry land blade(3 pieces, 4 groups) |
Packing | Cast-iron Bracket +Caron Box | |
20” GP(Set) | 40 Units | |
40” GP(Set) | 96 Units | |
40” HQ(Set) | 144 Units | |
MOQ | 20 Sets | |
Quotation | FOB Shanghai (USD/UNIT) |
|
