Specifications

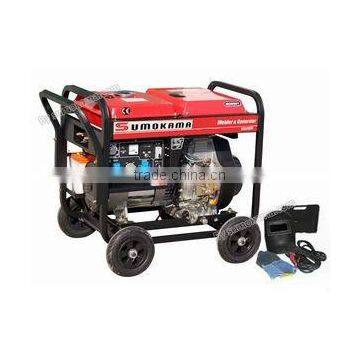

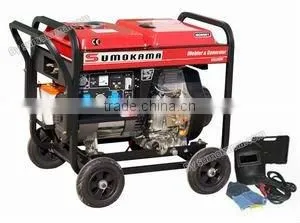

Open type Air-Cooled Diesel Generator1, stable performance and low noise
2, used for outdoors project
3. ISO9001, CE, EPA
Product Description
1. CE approved, powered by sumokama advanced air-cooled diesel engine.
2. Electric start system ensures rapid start of the set.
3. Large fuel tank, ensuring hours of continuous output.
4. Low oil pressure alarm system, which can shut down the engine automatically.
5. Integrated cabinet ensures the set running silently.
6. A variety of specially-designed control panels available for different markets.
Model | DG6LE | |
Frequency (HZ) | 50 | 60 |
Rated Output (KVA) | 4.5 | 5 |
Maximum Output (KVA) | 5 | 5.5 |
Rated Voltage (V) | 115/230 | 120/240 |
Rated current (A) | 39.1/19.6 | 41.7/20.8 |
Rated rotation speed (rpm) | 3000 | 3600 |
Phase No. | Single phase | |
Power Factor | COS=1 | |
Excitation Mode | Self-excitation, 2 pole and constant voltage (AVR) | |
DC Output | 12V. /8.3A , Connection Pole Output | |
Structure Type | Open type | |
Noise Level (7m) dB(A) | 72 | |
Engine Model | kM186FA | |
Engine type | Single-Cylinder, Vertical, Four-Stroke, Direct Injection, Air Cooled Diesel | |
Bore × Stroke(mm) | 86× 72 | |
Displacement (L) | 0.418 | |
Rated Power KW | 5.7/3000 | 6.3/3600 |
Fuel comsumption Rate(g. kw/h) | 275.1 | 281.5 |
Compression Ratio | 19: 1 | |
Lubrication System | Pressure Splashed | |
Starting System | Electric Start with 30Ah MF battery | |
Fuel Type | 0#(summer), -10#(winter), diesel | |
Lube Oil Brand | SAE10W30 (above CD Grade) | |
Lube Capacity (L) | 1.65 | |
Fuel Tank Capacity (L) | 15 | |
Continuous Running Time (hr) | 9.5 | |
Overall Dimension: LxWxH (mm) | 760*520*670 | |
Dry Weight (Kg) | 110 | |
Quantity in 20FT | 99PCS | |
Optiomal Features: | ||
ATS | Optional | |
Digital Panel | Optional | |
Remote control | Optional | |
We reserve the right to change specifications without notice | ||
