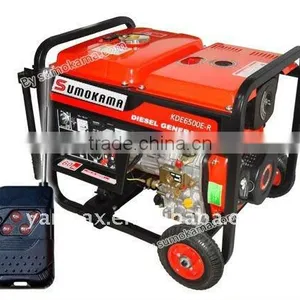

Low Price~Open Type Diesel Generator thumbnail-1
Low Price~Open Type Diesel Generator photo-1
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Sumokama
Model Number:
KDE2500E
Contact Supplier Request Quote Chat Now
Changzhou Yarmax Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Sumokama
Model Number KDE2500E
Output Type AC Single Phase
Speed 3000/3600
Frequency 50/60
Rated Power 1.7/2.0
Rated Voltage 115/230 120/240
Rated Current 14.8/7.4 16.7/8.3

Specifications

Open Type Diesel Generator
Model: KDE2500E
2Kw output power
Reliable & long work life

Model:KDE2500E

Frequency (HZ):50/60

Rated Output (KVA):1.7/2.0

Maximum Output (KVA):2.0/2.2

Rated Voltage (V):115/230 120/240

Rated current (A):14.8/7.4 16.7/8.3

Rated rotation speed (rpm):3000/3600

Phase No.:Single phase

Power Factor:1.0

Excitation Mode:Self-excitation, 2 pole and constant voltage (AVR)

DC Output:12V./8.3A ,Terminal Pos

tNoise Level (7m) dB(A):77

Engine Model:KM170F

EEngine type:Single-Cylinder, Vertical, Four-Stroke, Direct Injection, Air Cooled Diesel

Bore × Stroke(mm):70 x 55

Displacement (L):0.211

Rated Power KW:2.5/3000 2.8/3600

Fuel comsumption Rate(g.kw/h):280.2 288.3

Compression Ratio:20:1

Lubrication System:Pressure Splashed

Starting System:Electric Start with 30Ah MF battery

Fuel Type:0#(summer)-10#(winter) diesel

Lube Oil Brand:SAE10W30 (above CD Grade)

Lube Capacity (L):0.75

Fuel Tank Capacity (L):12.5

Continuous Running Time (hr):20

Overall Dimension: LxWxH (mm):660 x 500 x 570

Dry Weight (Kg):60

Quantity in 20FT:132 Pcs

Optiomal Features: Remote,ATS(Auto Transfer Switch) ,Digital Panel

We reserve the right to change specifications without notice
