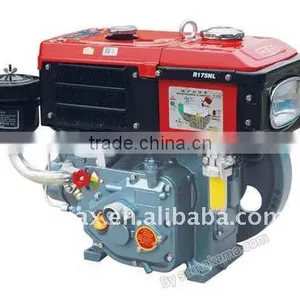

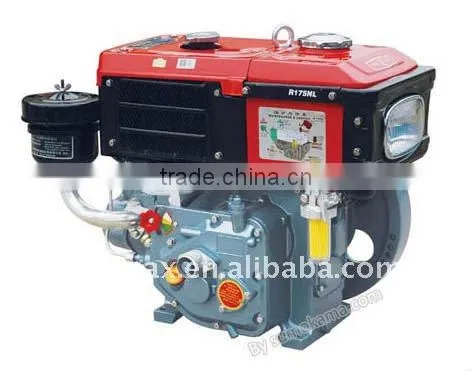

Good Quality 6.6hp Water Cooled Diesel Engine

Model

R175A

R175AN(L)

Type

Single cylinder, horizontal, 4-strokes, water-cooled

Combustion system

Swirl combustion chamber

Bore×stroke

75×80

Total Displacement

0.353

Compression ratio

22

1-hour rated output(kW/min)

4.85/2600

12-hour rated output(kW/min)

4.41/2600

Specific fuel consumption(g/kW.h)

≤ 280.2

≤289.7

Specific lube oil consumption(g/kW.h)

≤ 4.76

≤ 4.76

Cooling method

Hopper type

Water-cooled

Water cooling

Condenser system

Lubrication method

Combined pressure and splash

Starting method

Hand cranking

Net weight (kg)

60

65

Overall dim (L×W×H) (mm)

589x341.5x463

Packing dim (L×W×H) (mm)

595x380x570

Quantity in 20FT (Sets)

216
