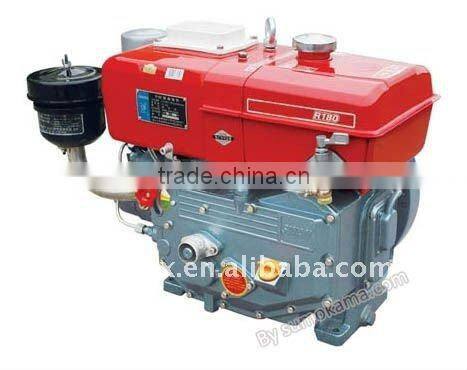

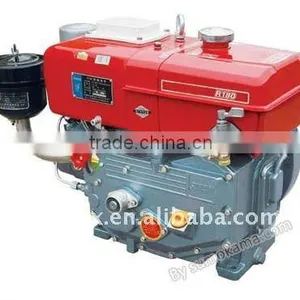

7.7hp Water Cooled Diesel Engine

Specifications

7.7hp Water Cooled Diesel Engine

Model: R180NL
Type:Single cylinder, horizontal, 4-strokes, water-cooled
Combustion system:Swirl combustion chamber
Bore×stroke:80×80
Total Displacement:0.402
Compression ratio:21
1-hour rated output(kW/min):5.67/2600
12-hour rated output(kW/min):5.15/2600
Specific fuel consumption(g/kW.h):< 278.8
Specific lube oil consumption(g/kW.h):<4.08
Cooling method:Hopper type Water-cooled
Lubrication method:Combined pressure and splash
Starting method:Hand cranking
Starting method:Hand cranking
Net weight (kg):70
Overall dim (L×W×H) (mm):625×341×560
Packing dim (L×W×H) (mm):650×380×580
Quantity in 20FT (Sets):216
