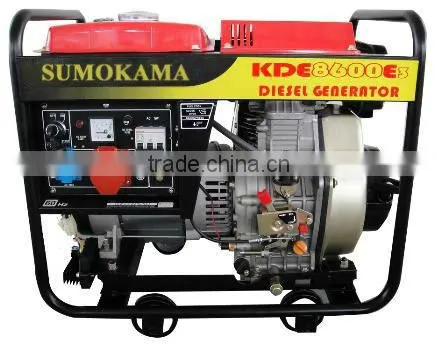

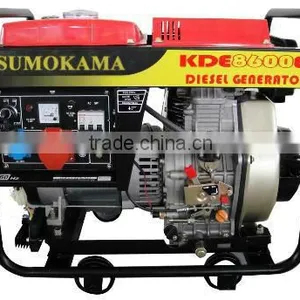

Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 8kw/12HP Three-Phase Diesel Generator
US$ 200 - 800
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SUMOKAMA
Model Number:
KDE8600E3
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Cylinder 3KW Diesel Generator Price From Chinese SupplierUS$ 2,000 - 9,000MOQ: 1 Piece -
Soundproof Diesel Generator (DG6LN)NegotiableMOQ: 10 Pieces
-
Diesel Generation KDE6700TA WITH ATSNegotiableMOQ: 10 Pieces
-
Diesel Generation KDE6700TANegotiableMOQ: 10 Pieces
-
Silent Diesel Generator KDE3700TANegotiableMOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
SUMOKAMA
Model Number
KDE8600E3
Output Type
AC Three Phase
Speed
3600RPM
Frequency
50hz
Rated Power
7kva
Rated Voltage
220/380V
Specifications
Heavy duty full frame protectionConsistent dependable starting
Low fuel and vibration
| Diesel generator KDE8600E3 | ||
| Model | KDE8600E3 | |
| Frequency (Hz) | 60 | |
| Output power (KVA) | 8 | |
| Max. Power(KVA) | 8.5 | |
| Voltage (V) | 240/416 | |
| Current (A) | 11.1 | |
| Engine speed (r/min) | 3600 | |
| Phase | 3-phase | |
| Power factor(cosφ ) | 0.8 | |
| Excitation system | Self-excited constant voltage | |
| Noise level (7m) | DB (A): 77 | |
| Fuel tank capacity (L) | 12.5 | |
| Structure | Open-frame | |
| Panel | Ordinary | |
| Outputsocket | one single-phase, and one3-phase | |
| DC12V output | Terminal post | |
| Engine Model | KA188FE | |
| Bore*stroke (mm) | 88 *75 | |
| Displacement (L) | 0.418 | |
| Power (KW) | 8.2/3600 | |
| Fuel consumption rate (g. KW/h) | 295 | |
| Compression ratio | 19 | |
| Lubrication system | Spring | |
| Engine starting system | Electric starter | |
| Diesel oil model | Summer: 0#, winter: -10# | |
| Lube oil model | SAE10W-30 (above CD grade) | |
| Lube oil capacity (L) | 1.65 | |
| Battery capacity(V-AH) | 12V-36Ah | |
| Net weight(KG) | 100 | |
| Dimension(L*W*H) | 760× 515× 710 | |
