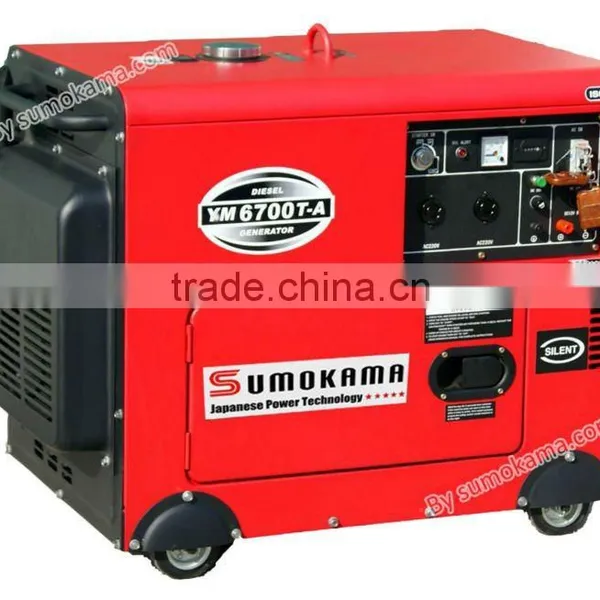

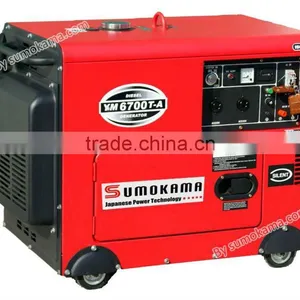

HOT SALE!!! 5KW Air Cooled Diesel Generator Silent Type KDE6700T-A

Model

KDE6700T-A

Frequency (HZ)

50

60

Rated Output (KVA)

4.5

5

Maximum Output (KVA)

5

5.5

Rated Voltage (V)

115/230

120/240

Rated current (A)

39.1/19.6

41.7/20.8

Rated rotation speed (rpm)

3000

 3600

Phase No.

Single phase

Power Factor

COS*=1

Excitation Mode

Self-excitation, 2 pole and constant voltage (AVR)

DC Output

12V./8.3A ,Connection Pole Output

Structure Type

Soundproof

Noise Level (7m) dB(A)

72

Engine Model

 KM186FA

Engine type

Single-Cylinder, Vertical, Four-Stroke, Direct Injection,Air Cooled Diesel

Bore × Stroke(mm)

86×72

Displacement (L)

0.418

Rated Power KW

5.7/3000

6.3/3600

Fuel comsumption Rate(g.kw/h)

275.1

281.5

Compression Ratio

19:1

Lubrication System

Pressure Splashed

Starting System

  Electric Start with 30Ah MF battery

Fuel Type

0#(summer),-10#(winter), diesel

Lube Oil Brand

  SAE10W30 (above CD Grade)

Lube Capacity (L)

1.65

Fuel Tank Capacity (L)

15

Continuous Running Time (hr)

9.5

Overall Dimension: LxWxH (mm)

955 x 560 x 780

Dry Weight (Kg)

170

Quantity in 20FT

72 Pcs

Optiomal Features:

ATS

Optional

Digital Panel

Optional

Remote control

Optional

We reserve the right to change specifications without notice
