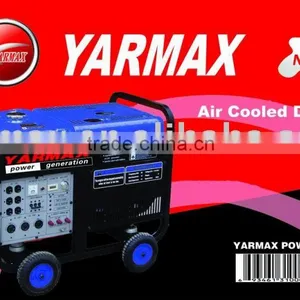

10kw Portable Diesel Generator

MODEL

   YM1100E

   YM1100E3

Engine Model

KM290

Cylinder No

2

Power output(kw/rpm)

13.50/3000   14.00/3600

Compression ratio

19:1

Displacement(CC)

954

Fuel consumption rate[g(ml)/kW.h]

≤200

Bore×stroke(mm×mm)

90*75

Starting system

Electric start

Fuel tank(L)

25

Ignition system

Direct Inject

Oil capacity(L)

3.15

Lub

                 LECD grade 15W40

Rated voltage(V)

220(seletion)

240/380

Phase No.

Single phase

Three phase

Rated frequency(HZ)

50

60

50

60

Rated speed(r/min)

3000

3600

3000

3600

Rated output(kw)

10

11

10

12

Max output(kw)

11.5

12.5

12

13.8

Power factor

1

Dimmension(mm)

1250*620*805

Dry weight(kg)

210
