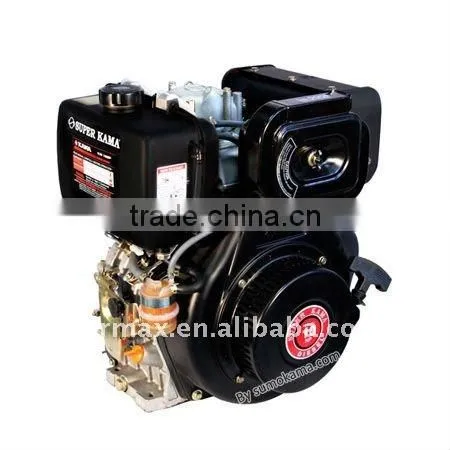

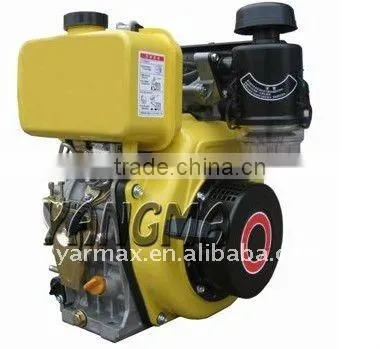

Yanmar Air Cooled 12HP Diesel Engine

Name: Yanmar Air Cooled 12HP Diesel Engine
Brand: Sumokama
SKU: 140760074
Availability: InStock

Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Usage:

Automobile

Fuel:

Diesel

Stroke:

4 Stroke

Changzhou Yarmax Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI CHINA

Delivery Detail:

Delivery time depends on order quantity.

Usage Automobile

Fuel Diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Air-cooled

Start Electric Start

Place of Origin Jiangsu, China

Brand Name Sumokama

Model Number KM188F-A

Specifications

Yanmar 12HP diesel engine
1)one cylinder,vertical
2) hand start,crankshaft
3)100% load test
4) CE/EPA

Model	KM188F-A(12hp)
Type	Single-cylinder,vertical,4-stroke air-cooled diesel engine
Combustion system	Direct injection
Bore X Stroke(mm)	88×72
Displacement(L)	0.438
Engine Speed(rpm)	3000	3600
Max. output	6.8Kw/9.25Hp	7.6Kw/10.3Hp
Rated output	6.5Kw/8.84Hp	7.3Kw/9.9Hp
Fuel	0# or -10# light diesel fuel
Fuel oil tank volume(L)	5.5
Lubrication oil volume(L)	1.65
Fuel consumption rate(g/kw.h)	≤270	≤290
Valve clearance (mm)	0.10-0.15
PTO Model	Crankshaft
Starting system	Recoil or Electric (E)
PTO rotation direction	counter-clockwise
Battery	Optional
Dimension(mm)	420×440×495
Net weight(kg)	≤47
20FT	220pcs
We reserve the right to change specifications without notice
