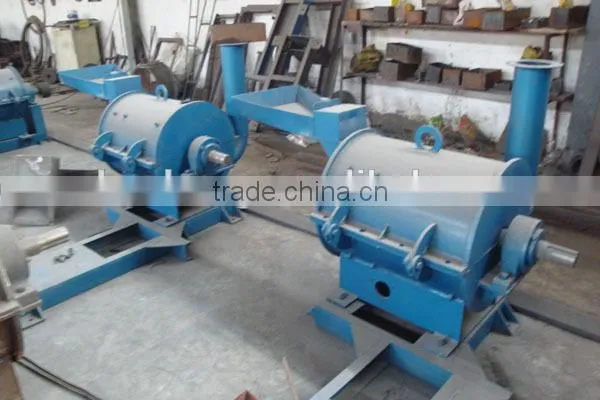

Huahong flour mill, flour milling machine
Why do customers choose Huahong?
Specifications:
1.Easy to operate with little pollution;
2.Less power consumption;
3.High efficient with fewer labor.
Huahong flour mill, flour milling machine's descriptions:
Wood powder machine is suitable for crushing bamboo, nut shell, herbal medicine, wheat bran, rice husk, corncob, straws, fish meal, shells, seaweed, dehydrated vegetables, hawthorn, dried pumpkin powder, condiment, paper, circuit board, plastic products, seawater product, vinasse, animals/poultry excrement, charcoal, hundreds of edible materials with complicated characteristics processing which is an ideal machine in chemical industry, building industry, medicine industry, breed aquatics and food making industry.
Huahong flour mill, flour milling machine's features:
1.It has the function of sound insulation and heat dissipation with little noise and no vibration in use.
2.High output with efficiency rising fifty persent or above than conventional wood flour machine.
3.An ideal high-tech equipment as crushers.
4.Auto suction type of feeding port for the safety in production.
5.Adopting double layer structure with interlayer.
6.Poured into tap water for water cooling.
7.Grinding materials into powders or granule, fibrous material of different fine degrees(10-500meshes) and the rate reaching100% without slag.

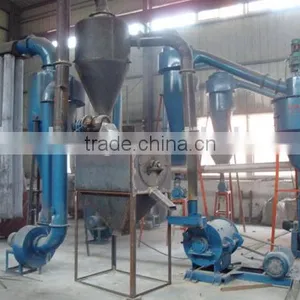

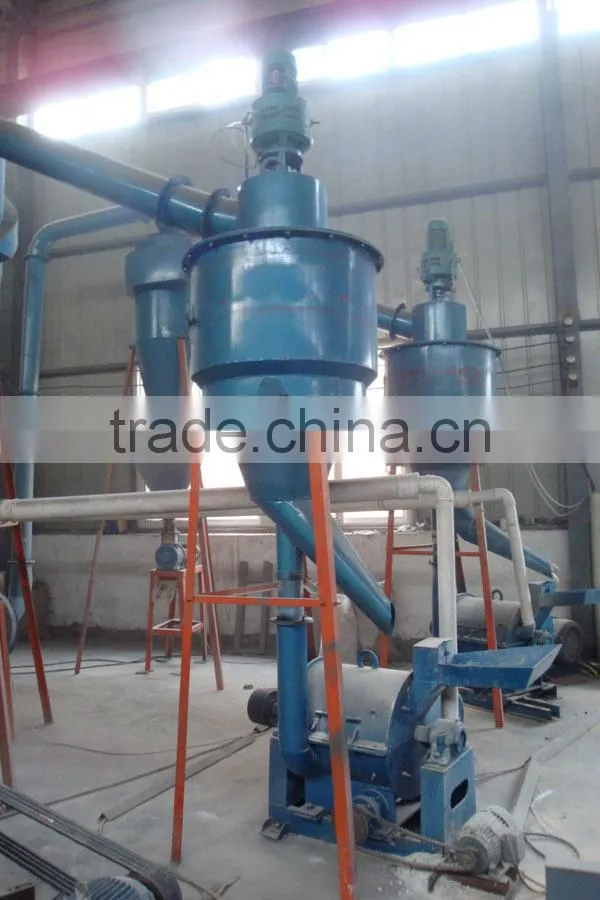

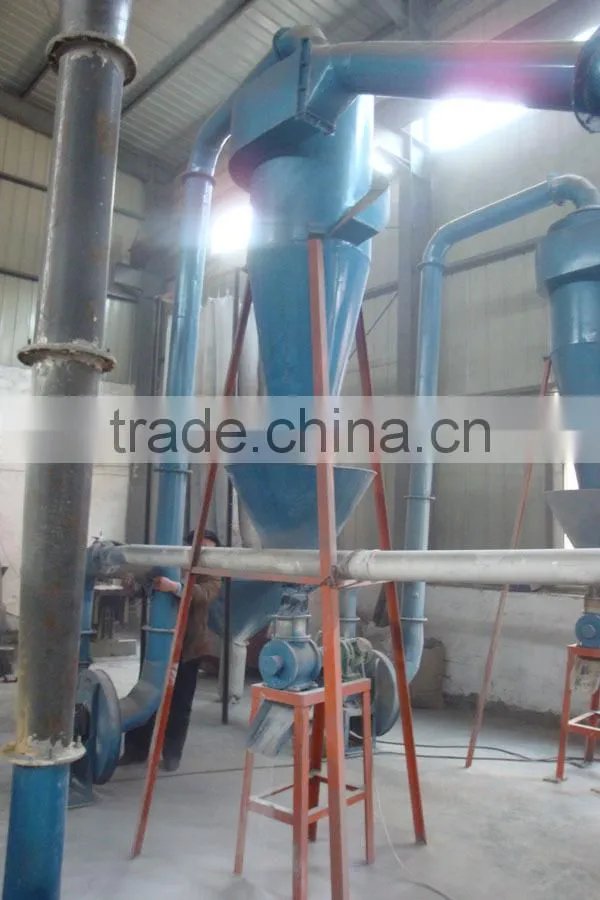

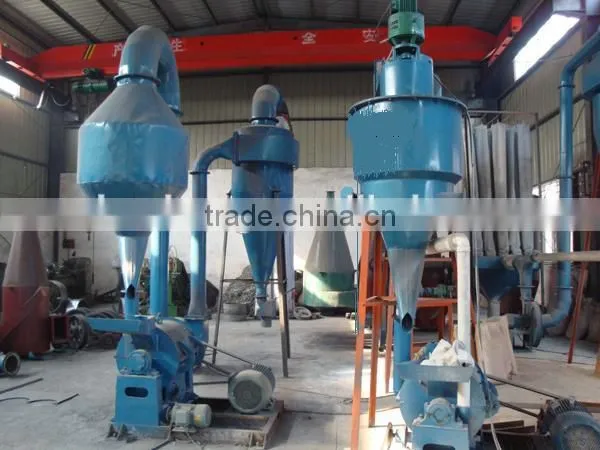

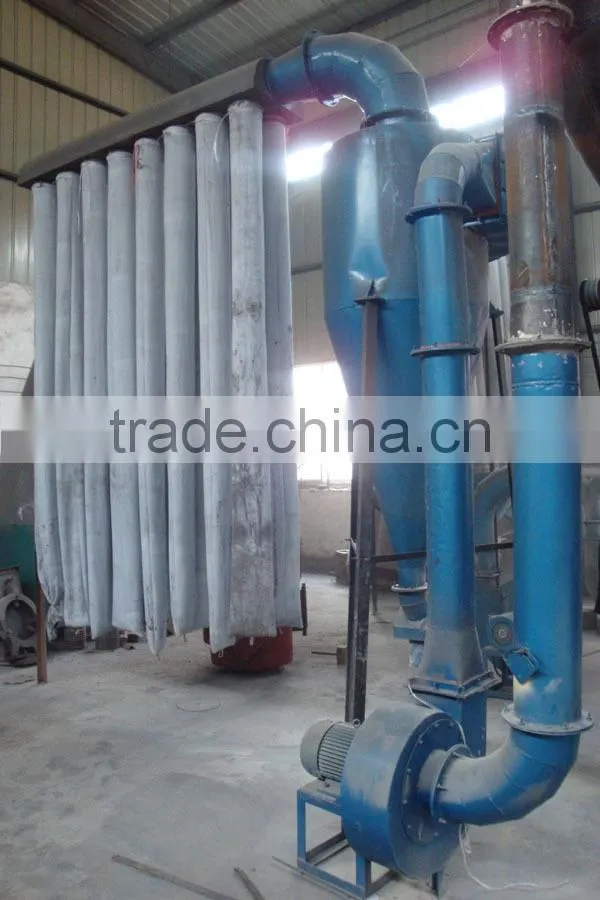

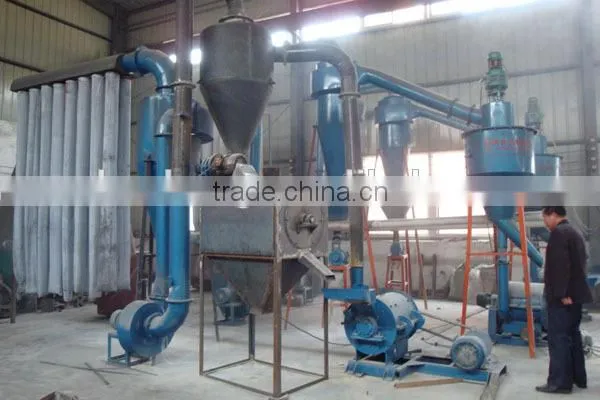

Huahong flour mill, flour milling machine's working principles:
1.Raw materials will be grinded after being sent into crushing chamber of machineby the high speed alloy blades,
2.Then collected by the cyclone powder collector which can avoid the powder flying everywhere;
3.Powder will be delivered to rotary screen which is equipped with different size of screening holes.
4.The qualified wood powder will get through the hole whole the larger powder will be discharged from another outlet and then put into the crushing chamber to be grinded again.
Huahong flour mill, flour milling machine's data parameters:
Model |
Feeding size (mm) |
Hardness (MOHs Hardness) |
Moisture
(%) |
Final size
(mesh) |
Capacity (kg/h) |
Shaft speed (r/min) |
Motor power (kw) |
Weight (kg) |
300 |
10-15 |
≤6.5 |
<6% |
20-325 |
30-200 |
2940 |
7.5/2 |
400 |
400 |
10-20 |
≤6.5 |
<6% |
30-325 |
100-1000 |
2940 |
18.5/2 |
1100 |
500 |
10-25 |
≤6.5 |
<6% |
40-300 |
40-500 |
2900 |
22/2 |
2100 |
650 |
10-25 |
≤6.5 |
<6% |
20-325 |
200-1600 |
2940 |
30/2 |
2800 |
700 |
10-25 |
≤6.5 |
<6% |
20-325 |
300-2000 |
2940 |
30-37/2 |
2900 |
800 |
10-25 |
≤6.5 |
<6% |
20-325 |
350-2200 |
2940 |
37-45/2 |
3000 |
450 |
3-5 |
Cellulosic |
dry |
40-200 |
30-150 |
3200 |
18.5-22/2 |
1100 |
600 |
3-5 |
Cellulosic |
dry |
40-300 |
40-200 |
3400 |
22-30/2 |
1200 |
750 |
3-5 |
Cellulosic |
dry |
40-200 |
60-250 |
3200 |
37-45/2 |
2800 |
