1100 Wet Pan Mill,wet Pan Mill for Gold Selection

Zhengzhou Huahong Machinery Equipment Co., Ltd.
5Yrs
1100 Wet Pan Mill,wet Pan Mill for Gold Selection thumbnail-1
1100 Wet Pan Mill,wet Pan Mill for Gold Selection thumbnail-2
1100 Wet Pan Mill,wet Pan Mill for Gold Selection thumbnail-3
1100 Wet Pan Mill,wet Pan Mill for Gold Selection thumbnail-4
1100 Wet Pan Mill,wet Pan Mill for Gold Selection thumbnail-5
1100 Wet Pan Mill,wet Pan Mill for Gold Selection thumbnail-6
1100 Wet Pan Mill,wet Pan Mill for Gold Selection photo-1
1100 Wet Pan Mill,wet Pan Mill for Gold Selection photo-2
1100 Wet Pan Mill,wet Pan Mill for Gold Selection photo-3
1100 Wet Pan Mill,wet Pan Mill for Gold Selection photo-4
1100 Wet Pan Mill,wet Pan Mill for Gold Selection photo-5
1100 Wet Pan Mill,wet Pan Mill for Gold Selection photo-6
US$ 4,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, wet pan mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai qingdao tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, wet pan mill
Motor Type AC Motor
Power(W) 11kw
Capacity(t/h) 1
Place of Origin Henan, China
Brand Name Huahong
Model Number 1200a
Dimension(L*W*H) 1.7*1.7*2.1m
Weight 6t
Certification SGS
Warranty One Year Excluding Wearing Parts
After-sales Service Provided Engineers available to service machinery overseas

Huahong new design wet pan mill for sale

1600 Wet pan mill

1100 wet pan mill,wet pan mill for gold selection1100 wet pan mill,wet pan mill for gold selection





The wet pan mill is a new mill, small investment, high yield, the production cost is low, good benefits.

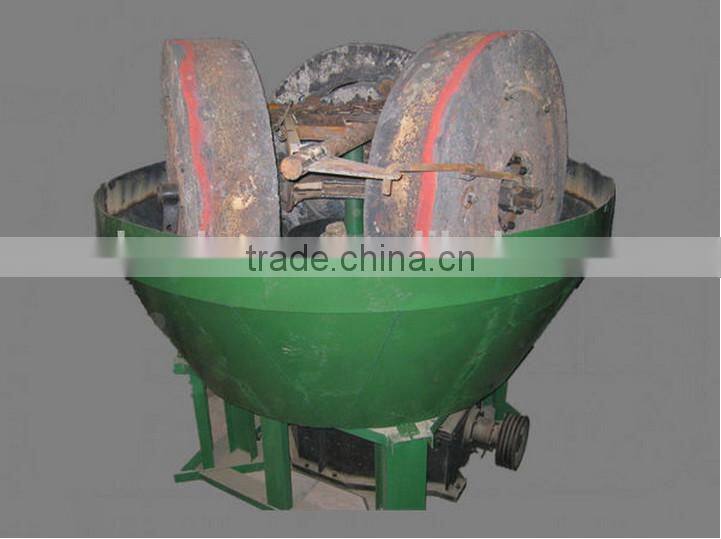

 1100 wet pan mill,wet pan mill for gold selection





The wet pan mill is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore.

As their small investment, high yield, the production cost is low, good benefits, praised by users, domestic alternative to the ball mill equipment. Grind gold machine easy installation and maintenance, small investment, high yield, quick, low-cost production, is the ideal equipment for mine SMEs beneficiation.





Use and Maintenance of wet pan mill/gold grinding machine:



1.The normal operation of the mill, before they start feeding.



2.this machine prohibit strip start, the outage at boot time, you must first clean up the residual ore in the middle of the milled slot and then start.



3.should be uniform feeding not erratic, it is best to use the feeder.



4.bearing frequent butter, gear box or car rear axle with frequent checks whether the loss of gear oil.



5.regular checks of the various parts of the screw is loose.



6.Found bearing damage must be promptly replaced, shaft eccentric avoid damage to other parts.



7.mill runtime to pay attention to that the reducer or bearing part of the presence or absence of abnormal sound, whether the temperature is too high, the motor current is too large irregularities; should be shut down immediately if the above phenomenon, exclude.



8.machine maintenance, to ensure safety, you must remove the motor belt.



Technical Parameter of wet pan mill/gold grinding machine:

ModelSpecification(mm)Input size(mm)Rotary speed(mm)Power(kw)Weight(t)
16001600*400*200*500±20






           30		20-223014.5
15001500*350*200*460±2020-222213.5
14001400*250*150*350±2016-1818.58.5
13001300*250*150*350±2016-18157.5
12001200*200*80*250±2017-19115.5
11001100*200*80*25017-197.55
10001000*200*80*250±2013-155.54.5
900900*200*8010-155.53



Based on the original wet pan mill,  we made several big improvements:





The new type wet pan mill has smoother apperance, and better workmanship:



























We combine the basin and the grinding pan together, for the new type gold refining machine, the basin and grinding pan is one part, this improvement makes it easier to operate and highly improve the recovery rate of gold









The new type























The following is the old type, there is gap between the basin and the grinding pan, and the gold particles easily run into the bottom of the pan





















The steel plate of our new type wet pan mill is thicker compared with the old type, making it more durable and  not easy to deformation

























The following is the old type wet pan mill, the steel plate is thinner



















After trying our new generation wet pan mill, many customers place regular order because the new designed wet pan mill in more durable and more convenient in application







Our wet pan mills have certificates of ISO, and pre-shipment inspection.



 1100 wet pan mill,wet pan mill for gold selection1100 wet pan mill,wet pan mill for gold selection



We also have a new design three wheel model 1200H wet pan mill:

1:Our  new design three wheel gold grinding machine have nearly same price as double wheel grinding machine, but have higher efficiency.

2:The three wheel grinding machine's capacity is 1.5 times larger than two wheel grinding machine.

1100 wet pan mill,wet pan mill for gold selection



Our wet pan mills are exported to Sudan:

1100 wet pan mill,wet pan mill for gold selection

1100 wet pan mill,wet pan mill for gold selection
