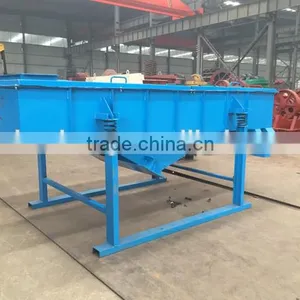

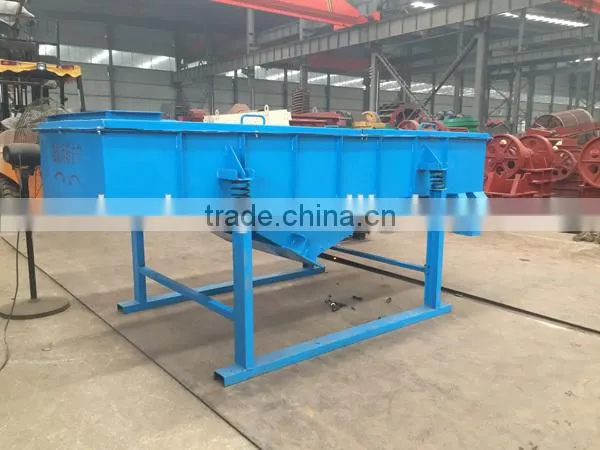

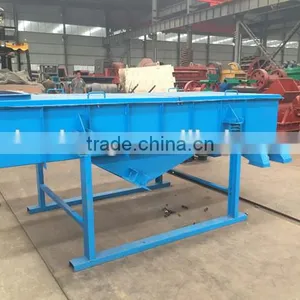

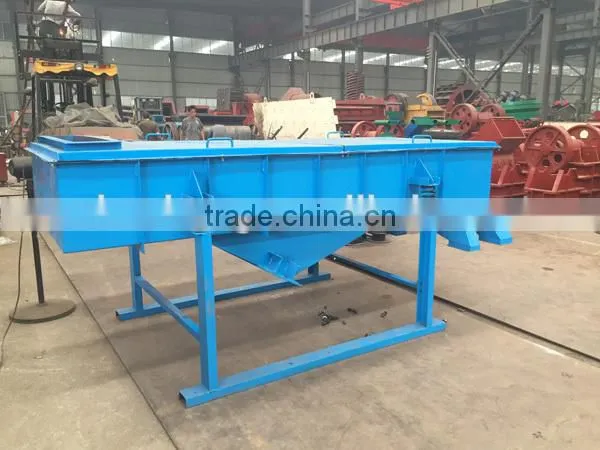

ZDS series Linear Vibrating Sieve/Screen is a kind of muti-layer sieving equipment, which can be matched corresponding material of mesh according to the customer's requirements to seiving variety of materiels at one time
The operation is easy &convenient, replacement of screen process is simple .This equipment has wide range of application, mainly used in chemical industry, metallurgy, building materials, food, chemical industries, abrasive of granular, powder materials selection and classification
Primary structure
This equipment is mainly composed of screen box, screen frame,Vibration motor, Supporting device.
Screen box: can also be welded by various kinds of stainless steel according to customer's requirement

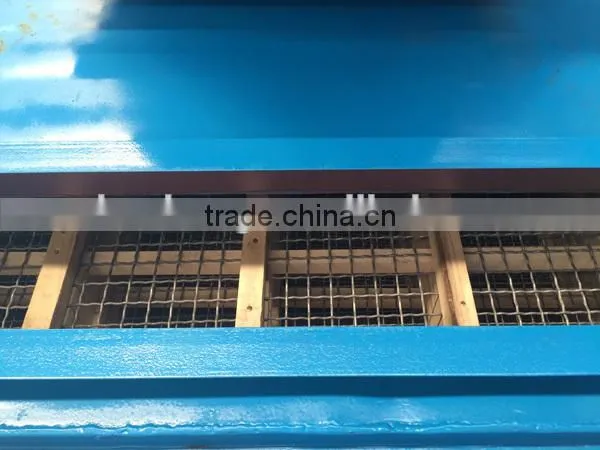

Screen frame: screen frame can be made by plain carbon steel or stainless steel according to customer's requirement
Vibration motor: two sets of horizontal vibration motor installed in the equipment as vibration source, can produce exciting force to adapt to different requirements by adjusting he motor eccentric block at both ends
Supporting device: supporting device is composed of supporting springs and supporting frame which welded by iron channel. Inclination of the screen can be modulated by changing the height of support legs.
| type | zs612 | zs618 | zs1030 | zs1230 | zs1535 | zs1845 |
| size of screen surface (mm) | 600*1200 | 600*1800 | 1000*3000 | 1200*3000 | 1500*3500 | 1800*4500 |
| material size (mm) | 0.074-60 | 0.074-60 | 0.074-60 | 0.074-60 | 0.074-60 | 0.074-60 |
| sieve loft | 1-7 | 1-7 | 1-7 | 1-7 | 1-7 | 1-7 |
| layers | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 |
| motor power(Kw) | 2*0.37 | 2*0.37 | 2*0.75 | 2*1.1 | 2*1.5 | 2*2.2 |
After-sale services:
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site;
(4) Examine the equipment regularly;
(5)Take initiative to eliminate the troubles rapidly at site;
(6) Distribute the guarantee fittings door-to-door;
(7)provide perfect service;
(8)Provide technical exchanging;
(9)Provide maintenance for big items.
