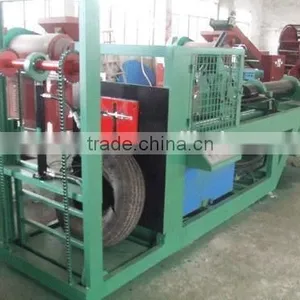

Help CenterHuahong Waste Tyre Debead Machine for Sale
Related Products
-
Waste Wire Ring Pulling Machine,tyre Wire Separating MachineUS$ 7,300 - 8,000MOQ: 1 Set -
Waste Tire Steel Wire Pulling Machine/Tire Steel Separating Machine/Tire Steel SeparatorUS$ 7,300 - 8,000MOQ: 1 Set
-
Tire Recycling Tire Ring Steel Pulling Machine for SaleUS$ 7,300 - 8,000MOQ: 1 Set
-
Tire Bead Steel Wire Extracting Machine / Tire Steel Pulling MachineUS$ 7,300 - 8,000MOQ: 1 Set
-
China Customized Shredder MachineUS$ 1,000 - 56,000MOQ: 1 Set
Parameters:
| Type | TQCL1250 |
| Working voltage | Three phase 380V/50Hz |
| Motor power | 15KW |
| Applied Tire Outer Diameter | ≤ 1200mm |
| Cooling method | Circulating water cooling |
| Anti-wear hydraulic oil | 40# |
| Oil Volume | 400L |
| Extracting Cylinder working stroke | 1250mm |
| Cutting cylinder working stroke | 350mm |
| Extracting Cylinder working pressure | ≤20 MPa |
| Pressing cylinder pressure | ≤10 MPa |
| Handling Capacity | 28-38 pcs/hour |
| Dimension | 4100X870X1550mm |
| Machine Weight | 2200kg |
1.This machine integrate the waste tire wire cutting and extracting machine, which reduces the cot and enhances the efficiency greatly!
2.Adopts hydraulic reciprocating extracting method, full circle or half circle of bead wire can be easily extracted.
3.Feedig oil by Duplex Impeller Pump with low operating noise, the two pumps will supply oil at the same time when the Extracting Cylinder reach out, and only one pump supplies oil when hauling back the bead wire, so as to reduce the dynamo's loading current and save energy.
4.The speed and pressure of the Extracting Cylinder will not change when the Pressing Cylinder is working, so as to enhance the machine's efficiency and extend the Control Valve's lifetime greatly!
5.Operations are interchangeable between manual and automatic.
