Washing Gold Machine,washing Stone Machine,sand Cleaning Machine

Washing Gold Machine,washing Stone Machine,sand Cleaning Machine photo-1

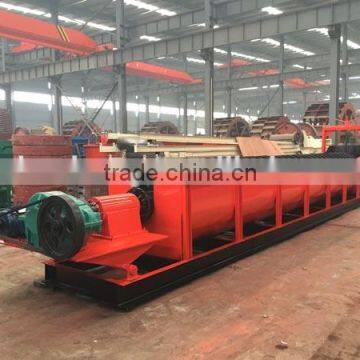

Washing Gold Machine,washing Stone Machine,sand Cleaning Machine photo-2
Washing Gold Machine,washing Stone Machine,sand Cleaning Machine photo-3

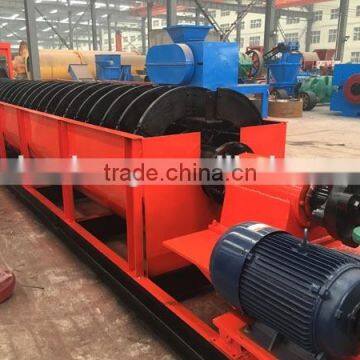

Washing Gold Machine,washing Stone Machine,sand Cleaning Machine photo-4

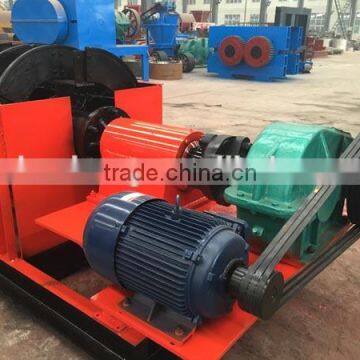

Washing Gold Machine,washing Stone Machine,sand Cleaning Machine photo-5

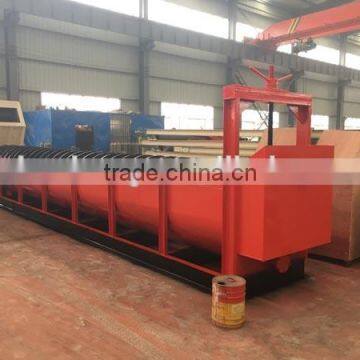

Washing Gold Machine,washing Stone Machine,sand Cleaning Machine photo-6
US$ 100 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Motor Type:
AC Motor
Power(W):
7.5kw
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao shanghai tianjing
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Motor Type AC Motor
Power(W) 7.5kw
Capacity(t/h) 5-20t
Place of Origin Henan, China
Brand Name huahong
Model Number XS0745
Dimension(L*W*H) 6200*800*1500
Weight refer to detail model
Certification ISO 9001;2000
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

 Sand washing machine ,Spiral stone washing machine









Screw sand washing machine features:

1, Reasonable structure, steady performance

2, Water-saving design

3, Low dissipation of sand

4, Novel sealing

5, Adjustable overflow weir

6, Reliable transmission system

Screw sand washing machine introduction:

It is generally used to clear up and remove dirt and impurity mixed in sandstone materials.

It has been widely used in metallurgy, construction, water conservancy, etc.

 Its handing capacity is greater and is the ideal equipment for the businesses who are required for great productivity of ore and stone cleanliness.




Stone washing machine main technical parameters

Models

XS0540

XS0745

XS1050

XS1254

XS1554

XS2060

Diameter of screw (mm)

500

750

1000

1200

1500

2000

Length of tub (mm)

4000

4500

5000

5400

5400

6000

Capacity (t/h)

3-10

5-20

10-30

30-50

50-80

80-120

Speed of screw (r/min)

18

18

18

16

16

14

Electric Motor Power(kW)

5.5

7.5

11

15

22

30

Dimension (mm)(L×B×H)

6200X670X1300

6200X800X1500

7300X1250X2200

7300X1440X2400

7300X1850X2800

8200X2450X3200





 Washing gold machine,washing stone machine,sand cleaning machineWashing gold machine,washing stone machine,sand cleaning machineWashing gold machine,washing stone machine,sand cleaning machineWashing gold machine,washing stone machine,sand cleaning machine

The wroking principle of sand washing machine

the spiral stone washing machine application of the spiral of our production is the use of washing machine stone buoyancy effect of water ,dust and impurities tobe sepratated and gravel .After stirring the leaves spiral to the purpose of treatment to impurities .Spiral stone washing machine in the tilted  arrangement of the lower part of the formation of the tank sedimentation tank ,screw the head into the sedimentation tanks,spiral by the motor speed reducer driven by the rotating spiral ,from the bottom of sedimentation tanks to wash into the water ,in order to complate the cleaning ,dehydration and sub-level three functions

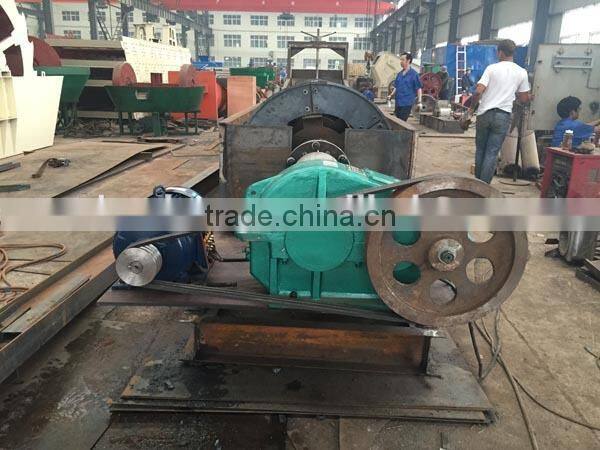

 The stone washing machine export

Washing gold machine,washing stone machine,sand cleaning machine

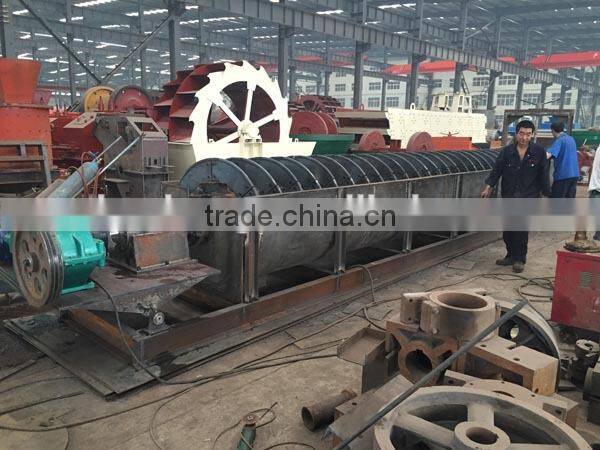

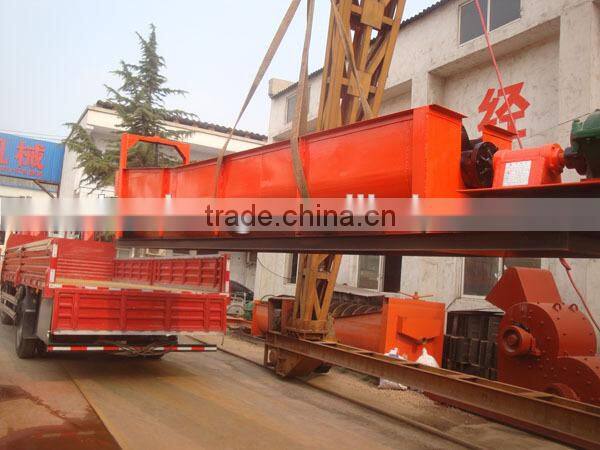

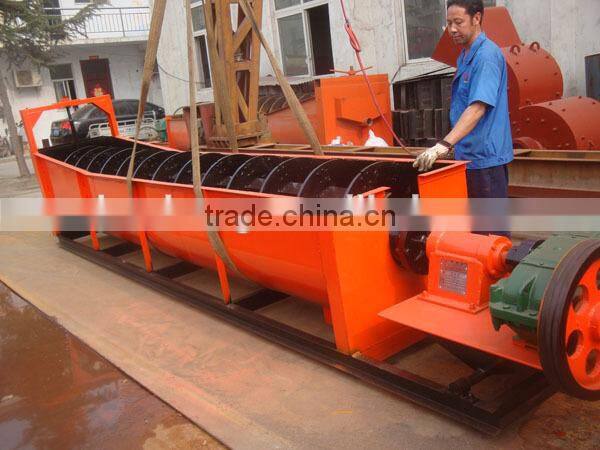

Hanging stone washing machine

Washing gold machine,washing stone machine,sand cleaning machine

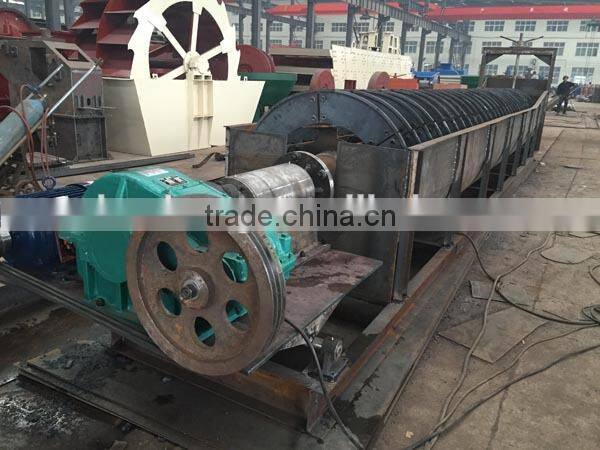

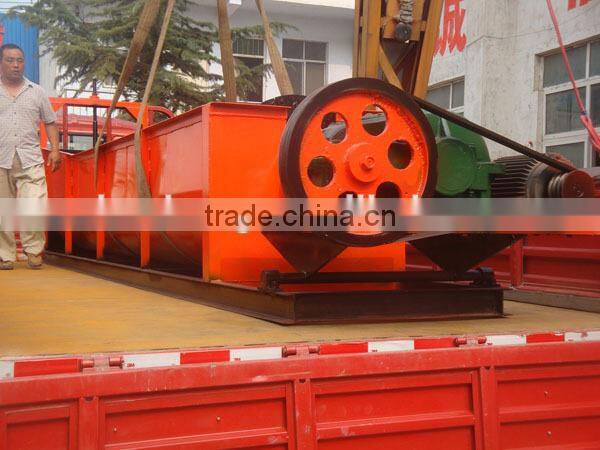

Loading for delivery

Washing gold machine,washing stone machine,sand cleaning machine

The stone shipped to port for export

Washing gold machine,washing stone machine,sand cleaning machine



Our Services

  1. Depending on customer’s requirement, we insist on “making profit at lowest investment” and choose best machine.
2. Design the most reasonable project and maximum customers’ profit.
3.Provide engineers to scene to plan work site.
4. Provide equipment list,design drawing, construction drawing, equipment install drawing.

During-sale:
1.Depend on scene, draw design drawing , construction drawing, equipment install drawing. 2.Manufacturing products strictly on contract while customer constructing.
3.Testing ex-work, delivery, customer acceptance.

After-sale:
1.Provide engineer to wok site guiding install.
2.Test equipment after installation, training operators.
3.Visit work site regularly



 About our company

1.Zhengzhou Huahong Machinery Equipment Co., Ltd. mainly produces iron selecting equipment,kinds of drederes, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on, there are more than hundred kinds of products.

2.We design produce various of products according to the customers requirement and geographical condition. It is a modern largescale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.

3.We attach the development of scientific research, and form strategic partnership with the major research institutions. And we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting.

4.Honesty and credit is our bussiness value , customer first.First-class quality and first-class service is the business life.



if you want to know more about the machine ,please contact me.

welcome to our factory ,we will provide the best machine for you with the lowest price
