Rice dryer,mini coal dryer,small rotary drum dryer

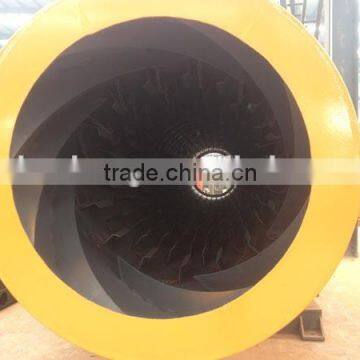

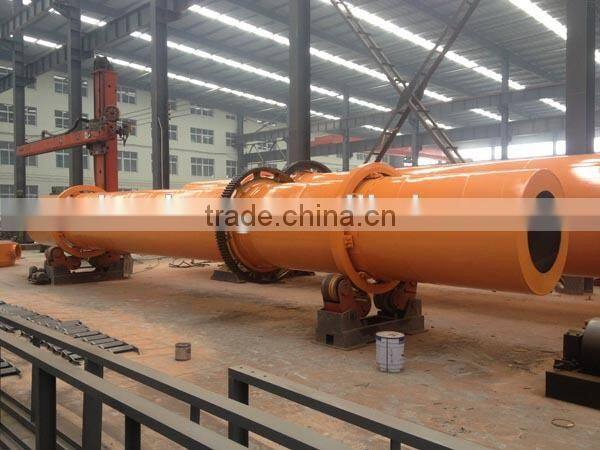

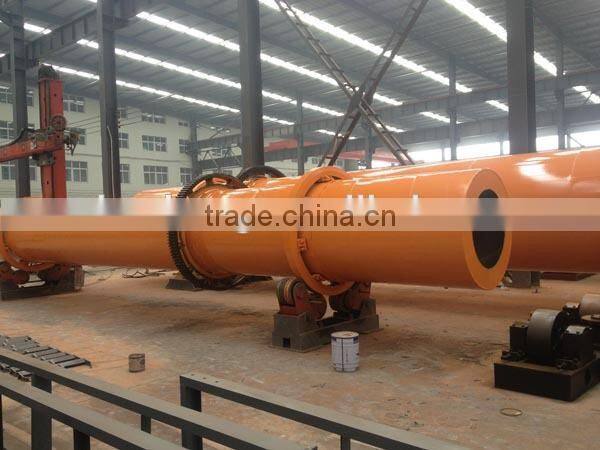

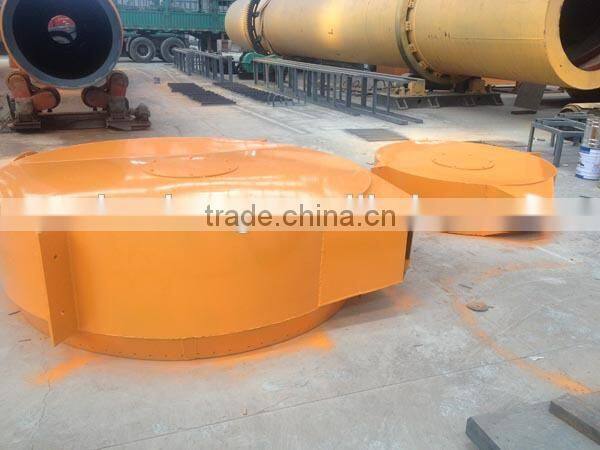

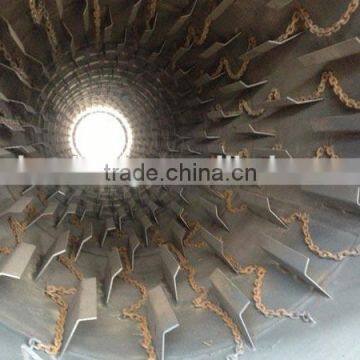

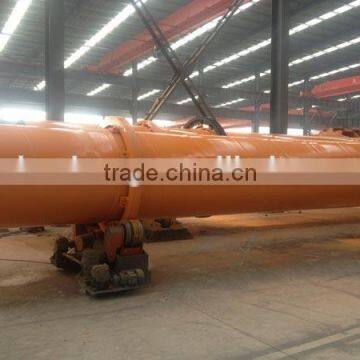

Some pictures show for our rotary dryerSome accories show for huahong rotary dryer
1. Brief description for rotary drum dryer:
Rotary drum rotary is also known as rotary drum dryer.Mainly composed of rotary body, lifting blade, driving device, supporting device and sealing ring and widely used in sawdust, wood chips, building materials, metallurgy, chemicals, industrial drying slag, cement limestone, coal, slag, clay.
2. Advantages for rotary drum dryer:
Rotary drum dryer is also known as rotary drum dryer.Mainly composed of rotary body, lifting blade, driving device, supporting device and sealing ring and widely used in sawdust, wood chips, building materials, metallurgy, chemicals, industrial drying slag, cement limestone, coal, slag, clay.
3. Working principle for rotary drum dryer:
Materials are sent to hopper of rotary rotary by belt conveyor or bucket elevator, then enter the barrel installed with slope to horizontal line from the higher side, and hot air enters the barrel from the lower side, and then materials and hot air mix together. Materials go to thelower side by gravity when the barrel is rotating. Lifters on the inner side of barrel lift materials up and down in order to make materials and hot air mix completely, which is designed to improve the producing efficiency of rotary dryer.
4. Techinical parameters for rotary drum dryer:
|
Model (mm) |
Obliquity(%) |
Rotation speed (r/min) |
Feeding temperature (degree) |
Power (kw) |
Capacity(t/h) |
Weight (t) |
Ø600x6000 |
3-5 |
3-8 |
<=700 |
3 |
0.5-1.5 |
2.9 |
Ø800x8000 |
3-5 |
3-8 |
<=700 |
4 |
0.8-2.0 |
3.5 |
Ø800x10000 |
3-5 |
3-8 |
<=700 |
4 |
0.8-2.5 |
4.5 |
Ø1000x10000 |
3-5 |
3-8 |
<=700 |
5.5 |
1.0-3.5 |
5.6 |
Ø1200x10000 |
3-5 |
3-8 |
<=700 |
7.5 |
1.8-5 |
14.5 |
Ø1200x12000 |
3-5 |
3-8 |
<=700 |
11 |
2-6 |
14.8 |
Ø1500x12000 |
3-5 |
2-6 |
<=800 |
15 |
3.5-9 |
17.8 |
Ø1800x12000 |
3-5 |
2-6 |
<=800 |
18 |
5-12 |
25 |
Ø2200x12000 |
3-5 |
1.5-6 |
<=800 |
18.5 |
6-15 |
33 |
Ø2200x18000 |
3-5 |
1.5-6 |
<=800 |
22 |
10-18 |
53.8 |
Ø2200x20000 |
3-5 |
1.5-6 |
<=800 |
30 |
12-20 |
56 |
Ø2400x20000 |
3-5 |
1.5-5 |
<=800 |
37 |
18-30 |
60 |
Ø3000x20000 |
3-5 |
1.5-5 |
<=800 |
55 |
25-35 |
78 |
Ø3000x25000 |
3-5 |
1.5-5 |
<=800 |
75 |
32-40 |
104.9 |
Zhengzhou Huahong Machinery to be the leading enterprise which is professional manufacture double roller crusher,grading crusher, double teeth roller crusher ,our double roller crusher with new design.We provide variety of double roller crusher with high processing capacity, featured structure. As a specialized manufacurer and exporter in china, Zhengzhou Huahong striving its best to service our customer.Our machines are all through ISO CE certificate. More details PLS click on http://zzhuahong.en.china.cn/
-
After-sell service
1) our engineer will guide and train worker to install and operate equipments, detailed installing drawing will be offered.
2) if there is any problem about equipments during reasonable operation within one year, we will ask engineer to solve problems for you.
PLS tell me below information for efficient quotation:
-What kind of material you are going to dry?
-Capacity T/P you need?
-Moisture before and after dry you required?
-Fuel available for the dryer?
