mould coal equipment with reliable quality
- 120 Set / Sets per Month
- tianjin shanghai qingdao
- T/T L/C D/P D/A Credit Card PayPal
- STLB30 mining machinery/gold centrifugal concentrator mineral separator
- STLB 20 centrifuge separator for gold mineral processing plant
- Regular Time Self Discharging Centrifuge Machine for Gold Concentrating
- mobile conveyor belt,Slat Conveyor,mining belt conveyor
- conveyor belt,rubber conveyor belting
- High quality mini three wheel dumper trike for underground mining
Product Details
Condition: | New | Production Capacity: | High | Motor Type: | AC Motor |
Power(W): | 5.5kw | Place of Origin: | Henan, China | Brand Name: | Huahong |
Model Number: | ZKBM | Dimension(L*W*H): | 2983mm*2293mm*2112mm | Certification: | ISO9001:2008 |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |

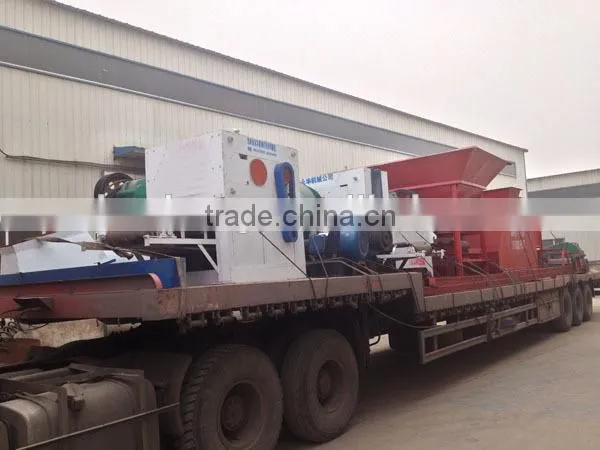

Packaging Details
wooden box, as clients' requirement
Product Description

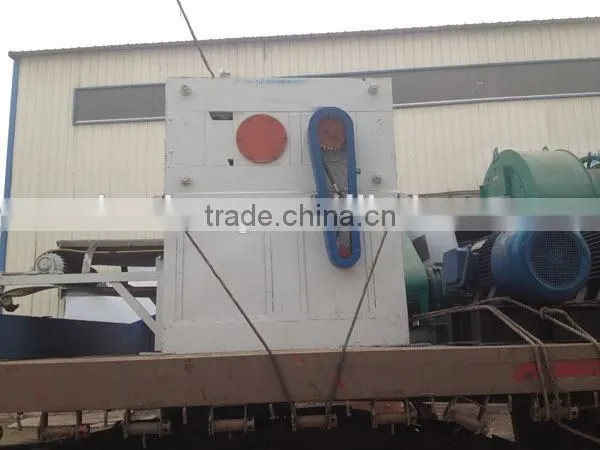

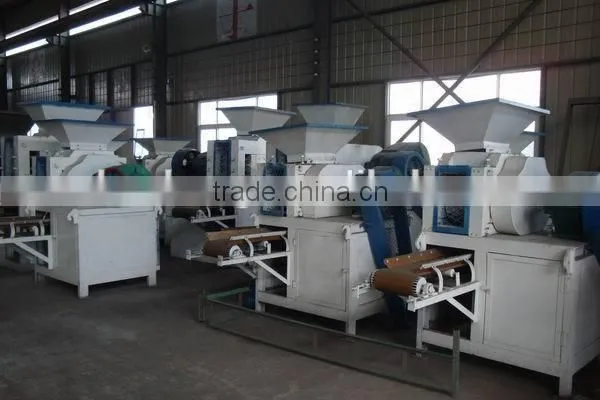

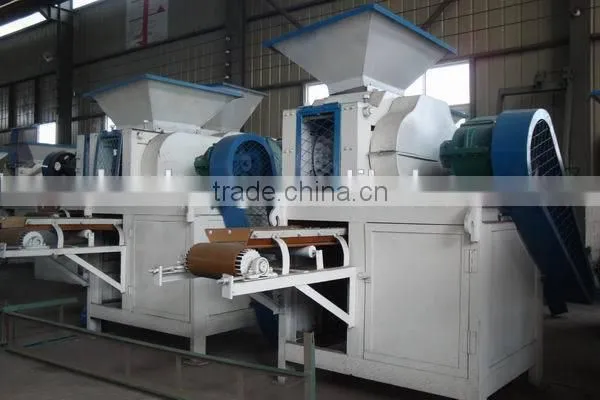

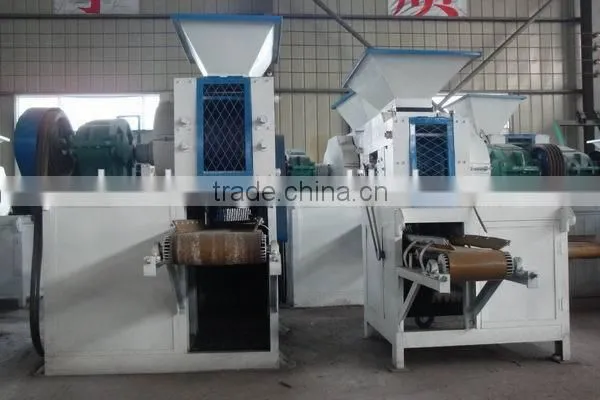

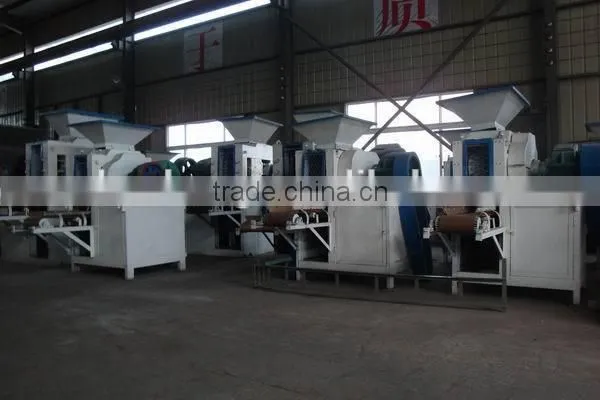

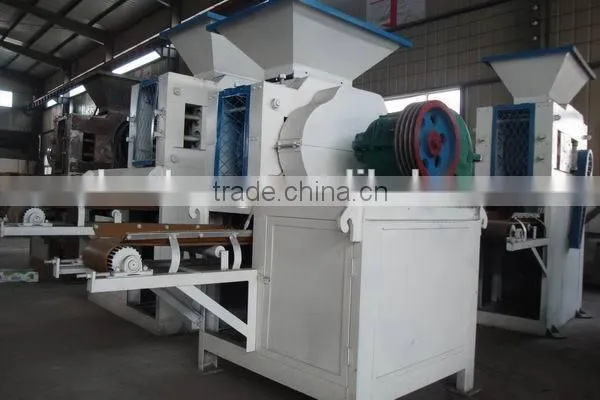

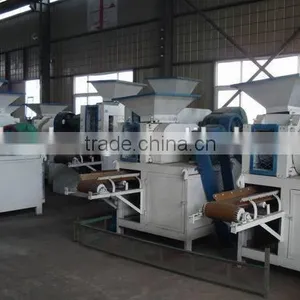

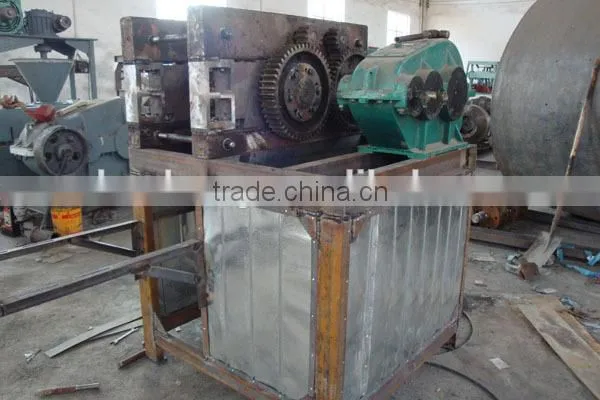

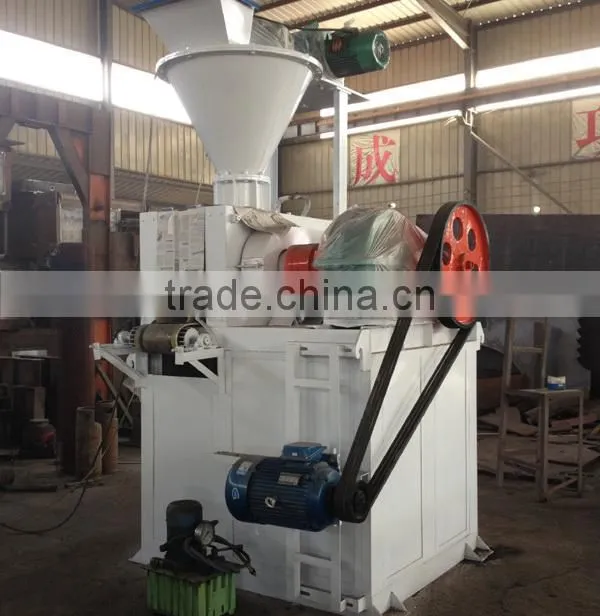

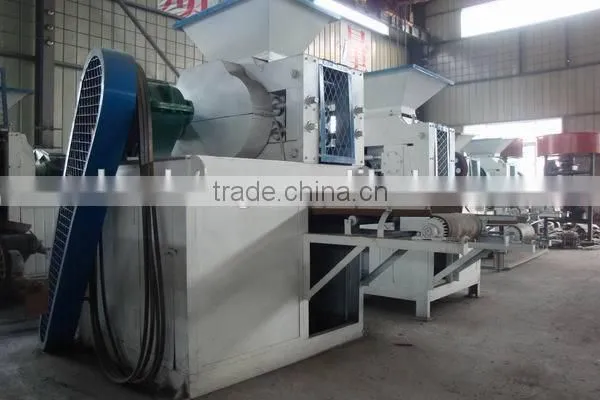

Introduction Ball Press Machine:
Ball Press Machine is based on the direction of development of domestic and foreign
counterparts,collect the advantages of similar powder briquette ,machine, make full use of advanced

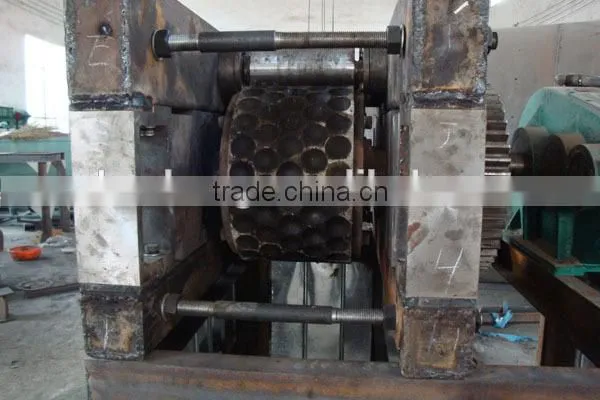

technology to develop a new generation of products. Pressure roller adopt wearresisting alloy forged,
bearing with bearing series mill,spindle uses large diameter 40Cr after forging, quenching and tempering,
the hydraulic system by the formal large matching.Ball Press Machine is mainly used for
anhydrous materials of nonferrous and ferrous mineral powder briquette /ball making system before the
smelting furnace, such as coal,coke powder, coking coal, coal ash, coal mud, iron ore concentrates,
chromate ore concentrates, mgo power, copper power, chrome ore power, Lead Zinc Ore, steel slag,
aluminum ash, SiMn mineral powder, bauxite refractory, nonferrous metal power, refractory matter,
ceramic filter sand and metallurgical powder cold pellet making industry.
Application of Ball Press Machine:
The Ball Press Machine is widely used in the field of metallurgy, chemical, refractories etc,
for reducing bug dust,recycling, easy transportation,controlling volume and storage. It has the properties
of high efficiency, energy saving and environment protection.Briquette machine is aimed at reducing
dust pollution,control capacity,waste recycling,easy to transport.In the steel mills,lime plants,metallurgy,
refractory furnace charge, metallic magnesium plant calcined white powder pressure ball made block
use very extensive.
Main Technical Paramaters
Model | Reducer | Speed ratio | The dimension of pressing roll | Speed of main shaft | Model of motor | Power | Output(t/h) | Assembly bearing | Overall dimension (m) |
YHQ360-4 | ZQ350 | 1:31.5 | φ360*250 | 15-17r/min | Y132M-4 | 7.5KW | 3-5 | 3516*4 3508*4 CUP206*4 | 2.26*1.53*1.98 |
YHQ360-2 | ZQ350 | 1:31.5 | φ360*250 | 15-17r/min | Y132M-4 | 7.5KW | 3-5 | 3516*4 CUP206*4 | 2.26*1.53*1.76 |
YHQ400-4 | ZQ400 | 1:31.5 | φ400*250 | 15-17r/min | Y160M-4 | 11KW | 4-7 | 3516*4 3508*4 CUP206*4 | 2.3*1.38*1.96 |
YHQ400-2 | ZQ400 | 1:31.5 | φ400*250 | 15-17r/min | Y132M-4 | 7.5KW | 4-7 | 3516*4 CUP206*4 | 2.2*1.38*1.91 |
YHQ430-4 | ZQ400 | 1:31.5 | φ430*250 | 15-17r/min | Y160M-4 | 11KW | 5-8 | 3516*4 3508*4 CUP206*4 | 2.4*1.53*2 |
YHQ430-2 | ZQ400 | 1:31.5 | φ430*250 | 15-17r/min | Y132M-4 | 7.5KW | 5-8 | 3516*4 CUP206*4 | 2.3*1.53*1.9 |
YHQ500-4 | ZQ500 | 1:31.5 | φ500*350 | 15-17r/min | Y180L-4 | 22KW | 8-10 | 3522*4 3508*4 CUP206*4 | 2.61*1.75*2.35 |
YHQ500-2 | ZQ500 | 1:31.5 | φ500*350 | 15-17r/min | Y160L-4 | 15KW | 8-10 | 3522*4 CUP206*4 | 2.61*1.75*2.1 |
YHQ650-4 | ZQ650 | 1:31.5 | φ650*350 | 15-17r/min | Y1200L-4 | 30KW | 12-20 | 3528*4 3508*4 CUP206*4 | 3.42*2*2.4 |
YHQ650-2 | ZQ650 | 1:31.5 | φ650*350 | 15-17r/min | Y180L-4 | 22KW | 12-20 | 3522*4 CUP206*4 | 3.42*2*2.2 |
YHY750-4 | ZQ750 | 1:31.5 | φ750*380 | 14-16r/min | Y200L-4 Y112M-4 | 30KW 4KW | 25-30 | 3538*4 3509*4 206*4 | 3.7*2.55*2.6 |
YHY850-4 | ZQ850 | 1:31.5 | φ850*436 | 14-16r/min | Y225S-4 Y112M-4 | 37KW 4KW | 35-40 | 3540*4 3509*4 206*4 | 3.9*2.6*2.7 |
YHY1000-4 | ZQ1000 | 1:31.5 | φ1000*530 | 14-16r/min | Y225M-4 Y112M-4 | 45KW 4KW | 40-45 | 3544*4 3509*4 206*4 | 4*2.8*2.8 |
Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
1.Enough details about the ores or slags shall be learned, sometimes a test is needed for some ores.
2. Equipment of right model is selected for customers.
3. Customized products and processing flow sheet can be designed and developed to meet customer's special needs,
4. Engineer could be sent to observe customer's working site to come up with an optimized solution accordingly.
On-sales service:
Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
1. Inspection is a must before delivering of the goods.
2. Assistance to make a construction plan by supplying all drawings and data needed.
3. Most favorable scheme for you with the guaranteed quality.
4. Timely communication to make sure improvement of project and your requirement met.
After-sales service:
1. Installation, adjustment, and testing of equipment is available.
2. Train of technicians and workers at site is promised.
3. Service engineers will not leave until ensuring the whole line running well after the installation & adjustment is finished.
4.If any failure or question about the machines or the processing line, contact us and we are available at any time.
