Gold Selecting Machine Centrifuge Separator Machine

1. Centrifuge separator machine  Introduction

The Water Jacket Alluvial Gold Concentrator is a high efficiency gold separation machine with updated technology. Taking advantage of the traditional gold centrifugal concentrator, the Water Jacket Alluvial gold concentrator offers a solution to handle the hardened material, which will decrease the recovery rate during the separation process. The solution is to add a water jacket device inside the concentrator.

The application shows that gold grain size less than 5mm, the recovery rate up to 90%, while gold grain size less than 2.5mm, the rate can be 92%.

2. Centrifuge separator machine Structure

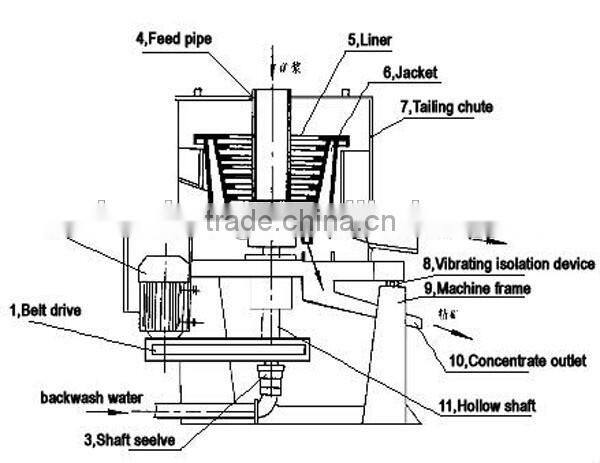

 Water Jacket gold concentrator consists of pipelines, mainframe, tailing chute, drive motor, vertical shaft and separation device.

The separation device is cone unit includes two layers; the inner layer is made by stainless steel plate, with circle gratings and small holes on the wall, the outer layer is made by mild steel plate. The two layers form a close water jacket system.

3. Centrifuge separator machine operation principle

 The main shaft is a hollow shaft, the pressurize backwash water come from the shaft, then goes into the separation unit, the water spray from holes to the gratings. During the process, the pressure of the water shall be 0.06-0.15MPa.

The slurry which is mixed with water and grinded ore and sand will be injected to the mainframe. With the heavy centrifugal force, the slurry will be move upward along the cone body, the light particles will be extracted from the upper part of cone, then discharge through the tailing outlet. The heavy particles will be stay in the gratings of the inner layer.

4.Centrifuge separator machine Technical Data

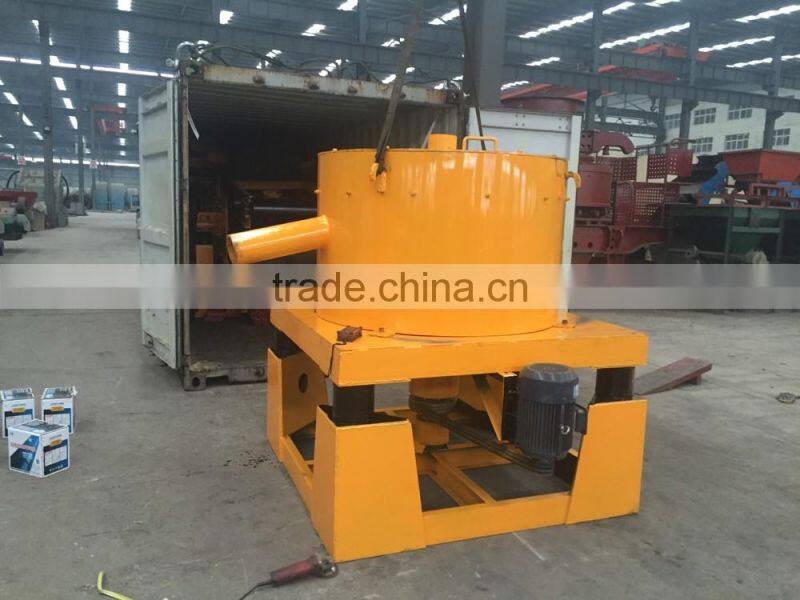

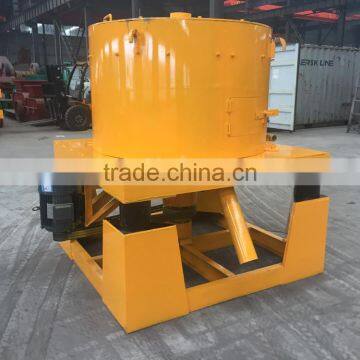

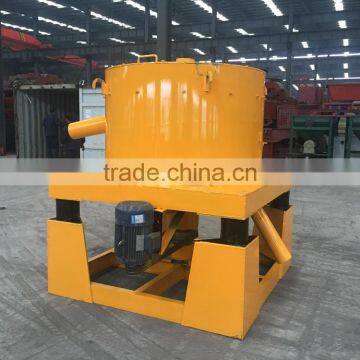

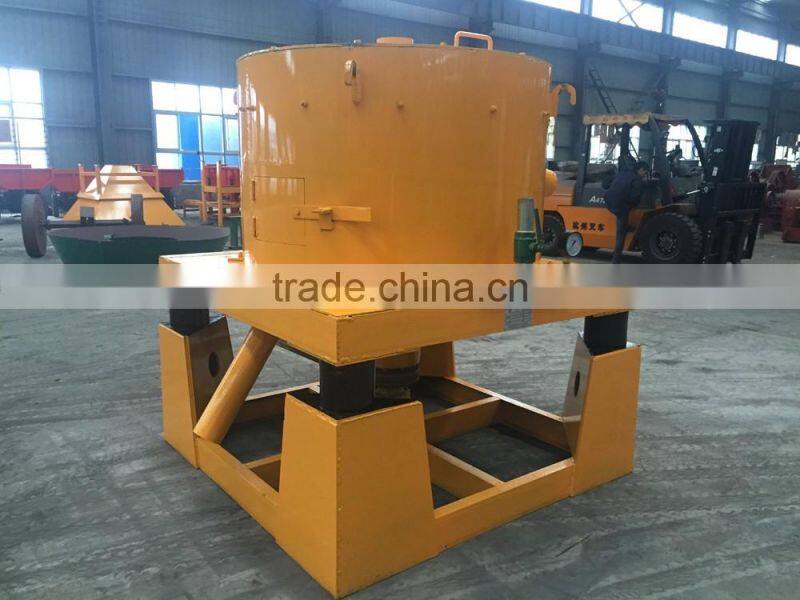

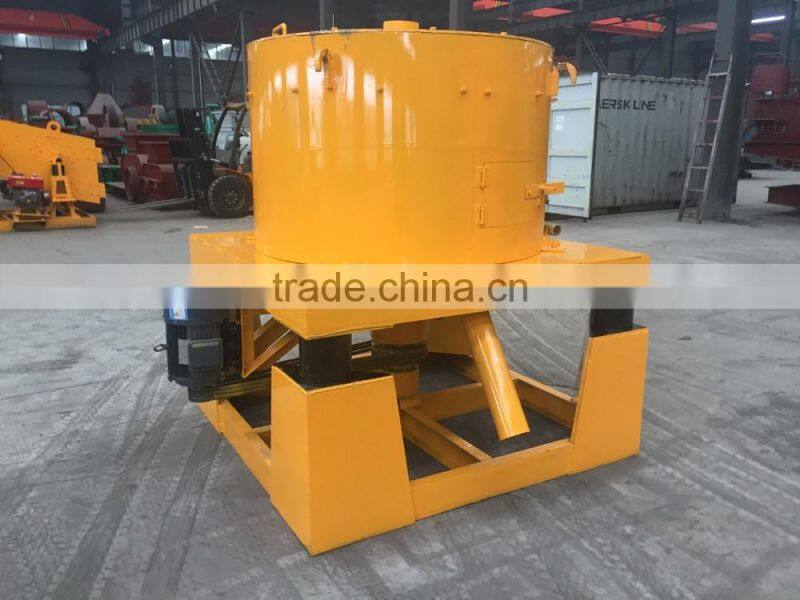

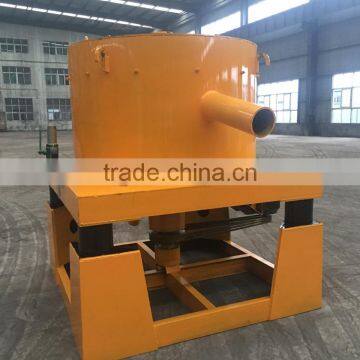

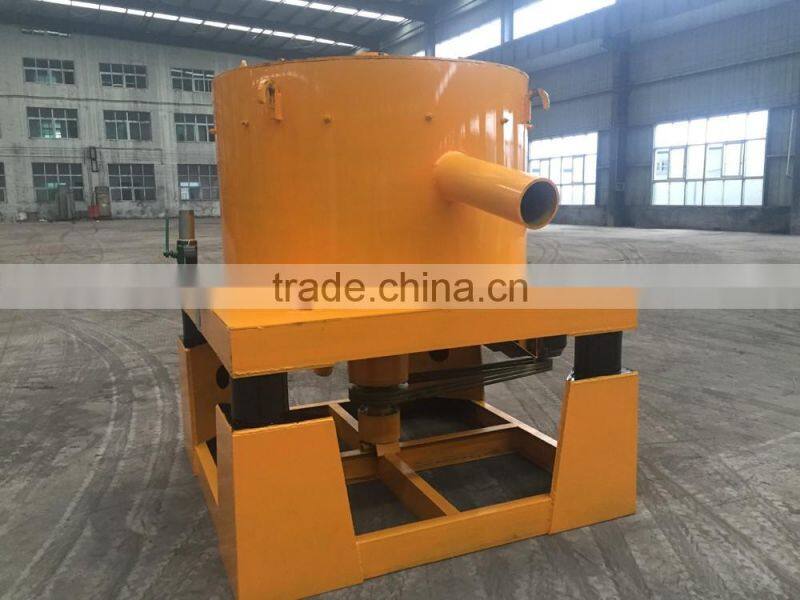

 Photo reference:

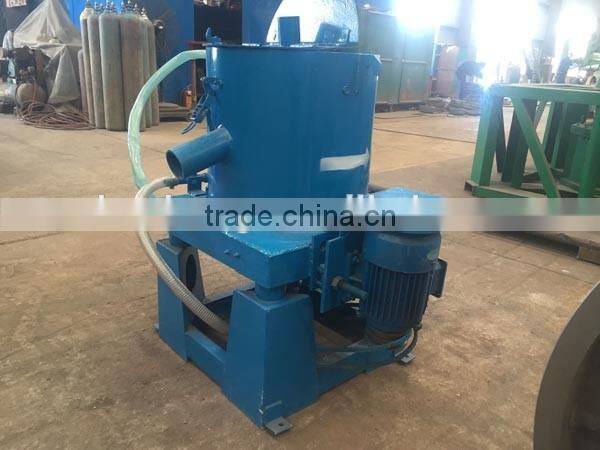

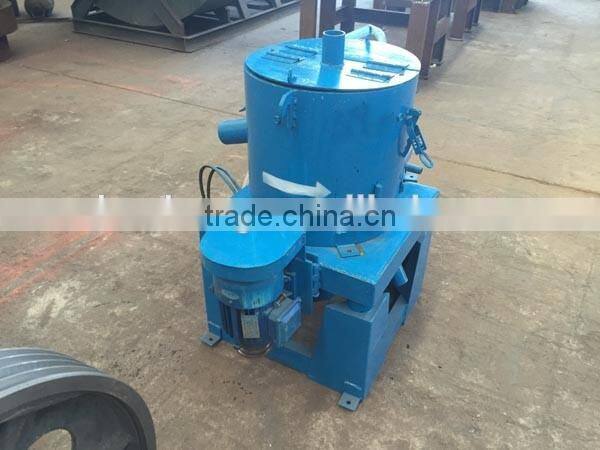

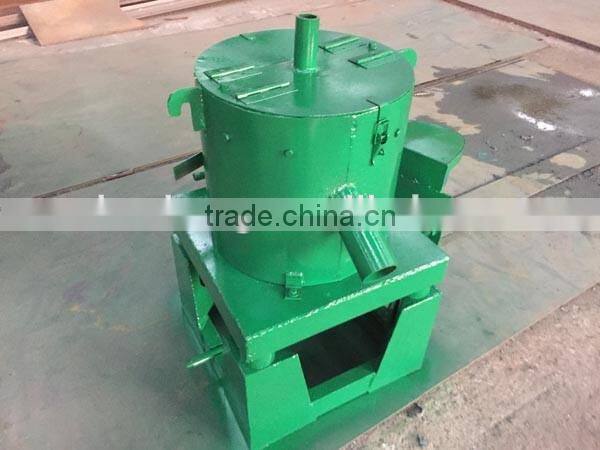

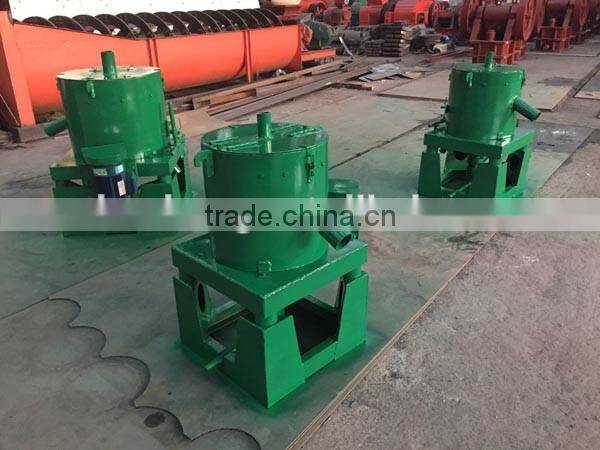

Small type Centrifuge separator machine

Packaging Detail:

All the cargos are packed by crate wood,other parts are nude package ,or as client demand.

Delivery Detail:

• If the size is suitable for container ship, usually by container;
• If the size is too big, usually by bulk ship or by container after truncation;
• Transport ways are based on reducing cost for you and keep the crane performance!
• We have developed long-term and excellent relationship with many ocean freight partners, such as

           APL, COSCO, OOCL, CSCL, MSC, etc. And train carrying is also available.The complete mode of

           shipping and best service with lowest price are always provided for customers.

1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.

4>.We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.
