Help CenterMini Type Magnetic Separator/small Laboratory Magnetic Separator
Related Products
-
2014 Wet Type Iron Ore Equipment Magnetic SeparatorUS$ 300 - 9,000MOQ: 1 Set -
2014 Brand New Magnetic Seperator Used in Iron Ore Benefication PlantUS$ 300 - 9,000MOQ: 1 Set
-
Reliable Quality Magnetic Separator/High Performance Magnetic Extractor/ Magnetic CobberUS$ 1,000 - 80,000MOQ: 1 Set
-
Magnetic Roll Separator/magnetic Iron Separator/magnetic Ore SeparatorUS$ 500 - 50,000MOQ: 1 Set
-
Laboratory Magnetic Separator Price/Magnetic Separator PriceUS$ 500 - 50,000MOQ: 1 Set
Specifications
laboratory magnetic separator1,high magnetic intensity
2,low energy consumption
3,simple structure and easy to maintain

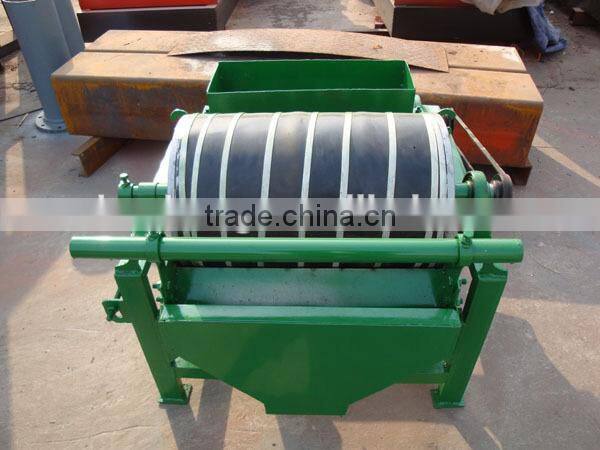

Mini type magnetic separator/small laboratory magnetic separator
1. Small laboratory magnetic separator introduction
Small laboratory magnetic Separator is used to separate magnetite,hematite,limonite,pyrrhotite,ilmenite smaller than 3 mm in wet way.It is also used to separate iron in coal,nonmetallic ore,construction industry,etc.We can provide magnetic separators of forward flow,semi counter flow and counter flow types according to customers’ request.
2. Working principle of small laboratory magnetic separator
Slurry enters chute through ore tank firstly, and then separating zone by waterpower.Mineral with strong magnetism is absorbed on the barrel surface, sent to concentrate discharging zone and discharged into concentrate box by water effectGangue and ore with weak magnetism are discharged into a pipe in opposite direction of barrel.
3. Features of small laboratory magnetic separator
1).High magnetic intensity.
2).Low energy consumption.
3).Good beneficiating efficiency.
4).Simple structure and easy maintenance.
4. Main technical parameter
Model | Shell Diameter(mm) | Shell Length(mm) | Feeding Size(mm) | Processing Capacity(t/h) | Power(kw) | Weight(T) |
CTB612 | 600 | 1200 | 2-0 | 10-20 | 1.1 | 1.5 |
CTB618 | 600 | 1800 | 2-0 | 15-30 | 2.2 | 1.8 |
CTB718 | 750 | 1800 | 2-0 | 25-45 | 3.0 | 2.2 |
CTB918 | 900 | 1800 | 3-0 | 35-70 | 4.0 | 2.8 |
CTB1018 | 1050 | 1800 | 3-0 | 40-75 | 5.5 | 4.3 |
CTB1024 | 1050 | 2400 | 3-0 | 52-100 | 5.5 | 5.2 |
CTB1218 | 1200 | 1800 | 3-0 | 47-90 | 5.5 | 5.0 |
CTB1224 | 1200 | 2400 | 3-0 | 80-120 | 7.5 | 6.4 |

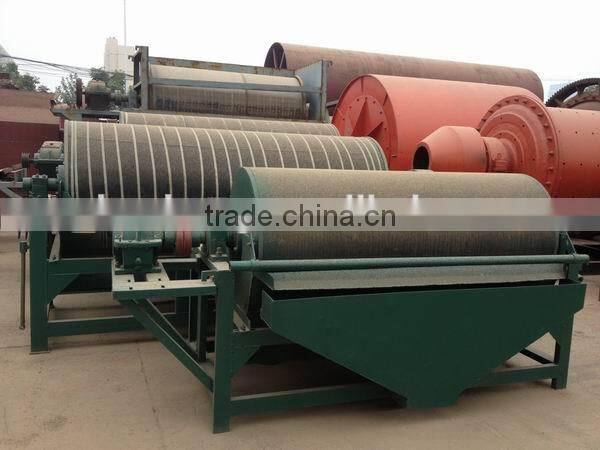

Manetic Separator in stock:

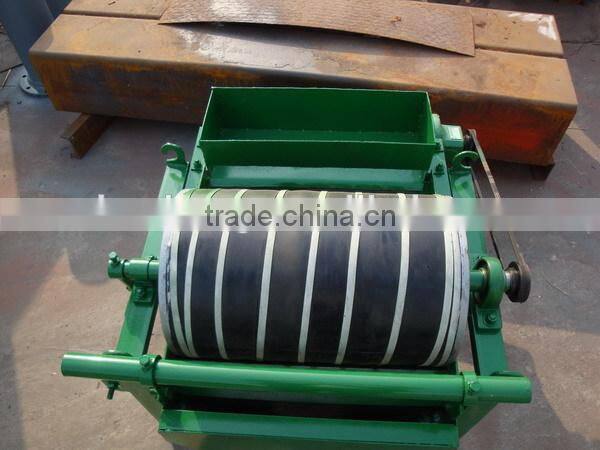

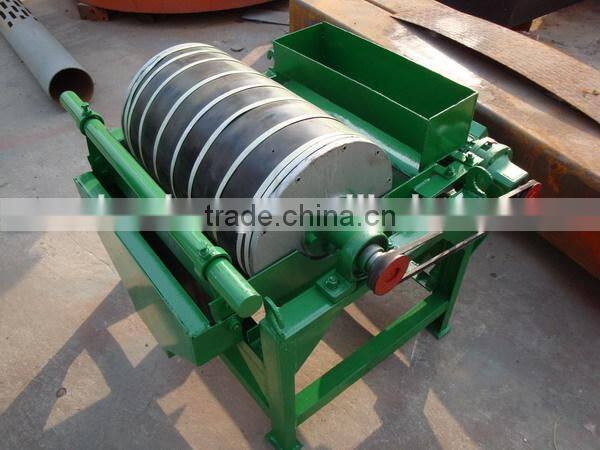

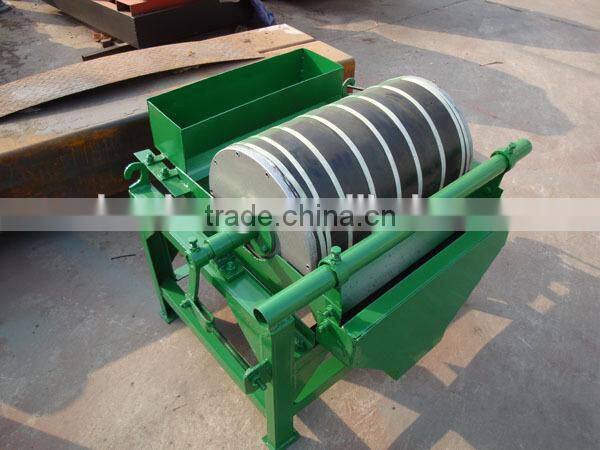

Small Laboratory Magnetic Separator overviews:

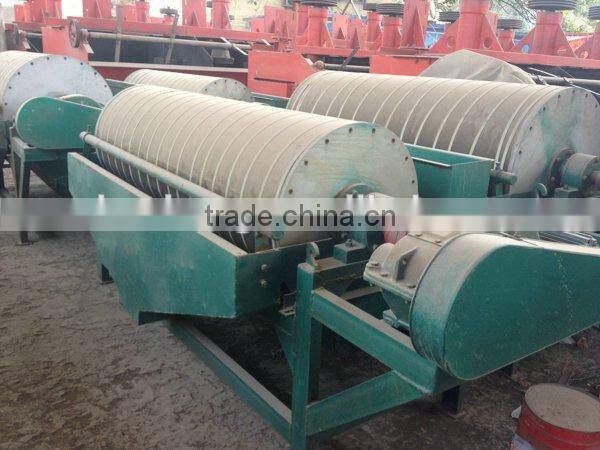

Large type Maganetic Separator practise using:

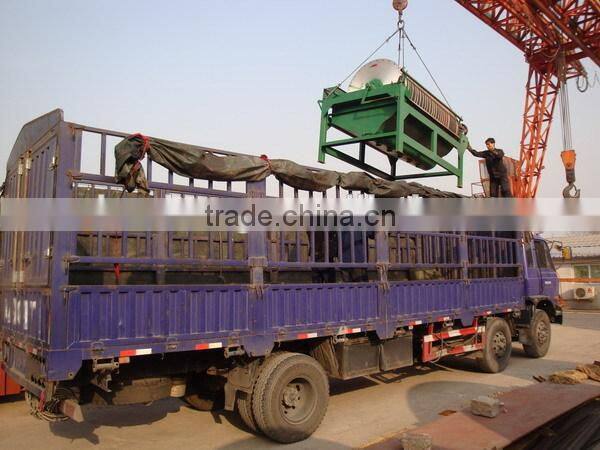

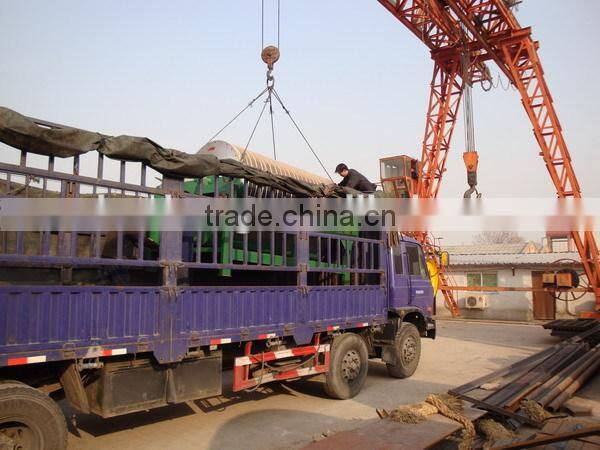

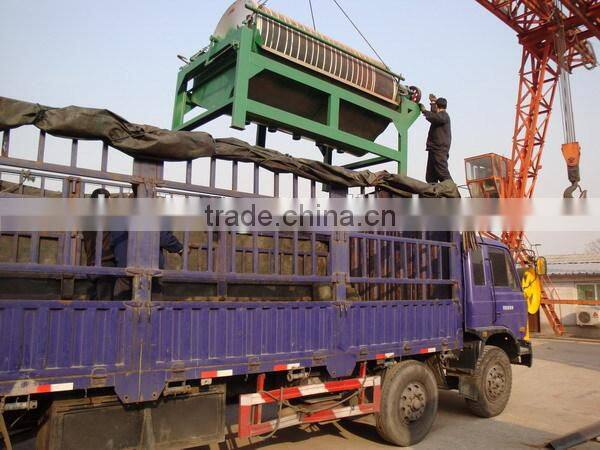

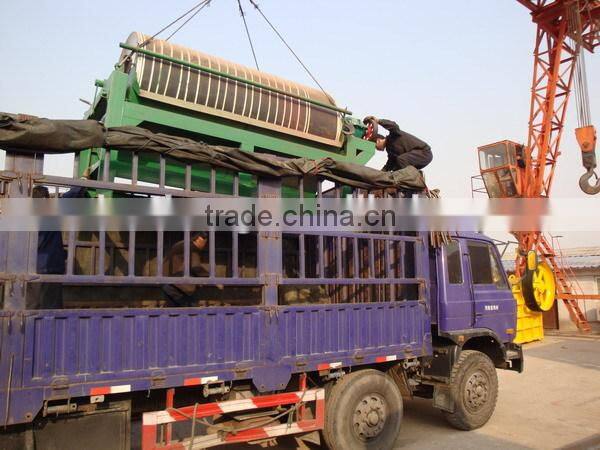

Maganetic Separator in shipment
Excellent quality identified by all the Qualifications:
Welcome to visit our factory!
