Specifications
Flotation tank1.direct or reverse flotation
2.steady performance, high refine ratio
3.low energy cost
4.nonmetal or metal
Flotation tank
Feature
1.strong mixing force makes large material float
2.steady performance to separating complex ore and high grade mine
3.low energy cost
Function and usage
Flotation machine can be used in coarse separating, fine separating and counter-floatation of nonferrous metal,
ferrous metal and nonmetal mine such as coal, lead, iron, molybdenum, copper, zinc and nickel.
It consists of slurry trough, mixing part, air filling part, motor and mineral foam removing part.
When slurry is filled into trough, mixing blade stirs to let air in. Due to different hydrophilicity, some mineral sticks to
floating air bubble, then the removing part gets it out from the mixture.
Technical data
Model |
XJK-0.35 |
XJK-0.62 |
XJK-1.1 |
XJK-2.8 |
Available volume(m3) |
0.35 |
0.62 |
1.1 |
2.8 |
Capacity(m3/min) |
0.18-0.4 |
0.3-0.9 |
0.6-1.6 |
1.5-3.5 |
Rotating speed(r/min) |
470 |
400 |
330 |
280 |
Wheel diameter(mm) |
300 |
350 |
500 |
600 |
Power(kw) |
1.5+1.1 |
3+1.1 |
5.5+1.1 |
11+1.1 |
Weight(t/single trough) |
0.43 |
0.86 |
1.38 |
2.33 |

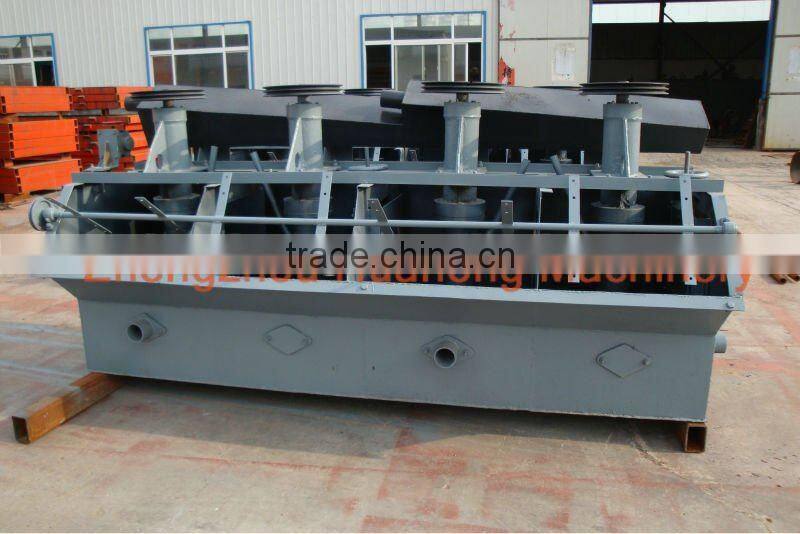

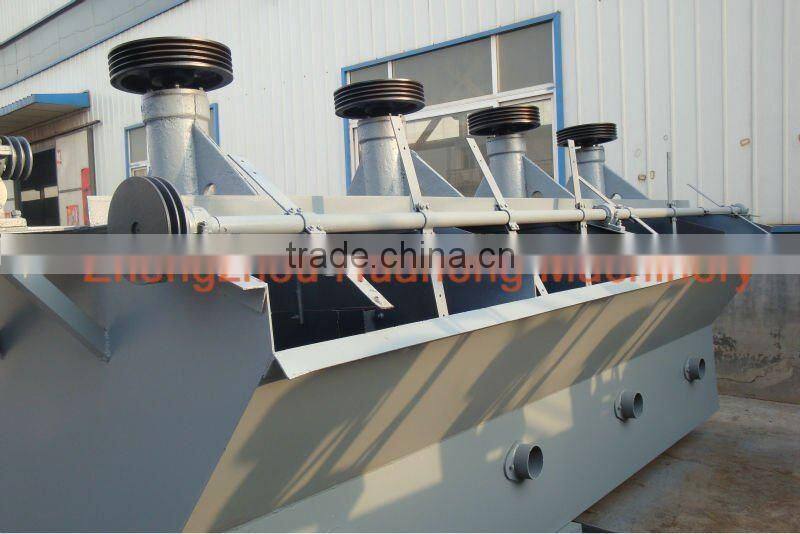

Flotation machine pictures
