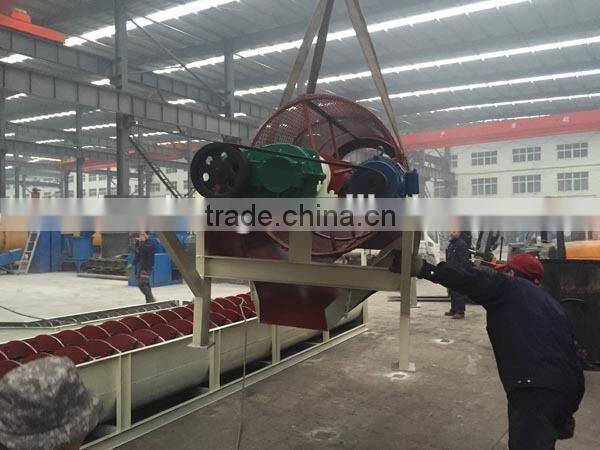

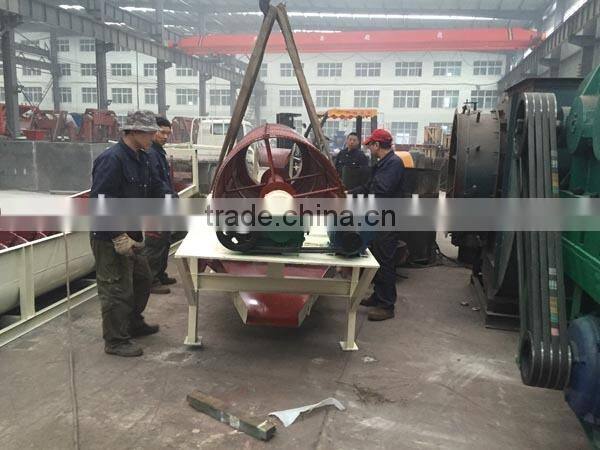

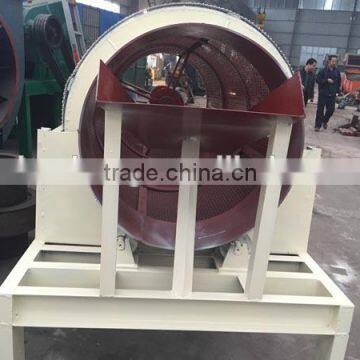

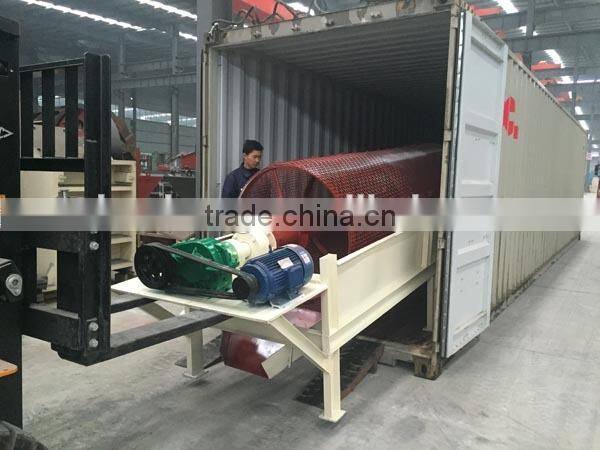

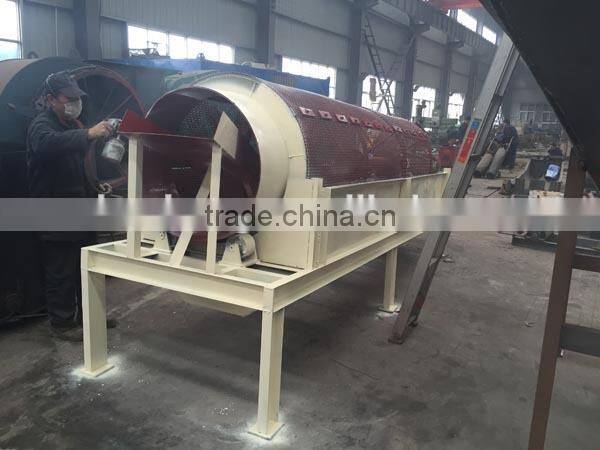

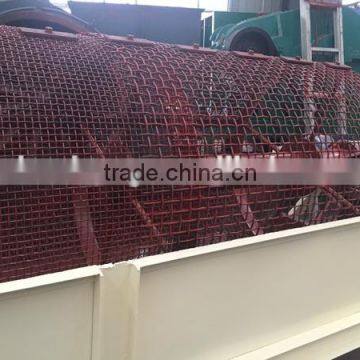

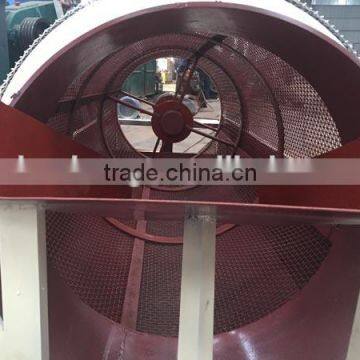

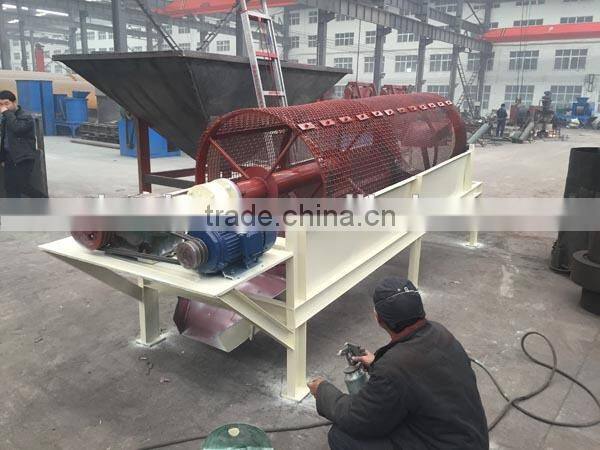

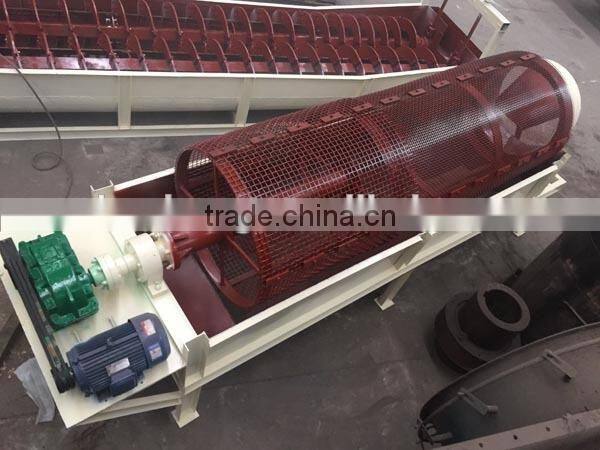

Help CenterModel GTS 1020 Trommel Screen,high Efficiency Gold Washing Screen
Related Products
-
Gold Washing Plant ,trommel Sieve ,stone Rotary ScreenUS$ 100 - 50,000MOQ: 1 Set -
Small Trommel Screen, Mini Mobile Gold Washing PlantUS$ 1,000 - 7,000MOQ: 1 Set
-
Small Soil Drum Screen for SaleUS$ 1 - 4,000MOQ: 1 Set
-
One Step New Design Rotary Drum Sand ScreenUS$ 1 - 4,000MOQ: 1 Set
-
Small Trommel, Mini Gold Wash Plant, Trommel Screen for SaleUS$ 3,000 - 7,000MOQ: 1 Set
Application of rotating drum sieve
Rotating drum sieve are always used in processing minerals such as ferrous metals including hematite & magnetite And nonferrous metals including Lead, Zinc, Gold and Silver etc.
♦ Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
♦ Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
♦ Chemical, Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
♦ Metallurgy, construction and other industries
operation and Maintanance of rotating drum sieve
1, First open the cage while driving screen, opens after feeding equipment; stopping the opposite;
2, Run three days before, to cage drum sieve every day check fasteners, if loose fastening in a timely manner. Periodically thereafter (or a week and a half month) cage screen fastener for checking and processing;
3, Housings, transmission should be checked periodically lubricating and fuel and oil in a timely manner. Axis bearings, 2nd lithium base grease, under normal circumstances, every two months filling grease, amount raised should not be excessive, otherwise easily cause bearing overheating. Bearings should be cleaned check once a year.
4, The long haul deactivate (more than 30 days) to restart the motor insulation should be shaking when measuring to avoid motor burn.
Advantage of rotating drum sieve
1. Low cost, for alluvial gold plant.
2. Includes the washing function and separating function, very high efficiency,pay back very soon.
3. Small Volume,Easy Movable,Support Wheels.
4. Diesel enigne/electric motor available.
5. Easy and convinient operation.
6. Strong body, our engineer has redesigned the frame, use thicker and stronger material for all the part.
7. The size and capacity can be customized.
Main technical parameters of Rotary Screen:
Model |
Capacity |
Power |
Screen Diameter |
Screen Length |
Discharge Size |
Input Size |
Dimension |
Weight |
(t/h) |
(kw) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
GTS1015 |
50 |
3.0 |
1000 |
1500 |
0~100 |
≤300 |
2600×1400×1700 |
2200 |
GTS1020 |
100 |
4.0 |
1000 |
2000 |
3390×1400×2140 |
2800 |
||
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146×1600×2680 |
4200 |
||
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460×1900×2820 |
5100 |
||
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960×1900×3080 |
6000 |
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500×2350×4000 |
7500 |
||
GTS2055 |
600 |
22 |
2000 |
5500 |
7500×2550×4800 |
9600 |
||
GTS2265 |
800 |
30 |
2200 |
6500 |
8500×2750×5000 |
12800 |
Certificate
