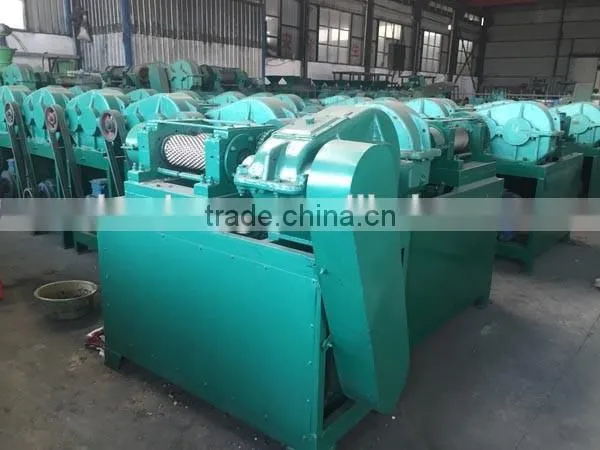

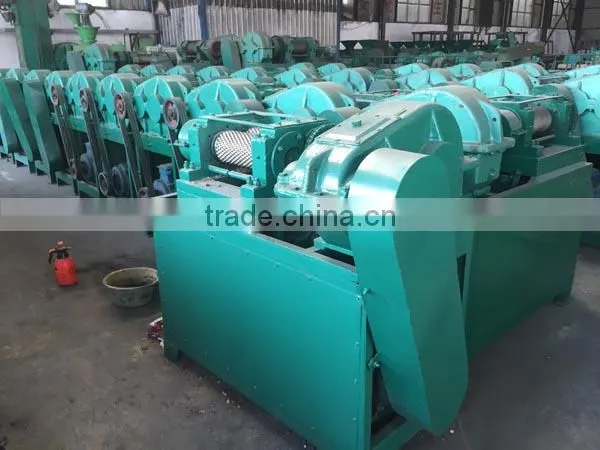

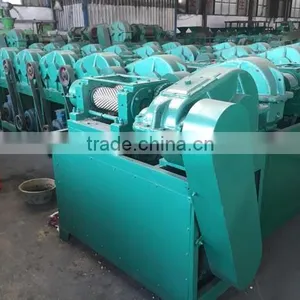

double roller compaction granulator manufacturer

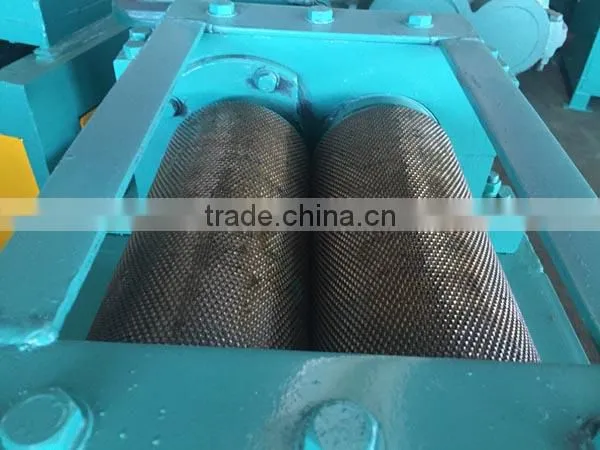

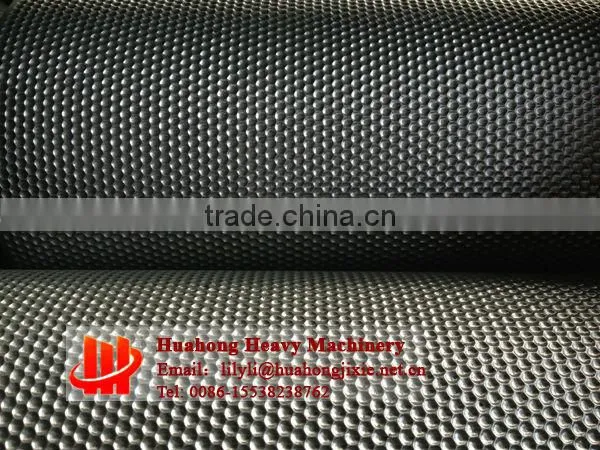

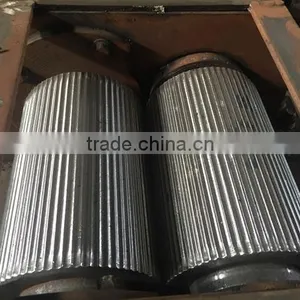

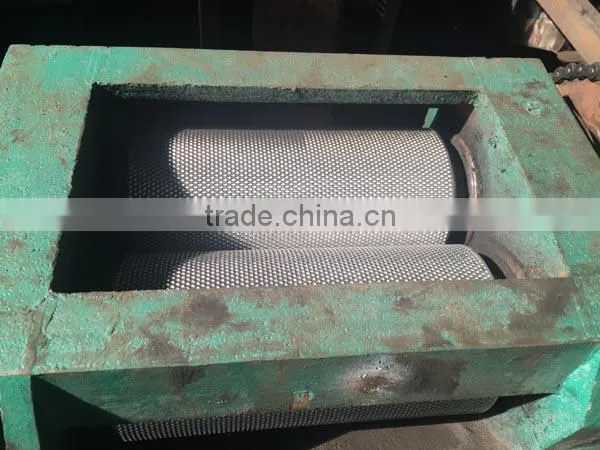

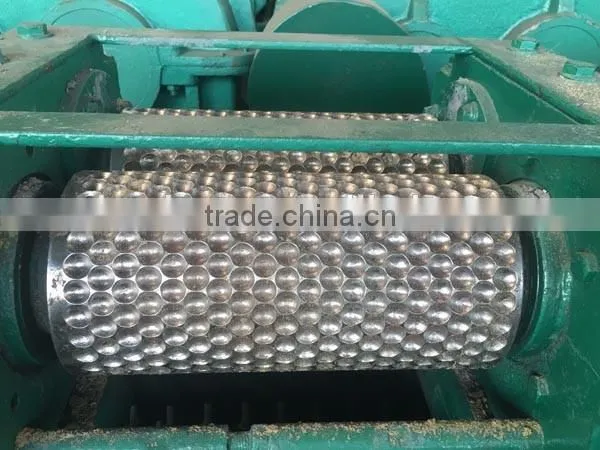

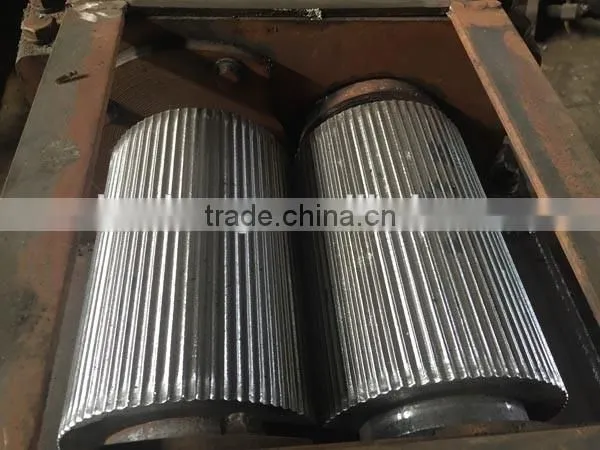

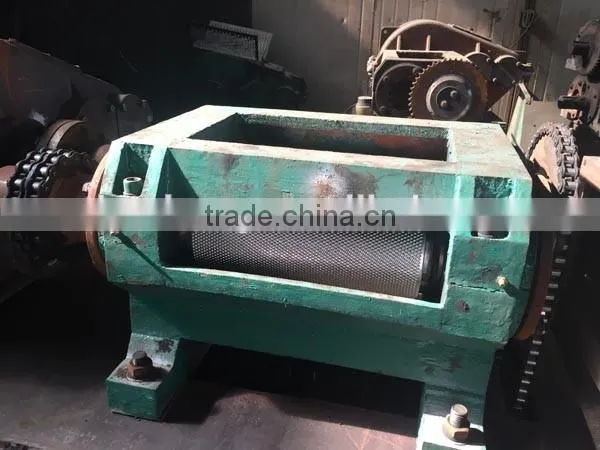

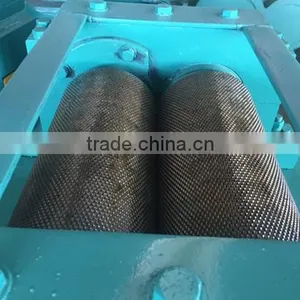

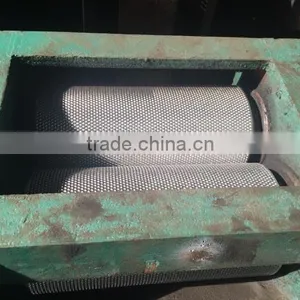

Fertilizer Roller Granulator/Extrusion pellet machine/pelletizer combine granulating, forming, screening into one machine, making beautiful appearance granules, easy operation and low energy consumption, etc. The main components, such as the roller body, is made of a new type of metal which is anticorrosive,wearable and impact resistance. Especially, DZJ-II not only has the above features, but also upgrades its rack. The bearing frame body is made of high quality and anticorrosive cast materials, so that it become more stable and extends the roller’s service life.
double roller extrusion granulator parameter:
Model |
DZJ-I 1.0 |
DZJ-I 2.0 |
DZJ-I 3.0 |
DZJ-I 4.0 |
DZJ-II 1.0 |
DZJ-II 2.0 |
Production(t/h) |
1~1.5 |
1.5~2.5 |
2.5~3.5 |
3.5~4.5 |
1~2 |
1.5~2.5 |
Power |
15KW |
18.5KW |
30KW |
45KW |
15KW |
18.5KW |
Pressure rollerSpec |
Φ150×22O |
Φ150×30O |
Φ186×30O |
Φ300×30O |
Φ150×22O |
Φ150×30O |
Feed size |
less than 0.5mm |
less than 0.5mm |
less than0.5mm |
less tahn 0.5mm |
less than 0.5mm |
less than 0.5mm |
Finished productSpec |
Φ2.5~Φ10 |
Φ2.5~Φ10 |
Φ2.5~Φ20 |
Φ2.5~Φ30 |
Φ2.5~Φ10 |
Φ2.5~Φ20 |
Speed reducer Model |
ZQH350 |
ZQH400 |
ZQH400 |
ZQH500 |
|
|
Material moisture content |
2%~5% |
2%~5% |
2%~5% |
2%~5% |
2%~5% |
2%~5% |

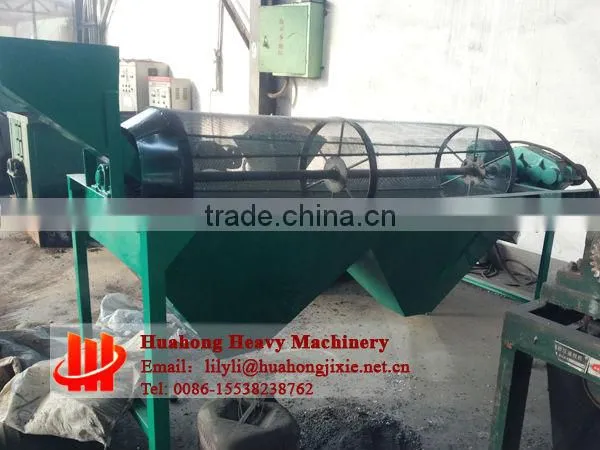

The discharge material by following trommel screen to screen:
This is raw material:
This is finial production:
