World Brand 3Ton Articulated Mini Wheel Loader With 1.8m3 Bucket Size

World Heavy Industry (China) Co., Ltd.
World Brand 3Ton Articulated Mini Wheel Loader With 1.8m3 Bucket Size thumbnail-1
World Brand 3Ton Articulated Mini Wheel Loader With 1.8m3 Bucket Size thumbnail-2

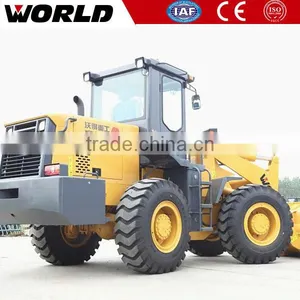

World Brand 3Ton Articulated Mini Wheel Loader With 1.8m3 Bucket Size thumbnail-3
World Brand 3Ton Articulated Mini Wheel Loader With 1.8m3 Bucket Size thumbnail-4
World Brand 3Ton Articulated Mini Wheel Loader With 1.8m3 Bucket Size thumbnail-5
World Brand 3Ton Articulated Mini Wheel Loader With 1.8m3 Bucket Size thumbnail-6
World Brand 3Ton Articulated Mini Wheel Loader With 1.8m3 Bucket Size photo-1

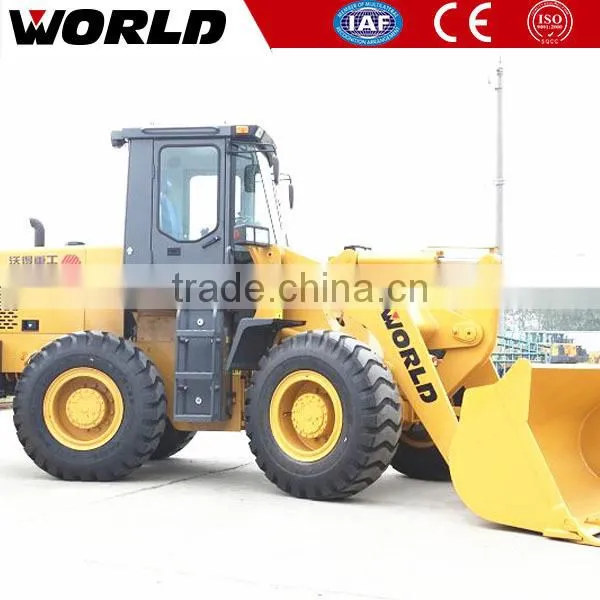

World Brand 3Ton Articulated Mini Wheel Loader With 1.8m3 Bucket Size photo-2

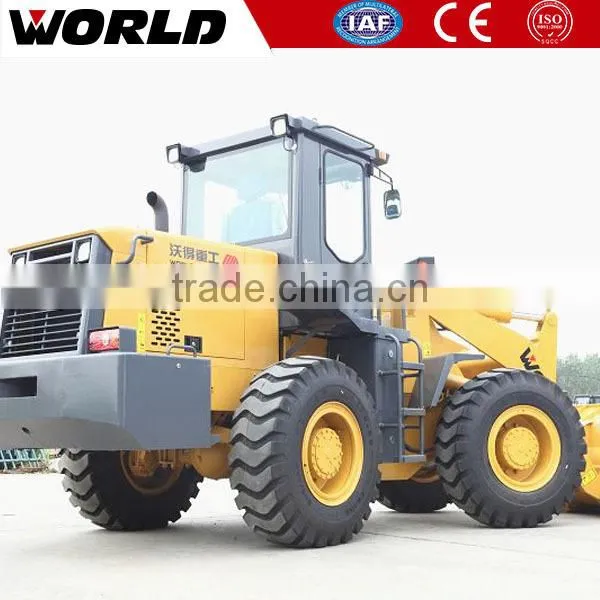

World Brand 3Ton Articulated Mini Wheel Loader With 1.8m3 Bucket Size photo-3
World Brand 3Ton Articulated Mini Wheel Loader With 1.8m3 Bucket Size photo-4

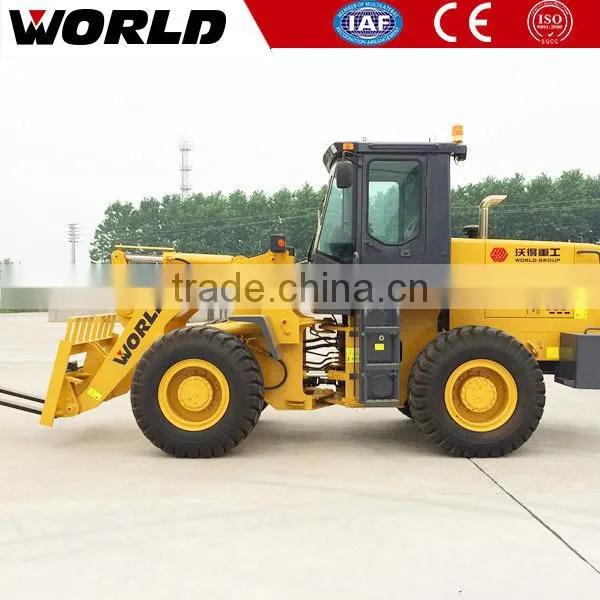

World Brand 3Ton Articulated Mini Wheel Loader With 1.8m3 Bucket Size photo-5

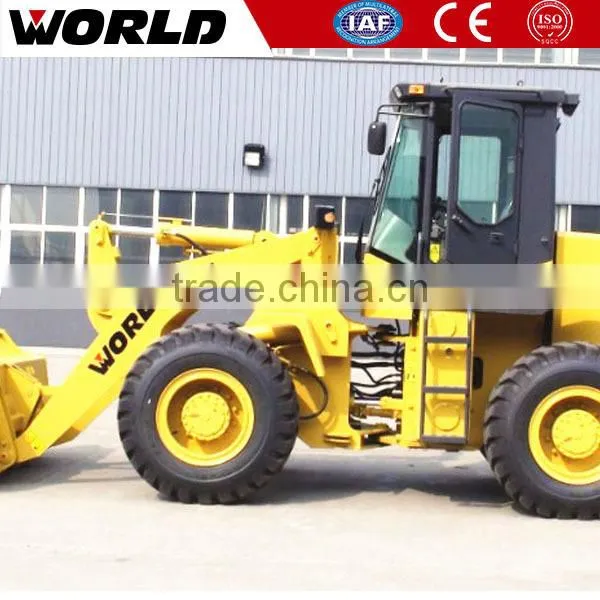

World Brand 3Ton Articulated Mini Wheel Loader With 1.8m3 Bucket Size photo-6
US$ 23,000 - 26,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
WORLD
Model Number:
W136
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name WORLD
Model Number W136
Place of Origin Jiangsu, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 6970x2460x3286mm
Rated Load 3200kg
Certification ISO, CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

World Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket size



Main features of front end laoder:

-Cummins or Duetz engine

-Rated load 3200kg

-Bucket 1.8m3 or 2.2m3

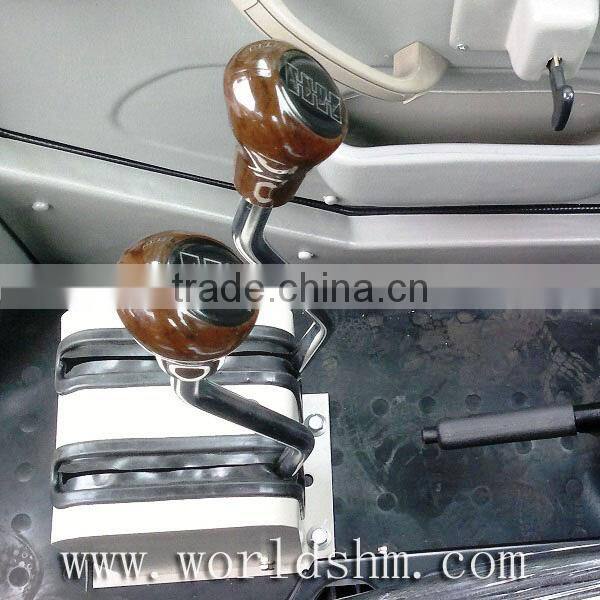

-A/C,Joystick control

-Operating weight 10,000kg

Terms&Conditions:

-T/T or L/C payment

-Delivery in 30days

-Disassembled cabin and drive into container

-Warranty 12months

-Spare parts available



Specifications of World Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket size

Basic Data
Bucket Capacity1.8
Rated Load3200kg
Travelling Speed
Forward 1st0-10.8km/h
Forward 2nd0-32.5km/h
Reverse 1st:0-14.5km/h
Max. Traction97kN
Max. Break Out Force100kN
Min. Turning Radius (outside tires)5376mm
Max. Dumping Height3060mm
Max. Reach1008mm
Total Hydraulic Cycle Time≤10.3s
Full Bucket Lifting Time5.6s
Dimensions (LxWxH)6970x2460x3286mm
Min. Clearance Over Ground360mm
Operating Weight10,000kg

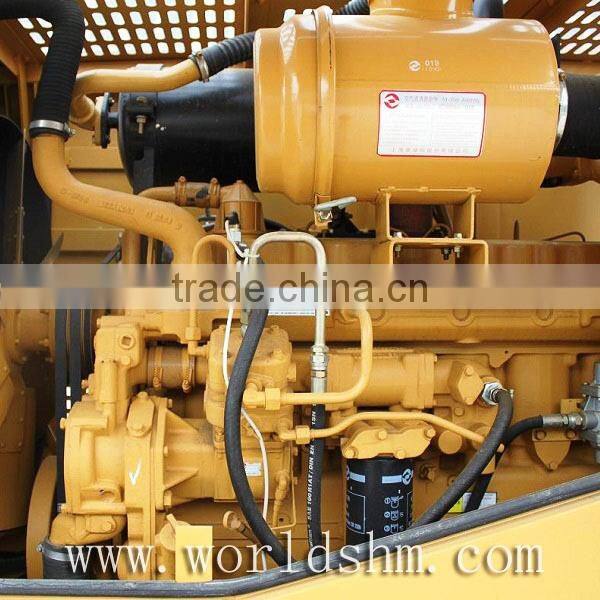

Diesel Engine
ModelCUMMINS 6BT5.9 or DUTEX or YUCHAI
TypeDirect injection, turbocharged, water cooling, 4 strokes, 6 cylinders
Rated Output97/92/92kW
Rated Speed2200rpm
Max. Torque860/860/908N.m

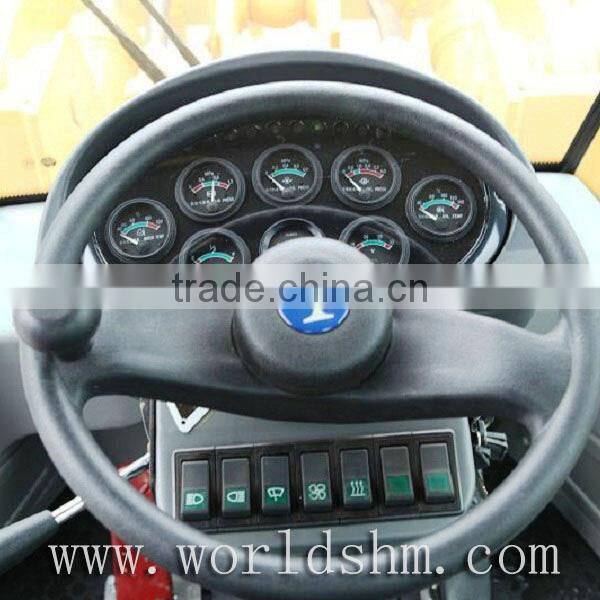

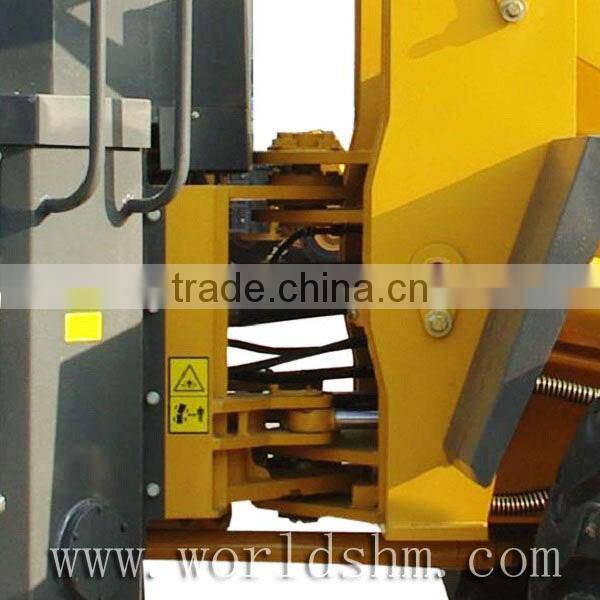

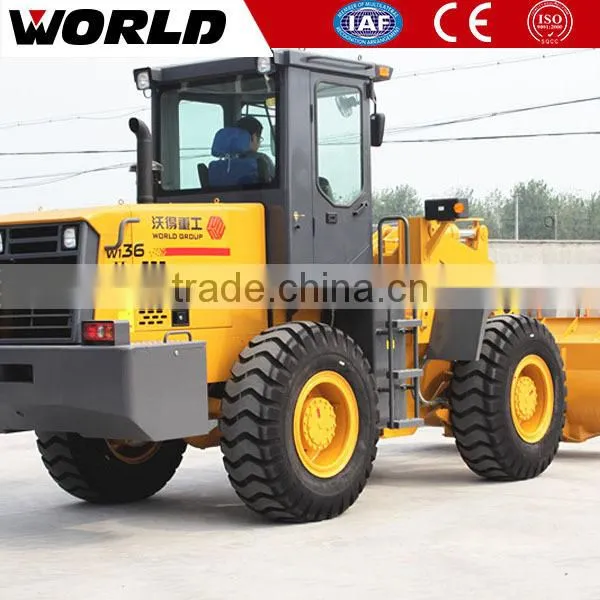

Photos of World Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket size

World Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket sizeWorld Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket size

World Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket size

World Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket size

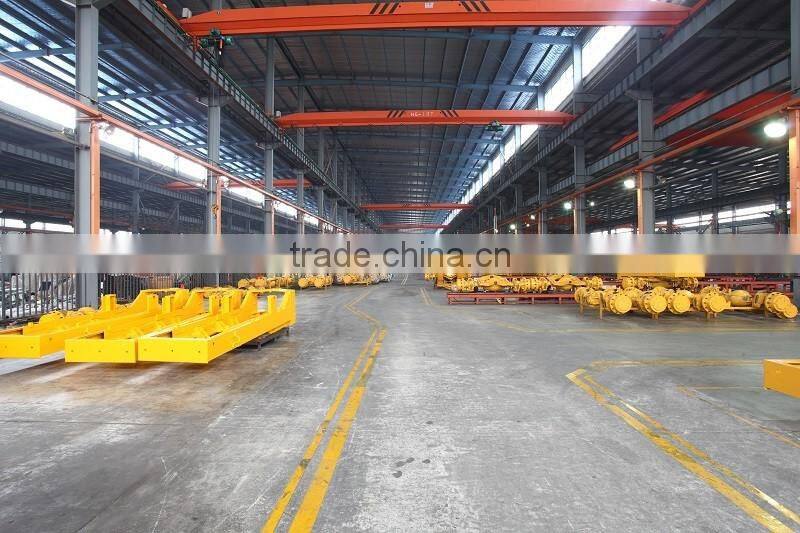

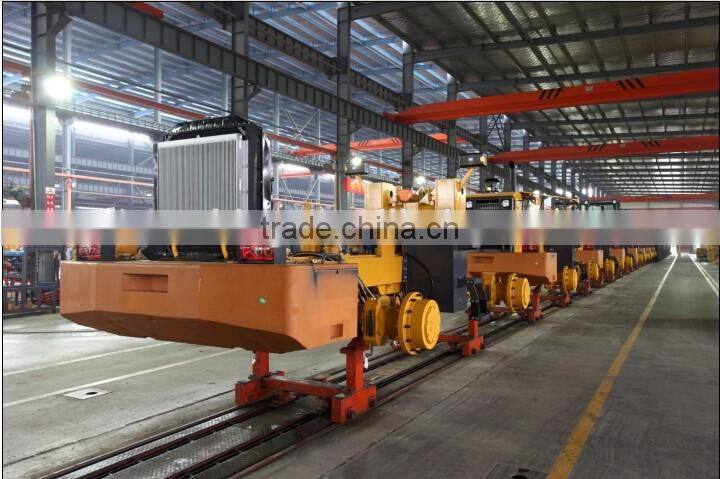

World Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket sizeOur FactoryWorld Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket size
World Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket sizeWorld Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket size

Our Customers

World Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket size

World Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket size

World Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket sizei fr

World Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket sizeo

Contact us

World Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket size

ANNIE CHEN



Shanghai Yingxin World Machinery Co., Ltd
12Floors, No.432 Huaihai Road West, Shanghai, China
Tel:86-21- 62828630, Fax: 86-21-62829970
Mobile/Whatsapp:86-18702503587
E-mail:sales3 @worldshm.com
Skype:Annie01017
Wechat:BZ756612640
nt e



 World Brand 3Ton articulated mini wheel loader with 1.8m3 Bucket size
